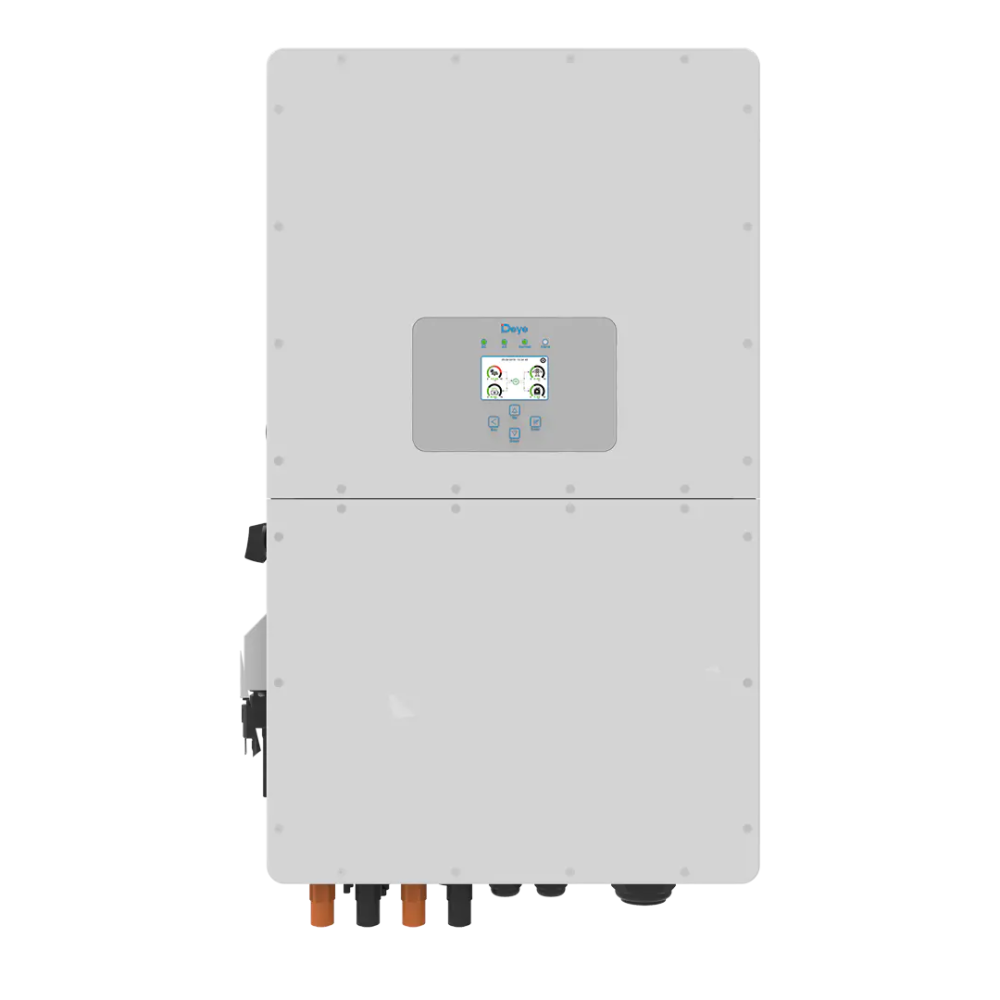

Deye SUN-50K-SG01HP3-EU-BM4

The three-phase hybrid inverter Deye SUN-50K-SG01HP3-EU-BM4 is a modern energy management solution, ideal for both new installations and upgrades of existing PV systems. With the ability to connect to both DC and AC power and operate in on-grid and off-grid modes, the system offers maximum flexibility. It supports up to 16 units in parallel and multiple batteries, allowing for easy expansion. A high-voltage battery, charging/discharging current up to 100A, and 6 programmable operating periods enhance efficiency and control. Additionally, cooperation with a diesel generator is supported.​

Key features of the Deye SUN-50K-SG01HP3-EU-BM4:

100% unbalanced output in each phase – flexibility and energy independence​

Ability to connect to DC and AC power – ideal for upgrading PV

Up to 16 units operating in parallel – scalability in grid-tied and off-grid operation​

Support for multiple batteries in parallel – increased capacity and safety​

Maximum charging/discharging current: 100A – high efficiency​

High-voltage battery – better performance and longer lifespan​

6 charging/discharging periods – full control over energy management​

Support for energy storage from a diesel generator – independence in all conditions​

Technical data of Deye SUN-50K-SG01HP3-EU-BM4:

Battery:

Type: lithium-ion / lead-acid​

Operating voltage: 200–700 V​

Maximum charging/discharging current: 2 × 37 A​

PV Input:

Maximum input power: 65,000 W​

Number of MPPTs: 4​

MPPT voltage range: 200–850 V​

Maximum PV input current: 4 × 36 A​

AC Output:

Nominal power: 50,000 W​

Maximum output power: 55,000 W​

Operating mode: on-grid and off-grid​

Maximum AC output current: 100 A​

Efficiency:

Maximum efficiency: 97.6%​

MPPT tracking efficiency: 99.9%​

General parameters:

Protection degree: IP65​

Dimensions: 560.5 × 837 × 319 mm​

Weight: 60 kg
