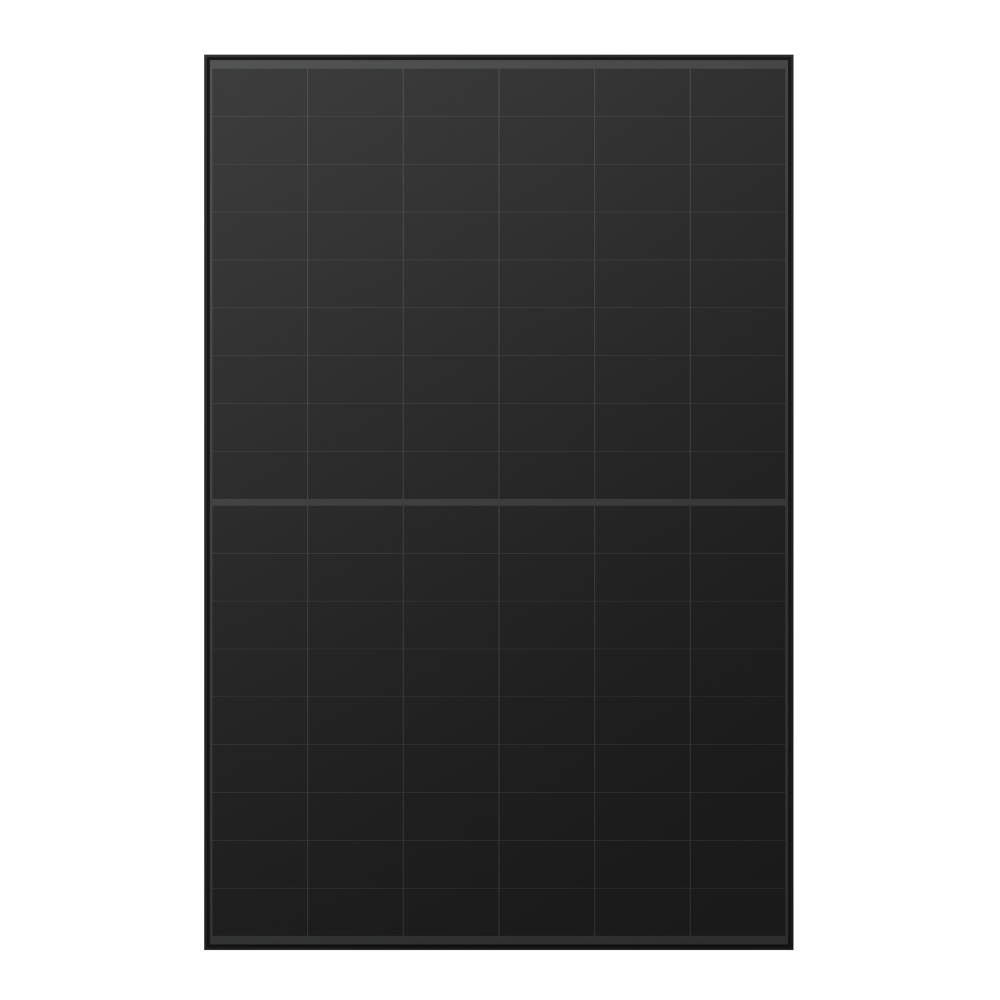

AIKO AMAH54Mb 445W FB
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | AIKO |
| Width | 1134 |
| Height | 1722 |
| Depth | 30 |
| Weight | 21.2 |
| Power | 445 |
| Country of origin | China |
| Frame color | full black |
| Type of support | monofacial |
| Technologies | N-Type ABC |
| Quantity per pallet | 36 |
| Quantity per container | 936 |
AIKO-A445-MAH54Mb (FB) is a 445 W photovoltaic module built with N-Type ABC technology, with an efficiency of 22.8%. The Full Black version guarantees a uniform look and high aesthetics of the installation. Thanks to a low temperature coefficient and low degradation, the panel provides stable energy yields. This solution is designed for rooftop and commercial PV systems where the combination of elegance and reliability matters.
Downloads
- Other
- Certificate of conformity LeTID AK 50634155 0001 EN
File size: 2 MB
- Datasheet AIKO AMAH54Mb 445W FB EN
File size: 3 MB
- Declaration of Conformity AIKO AMAH54Mb 445W FB EN
File size: 553 KB
- Installation Manual AIKO AMAH54Mb 445W FB 2506V19 EN
File size: 5 MB
- Warranty AIKO AMAH54Mb 445W FB EN
File size: 205 KB
-
Variants
Product description
AIKO-A445-MAH54Mb (FB) – 445 W Photovoltaic Module (N-Type ABC, Mono-Glass, Full Black)
AIKO-A445-MAH54Mb (FB) is a panel from the Neostar series using N-Type ABC technology, featuring 445 W power and 22.8% efficiency. The Mono-Glass construction in an aesthetic Full Black execution ensures mechanical durability and an elegant appearance of the PV installation. With low degradation (≤1% in the 1st year, ≤0.35% annually) and an extended 30-year power warranty, the module proves to be a secure investment for B2B projects and rooftop installations.
Applications
- Residential and commercial rooftop installations
- Industrial systems requiring full aesthetics (Full Black)
- PV farms focused on long lifetime and low LCOE
- Projects requiring high efficiency in compact dimensions
Main Advantages
- Power: 445 W, efficiency: 22.8%
- N-Type ABC cells – low degradation, no LID effect
- Mono-Glass construction in the Full Black version
- Mechanical resistance: 5400 Pa (front), 2400 Pa (rear)
- Warranty: 15 years product, 30 years linear power
Technical Parameters
| Parameter | Value |
|---|---|
| Maximum power (Pmax, STC) | 445 W |
| Open-circuit voltage (Voc) | 40.59 V |
| Voltage at max power point (Vmp) | 33.60 V |
| Short-circuit current (Isc) | 14.02 A |
| Current at max power point (Imp) | 13.25 A |
| Module efficiency | 22.8% |
| Power at NOCT | 335 W |
| Open-circuit voltage (NOCT) | 38.33 V |
| Voltage at max power point (NOCT) | 31.73 V |
| Short-circuit current (NOCT) | 11.33 A |
| Current at max power point (NOCT) | 10.57 A |
Offer for Your Project
Planning a PV installation with Full Black modules? Request a B2B offer – we provide technical consulting, project support, and attractive cooperation terms.
