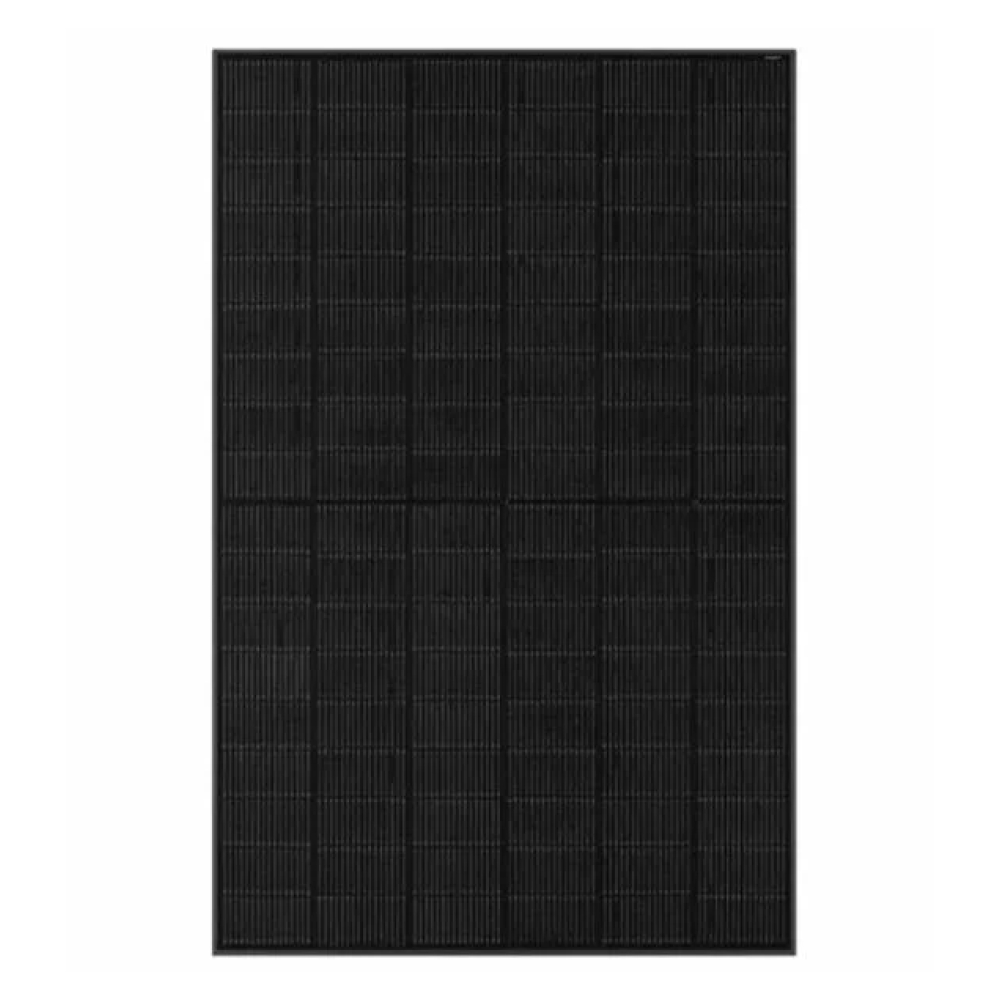

JA Solar JAM60D41 500/LB FB

Product code: PV.jasolar.fb.500.lb

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	JASOLAR
Width	1134
Height	1953
Depth	30
Weight	27.3
Warranty	12
Power	500
Percentage efficiency	22.6
Efficiency warranty	30
Country of origin	China
CN code number	85414300
Frame color	full black
Type of support	bifacial
Technologies	N-Type
Quantity per pallet	36
Quantity per container	864

JA Solar JAM60D41-500/LB 500 W is a bifacial Full Black photovoltaic module from the DeepBlue 4.0 Pro series, featuring n-type technology and a double-glass design. The panel offers 500 W nominal power, 22.6% efficiency, and electrical parameters of Vmp 36.91 V and Imp 13.55 A. Its bifacial design with a bifaciality of 80% ±10% enables the module to utilize solar radiation reaching the rear side as well.

Other
- Datasheet JA Solar JAM60D41 500/LB EN
  File size: 320 KB

Download as PDF

Product description

JA Solar JAM60D41-500/LB 500 W – bifacial Full Black n-type double-glass module

Product description

JA Solar JAM60D41-500/LB is a bifacial Full Black photovoltaic module from the DeepBlue 4.0 Pro series, featuring monocrystalline n-type cells and a double-glass design. The model delivers a nominal power of 500 W and an efficiency of 22.6%, while its bifaciality reaches 80% ±10%. The design with 120 cells, a black frame and 2.0 mm glass on both sides combines high electrical performance with aesthetics suitable for modern PV installations.

Applications

Photovoltaic installations on residential and commercial building roofs
PV systems using bifacial modules to generate additional energy from the rear side
Installations where high efficiency and high power per unit area are important
Projects requiring Full Black modules with a glass-glass design

Key features

500 W nominal power and 22.6% module efficiency
Monocrystalline n-type cells with bifacial technology
Double-glass design with 2.0 mm front and rear glass
Bifaciality of 80% ±10%
Power tolerance from 0 to +3%
Pmax temperature coefficient of -0.290%/°C
Maximum system voltage of 1500 V DC
IP68 junction box with 3 diodes
Maximum static load of 5400 Pa on the front and 2400 Pa on the rear
30-year linear power warranty

Technical specifications

Parameter	Value
Model	JAM60D41-500/LB
Series	DeepBlue 4.0 Pro
Module type	n-type, bifacial, double glass, Full Black
Nominal power (Pmax)	500 W
Module efficiency	22.6%
Open-circuit voltage (Voc)	43.85 V
Voltage at maximum power point (Vmp)	36.91 V
Short-circuit current (Isc)	14.42 A
Current at maximum power point (Imp)	13.55 A
Power tolerance	0 to +3%
Isc temperature coefficient	+0.045%/°C
Voc temperature coefficient	-0.250%/°C
Pmax temperature coefficient	-0.290%/°C
Number of cells	120 (6 × 20)
Bifaciality	80% ±10%
Maximum system voltage	1500 V DC
Maximum series fuse rating	30 A
Operating temperature range	-40°C to +85°C
NOCT	45 ±2°C
Maximum static load – front	5400 Pa
Maximum static load – rear	2400 Pa
Dimensions	1953 × 1134 × 30 mm
Weight	27.3 kg
Front / rear glass thickness	2.0 / 2.0 mm
Cable cross-section	4 mm² (IEC) / 12 AWG (UL)
Junction box	IP68, 3 diodes
Connectors	QC 4.10-351 / MC4-EVO2A
Safety class	Class II

Model comparison

JA Solar JAM60D41-500/LB occupies a middle position in the JAM60D41/LB series, which includes variants ranging from 485 W to 510 W. Compared with the 485 W, 490 W and 495 W models, it offers higher nominal power and an efficiency of 22.6%, while the 505 W and 510 W versions increase efficiency to 22.8% and 23.0%, respectively. All variants share the same n-type double-glass design, dimensions of 1953 × 1134 × 30 mm and bifacial module architecture, making the 500 W version an intermediate option between the lower- and highest-power models available in this series.

B2B offer

JA Solar JAM60D41-500/LB 500 W is a solution for installers, distributors and companies carrying out professional photovoltaic projects. Contact us to receive a B2B offer, check module availability and obtain purchasing terms for larger quantities of JA Solar panels.
