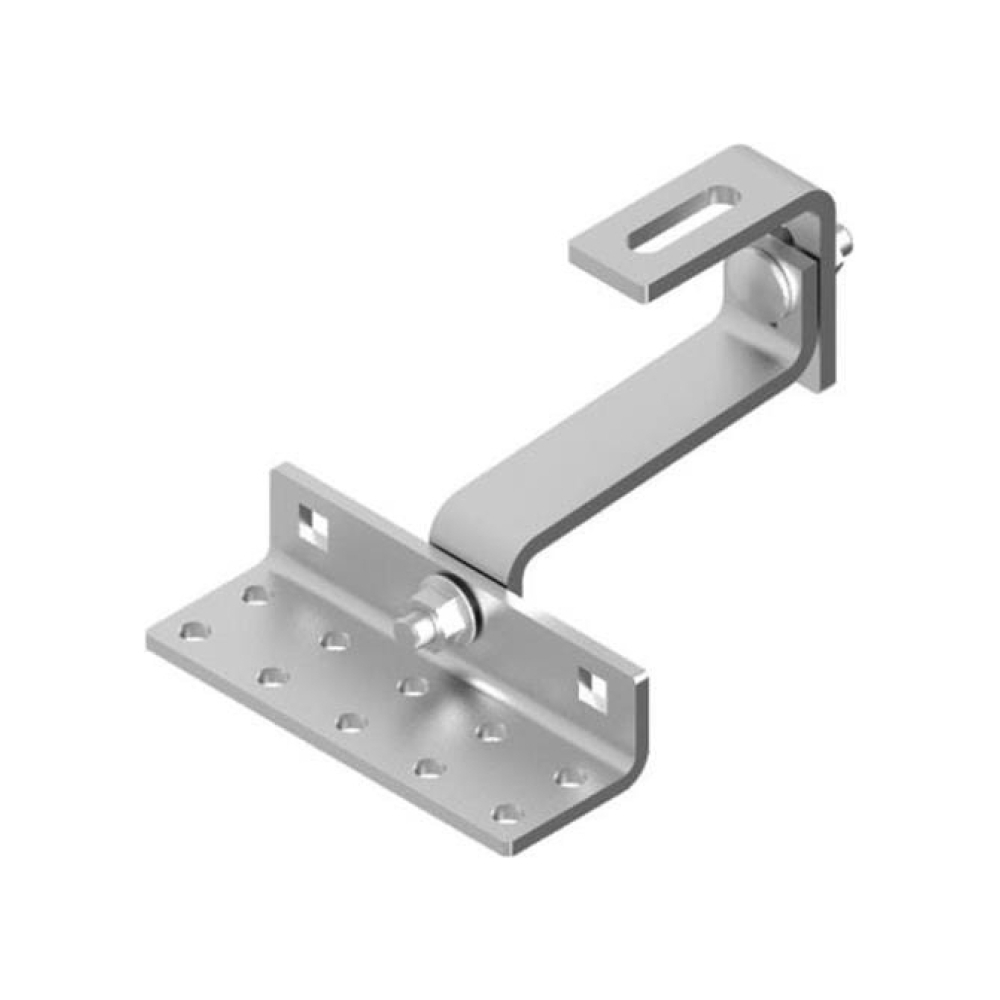

Roof hook with double adjustment Vario L=120 T02 Magnelis
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Weight | 0.8 |
| Width | 120 |
| Height | 140 |
Hook 120 with double adjustment VARIO is a durable mounting component for tiled roofs, designed for photovoltaic installations. Made of high-quality galvanized steel with a Magnelis coating, it ensures durability, corrosion resistance, and precise alignment thanks to its double adjustment (L: 120–170 mm, H: 70–95 mm).
Variants
Product description
Hook 120 with double adjustment VARIO – PV mounting for tiled roofs
Product description
The Hook 120 VARIO is designed for safe and durable installation of photovoltaic systems on tiled roofs. Made from 3.8–4 mm thick steel sheet with a Magnelis coating, it provides high corrosion resistance and protection against weather conditions. The double adjustment range (length 120–170 mm, height 70–95 mm) allows perfect adaptation to different roof types. The component is manufactured according to PN-EN 10143:2006, PN-EN 10346:2015, and PN-EN 100-2 standards, ensuring the durability and safety of PV structures.
Applications
- Photovoltaic systems on tiled roofs
- Residential and commercial installations
- Aluminum and steel structures
- Systems with height and length adjustment
- Mounting elements compatible with popular PV profiles
Main advantages
- Double adjustment – precise roof structure alignment
- High-quality galvanized steel with Magnelis coating
- Corrosion resistance and weather durability
- Compliance with PN-EN 10143, PN-EN 10346, PN-EN 100-2 standards
- Stable PV module mounting for tiled roofs
- Easy and quick installation with standard M10x25 bolt
Technical data
| Parameter | Value |
|---|---|
| Dimensions | 14 cm × 12 cm |
| Adjustment | L: 120–170 mm, H: 70–95 mm |
| Bolt | M10x25 |
| Mounting hole | 30 × 10.5 mm |
| Sheet thickness | 3.8–4 mm with Magnelis coating |
| Quality standards | PN-EN 10143:2006, PN-EN 10346:2015, PN-EN 100-2 |
B2B offer
We offer the Hook 120 VARIO for B2B sales – the perfect choice for PV installation companies and distributors. Contact us for wholesale offers or technical advice regarding roof mounting structures.
