Moduł WLAN-FE Huawei Dongle

AF.antenka.huawei.02
Moduł WLAN-FE Huawei Dongle
Manufacturer HUAWEI

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

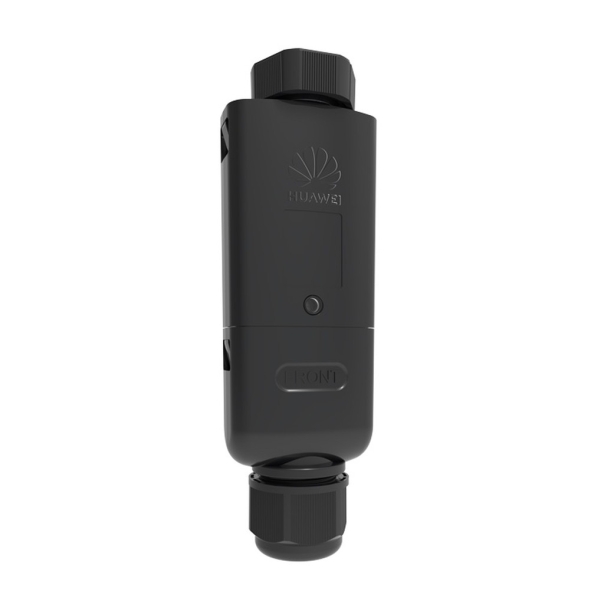

Smart Dongle (hereinafter referred to as "Dongle") is an additional module for intelligent communication, which cooperates with Huawei inverters. It enables wireless communication between inverters and the management system via WLAN and Fast Ethernet (FE) network. If you connect multiple inverters in cascade, you should use either the Dongle key or the SmartLogger device for network operation. It's not possible to utilize both connection methods simultaneously.

Downloads

Download as PDF

Variants

Product description

Smart Dongle (hereinafter referred to as "Dongle") is an additional module for intelligent communication, which cooperates with Huawei inverters. It enables wireless communication between inverters and the management system via WLAN and Fast Ethernet (FE) network. If you connect multiple inverters in cascade, you should use either the Dongle key or the SmartLogger device for network operation. It's not possible to utilize both connection methods simultaneously. Advantages of Smart Dongle (v SDongleA-05): WLAN and Fast Ethernet (FE) communication Support for an external manufacturer's monitoring system "Plug & Play" - Automatic connection resumption support Technical specifications of Huawei Dongle WLAN-FE module: Maximum supported device count - 10 Maximum supported inverter count - 10 Connection interface - USB Mounting - "Plug & Play" Indicator - LED indicator Dimensions (Width * Height * Depth) - 130 x 48 x 33 mm Weight - 90 g Protection rating - IP65 (weatherproof housing for increased stability) Power consumption (standard) - 2.5 W
