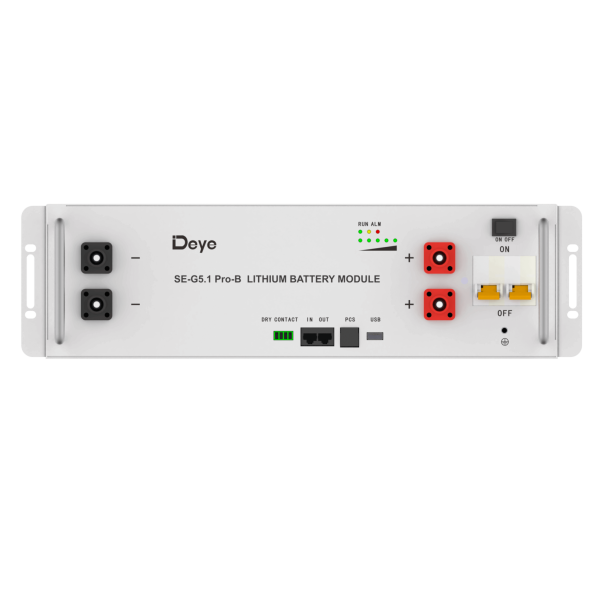

Deye SE-G5.1 Pro-B LV Battery 5.1 kW

ME.Battery.SE-G5.1 Pro-B LV Battery 5.1 kW
Deye SE-G5.1 Pro-B LV Battery 5.1 kW
Manufacturer DEYE

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Deye SE-G5.1 Pro-B LV is a versatile and advanced low-voltage energy storage system that ensures reliable energy storage, ideal for home and small commercial energy systems.

Download as PDF

Variants

Product description



  • Model: SE-G5.1 Pro-B LV
  • Energy Capacity: 5.1 kW
  • Nominal Voltage: 48 V
  • Operating Voltage Range: 42-54 V
  • Maximum Charging Current: 100 A
  • Maximum Discharging Current: 100 A
  • Battery Type: Lithium-Ion (Li-Ion)
  • Efficiency: ≥ 95%
  • Lifespan: 10+ years with proper usage
  • Cycle Life: > 6000 cycles at 80% Depth of Discharge (DOD)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Relative Humidity: 5% - 95% (non-condensing)
  • Dimensions (L x W x H): 442 mm x 420 mm x 132 mm
  • Weight: 50 kg
  • Communication Interface: CAN, RS485
  • Protection Level: IP55
  • Certifications: CE, UN38.3, MSDS, IEC62619
  • Protections: Overcharge protection, over-discharge protection, overload protection, overheat protection, short-circuit protection
