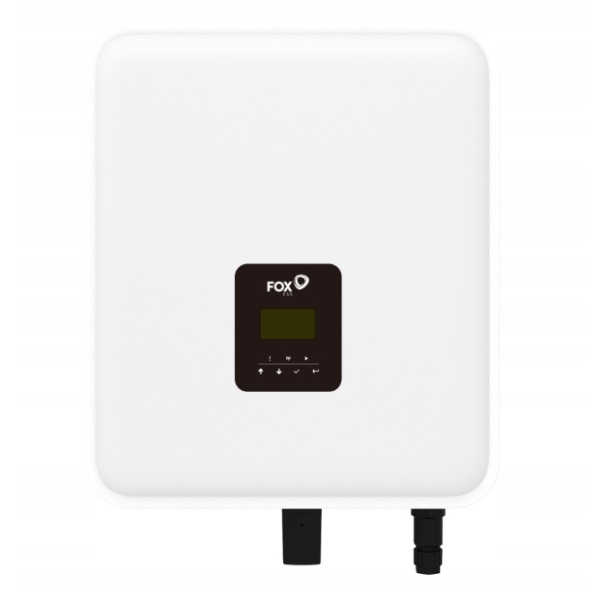

FoxESS H3-5.0-E - hybrid 5kW

F.FOX.3F.H.wifi.00050-2MPPT.H3-5.0-E
FoxESS H3-5.0-E - hybrid 5kW
Manufacturer FOXESS

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer FOXESS
Inverter type Hybrid
Inverter phases 3
Max. AC power 5000
Max. DC power 8000
Output power 5000
Circuit breaker value 63
MPPT 2
Amperage 14
WIFI Tak
Ethernet No
Compatible energy storage Foxess
Compatible optimizers Tigo
Warranty 10
CN code number 85044085
Quantity per pallet 30
Country of origin China
Weight 45
Width 52
Height 45
Depth 20
The new generation of FoxESS H3-5.0-E inverters, available in both three-phase and single-phase versions, enables full utilization of the potential offered by energy storage systems. This solution is perfect for situations where the main goal is to increase self-consumption of energy at the point of production or to power all three phases (or, analogously, one phase) within the inverter's operating area. Combined with the EPS Box, BMS, and batteries, they create a complete energy storage system.

Downloads

Download as PDF

Variants

Product description

The new generation of FoxESS H3-5.0-E inverters, available in both three-phase and single-phase versions, enables full utilization of the potential offered by energy storage systems. This solution is perfect for situations where the main goal is to increase self-consumption of energy at the point of production or to power all three phases (or, analogously, one phase) within the inverter's operating area. Combined with the EPS Box, BMS, and batteries, they create a complete energy storage system.

Advantages of the three-phase hybrid inverter FoxESS H3-5.0-E:

Flexible configuration, ready for installation, easy expansion
A kit with high-voltage FoxESS batteries creates the most efficient combination
IP65 class Designed for installation in any environment
Supervise the operation of devices remotely using the website or mobile application
Technical data of the FoxESS H3-5.0-E hybrid inverter:
Maximum input power [W]: A: 4000 B: 4000
Maximum input current (input A / input B) [A]: 14 / 14
Maximum short-circuit current (input A / input B) [A]: 16 / 16
Battery Type: Lithium Iron Phosphate (LFP)
MPPT voltage range [Vdc]: 160 – 950
Starting voltage [V]: 160
Number of MPPT tracking points: 2
Series on MPPT: 1+ 1
Nominal AC power [W]: 5000
Nominal AC current [A]: 7.2 (per phase)
MMPT Efficiency: 99.00%
Maximum efficiency: 97.80%
Max. charging/discharging current [A]: 26
Dimensions (length x width x height) [mm]: 449 x 519 x 198
Weight [kg]: 28
Degree of protection: IP65
Topology: Transformerless
Warranty: 10 years
