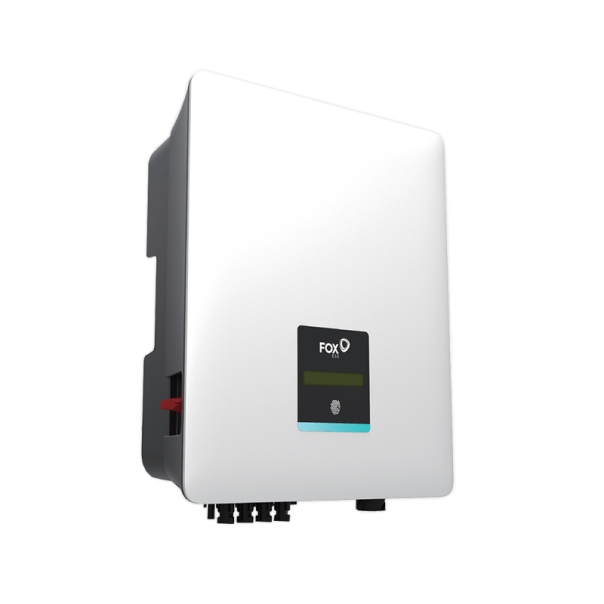

FoxESS T25 G3

F.FOX.3F.wifi.00250-G3
FoxESS T25 G3
Manufacturer FOXESS

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer FOXESS
Inverter type On-grid
Inverter phases 3
Max. AC power 25000
Max. DC power 32500
Output power 25000
Circuit breaker value 60
MPPT 2
Amperage 28
WIFI Tak
Ethernet No
Compatible optimizers Tigo
Warranty 12
CN code number 85044086
Quantity per pallet 14
Country of origin China
Weight 48
Width 38
Height 48
Depth 19
Inverters from the T series have been specially designed for three-phase residential installations and smaller commercial installations. They are characterized by unparalleled performance and versatility, allowing for extended periods of energy generation. Three-phase versions of inverters are available in power ranges from 3 kW to 25 kW. The FoxESS T25-G3 inverter is a three-phase device that guarantees maximum performance, reliability, and long lifespan for the user. Additionally, the FoxESS T25-G3 inverter stands out for its high-quality construction, thanks to the use of components from renowned brands during production. This significantly impacts the quality and durability of the inverter's operation. FoxESS products feature a unique radiator and cooling fins integrated into the housing, ensuring optimal contact with heat-generating elements. The cooling fins have a characteristic star shape, increasing the cooling surface area.

Downloads

Download as PDF

Variants

Product description

Inverters from the T series have been specially designed for three-phase residential installations and smaller commercial installations. They are characterized by unparalleled performance and versatility, allowing for extended periods of energy generation. Three-phase versions of inverters are available in power ranges from 3 kW to 25 kW.
The FoxESS T25-G3 inverter is a three-phase device that guarantees maximum performance, reliability, and long lifespan for the user. Additionally, the FoxESS T25-G3 inverter stands out for its high-quality construction, thanks to the use of components from renowned brands during production. This significantly impacts the quality and durability of the inverter's operation. FoxESS products feature a unique radiator and cooling fins integrated into the housing, ensuring optimal contact with heat-generating elements. The cooling fins have a characteristic star shape, increasing the cooling surface area.
Advantages of the FoxESS T25 G3 three-phase inverter / G3 SERIES:

Flexible configuration, ready for installation, easy expansion
A set with high-voltage FoxESS batteries creates the most efficient connection
IP65 class Designed for installation in any environment
Monitor device operation remotely using the website or mobile application
Technical data of the FoxESS T25 G3 three-phase inverter:
maximum recommended DC power [W]: 37500 W
maximum DC voltage [V]: 1100 V
nominal operating DC voltage [V]: 600 V
maximum input current (input A/input B) [A]: 28 / 28 A
maximum short-circuit current (input A/input B) [A]: 36.4 / 36.4 A
MPPT voltage range [Vdc]: 140 - 1000 V DC
start-up voltage [V]: 140 V
number of MPPT points: 2
number of inputs for MPPT: 2+2
rated output power [W]: 25000 W
maximum apparent AC power [VA]: 27500 VA
rated AC frequency [Hz]: 50/60, ±5
rated AC current [A]: 36.2 A
maximum AC current [A]: 39.9 A
MPPT efficiency [%]: 99.8%
maximum efficiency [%]: 98.6%
dimensions (WxHxD): 480 x 370 x 183.5 mm
weight: 20 kg
degree of protection: IP65
topology: transformerless
pollution degree: II
monitoring module: RS485, WIFI (standard) / GPRS (optional) / 4G (optional) / LAN (optional)
communication: energy meter, DRM, USB update, E-stop
display: LCD display, touch button, application, website

FoxESS is a global leader in the production of photovoltaic inverters. During the production process of energy storage solutions, it utilizes the latest standards, resulting in devices with advanced features and characterized by high performance and reliability during operation.
