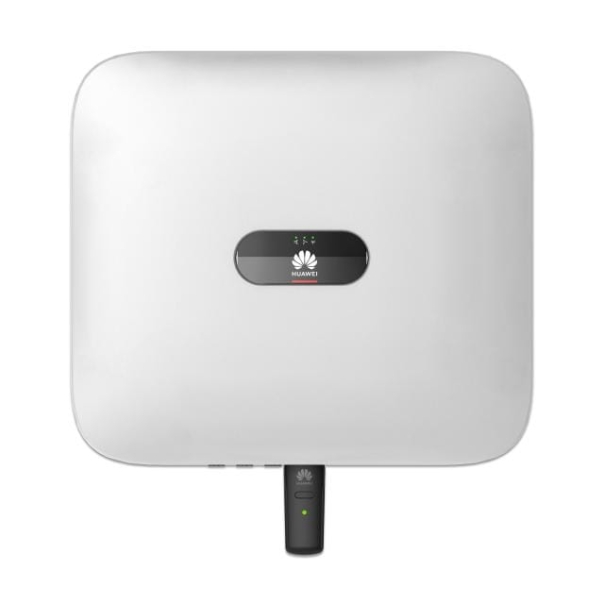

HUAWEI SUN 2000-4KTL-M1 HC

F.Huawei.3F.H.wifi.00040.M1.HC
HUAWEI SUN 2000-4KTL-M1 HC
Manufacturer HUAWEI

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer HUAWEI
Inverter type Hybrid
Inverter phases 3
Max. AC power 4000
Max. DC power 6000
Output power 4000
Circuit breaker value 16
MPPT 2
Amperage 13.5
WIFI Tak
Ethernet Yes
Compatible energy storage Huawei
Compatible optimizers Huawei
Warranty 10
CN code number 85044085
Quantity per pallet 20
Country of origin China
Weight 17
Width 47
Height 52
Depth 17
The HUAWEI SUN 2000-4KTL-M1 HC inverter is a three-phase photovoltaic chain inverter specifically designed to convert direct current energy generated by photovoltaic panel modules into alternating current and supply it to the electrical grid. Its applications include roof-mounted residential installations connected to the grid and small ground-mounted photovoltaic installations, also grid-connected. In a typical grid-connected installation consisting of photovoltaic chains, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and supplying electrical energy. The high-current version is characterized by a permissible higher input current on the DC side.

Downloads

Download as PDF

Variants

Product description

The HUAWEI SUN 2000-4KTL-M1 HC inverter is a three-phase photovoltaic chain inverter specifically designed to convert direct current energy generated by photovoltaic panel modules into alternating current and supply it to the electrical grid.

Its applications include roof-mounted residential installations connected to the grid and small ground-mounted photovoltaic installations, also grid-connected. In a typical grid-connected installation consisting of photovoltaic chains, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and supplying electrical energy.

The high-current version is characterized by a permissible higher input current on the DC side.

Advantages of the HUAWEI SUN 2000-4KTL-M1 HC inverter:

Electric arc protection supported by AI - Up to 30% higher energy yield thanks to optimizers
"Plug & Play" battery interface
WLAN, Fast Ethernet, 4G communication support
Technical data HUAWEI SUN 2000-4KTL-M1 HC:
Number of inverter phases: 3
Maximum efficiency: 98.3%
Recommended maximum PV power: 6000 Wp
Maximum input voltage: 1100 V
Starting voltage: 200 V
Working voltage range of PV input: 140 V - 980 V
Nominal input voltage: 600 V
Maximum working current on MPPT: 13.5 A
Max. short-circuit current on MPPT: 19.5 A
Number of MPPTs: 2
Number of inputs: 1
Working voltage range of DC: 600 - 980 Vdc
Maximum working DC current: 16.7 A
Maximum charging power: 10000 W
Rated output power: 4000 W
Maximum apparent power: 4400 VA
Rated output voltage: 220 V AC / 380 V AC, 230 V AC / 400 V AC, 3W/ N+PE
Maximum output current: 6.8 A
Weight (with mounting bracket): 17 kg
Dimensions (with mounting bracket): 525 x 470 x 146.5 mm
Degree of protection: IP65

The HUAWEI SUN 2000-4KTL-M1 HC inverter is an advanced solution that not only offers features to facilitate operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a reliable choice for photovoltaic installations.
