GoodWe GW6.5KN-ET PLUS+ ( 16A ) Hybrid Backup
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | GOODWE |
| Inverter type | Hybrid |
| Inverter phases | 3 |
| Max. AC power | 5000 |
| MPPT | 2 |
| WIFI | Yes |
| Ethernet | No |
| Compatible energy storage | Pylontech, Goodwe |
| Compatible optimizers | Tigo |
| Warranty | 5 |
| Quantity per pallet | 6 |
| Country of origin | China |
| Weight | 24 |
| Width | 41 |
| Height | 52 |
| Depth | 18 |

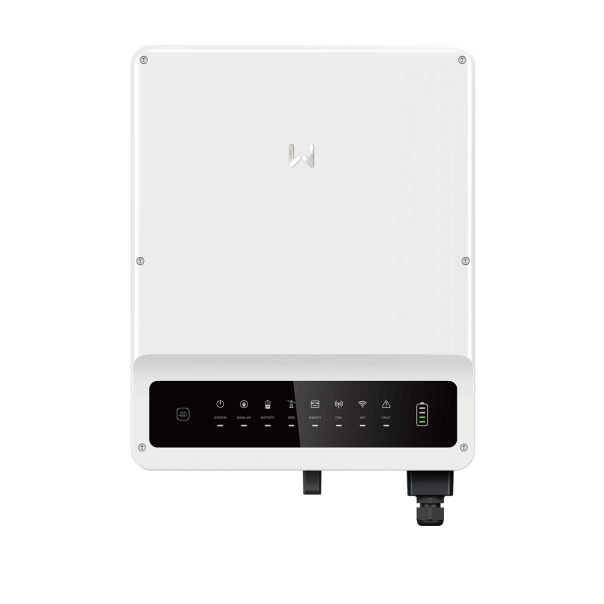

GoodWe GW6.5KN-ET PLUS+ Hybrid Inverter
The GoodWe GW6.5KN-ET PLUS+ hybrid inverter plays a key role as the central point of a photovoltaic installation, harmoniously working with an energy storage system. Its design focuses on three main objectives: maximizing output power, increasing self-consumption, and facilitating emergency power supply. Thanks to intelligent load control and a wide battery voltage range, the entire setup is extremely flexible, allowing adaptation to individual needs within the home ecosystem.
Downloads
- Other
- CERTYFIKAT.pdf
File size: 546 KB
- INSTRUKCJA-DE.pdf
File size: 12 MB
- INSTRUKCJA-EN.pdf
File size: 13 MB
- KARTA-KATALOGOWA-DE.pdf
File size: 602 KB
- KARTA-KATALOGOWA-EN.pdf
File size: 600 KB
- KARTA-KATALOGOWA-PL.pdf
File size: 599 KB
- KOMPATYBILNOŚĆ-EN.pdf
File size: 321 KB
- KOMPATYBILNOŚĆ-PL.pdf
File size: 329 KB
-
Variants
Product description
GoodWe GW6.5KN-ET PLUS+ Hybrid Inverter
The GoodWe GW6.5KN-ET PLUS+ hybrid inverter plays a key role as the central point of a photovoltaic installation, harmoniously working with an energy storage system. Its design focuses on three main objectives: maximizing output power, increasing self-consumption, and facilitating emergency power supply. Thanks to intelligent load control and a wide battery voltage range, the entire setup is extremely flexible, allowing adaptation to individual needs within the home ecosystem.
Combining the inverter with the GoodWe Lynx Home F energy storage system achieves a comprehensive and reliable solution.
Advantages of the GoodWe GW6.5KN-ET PLUS+ Inverter:
Fanless and quiet operation
Emergency power supply with seamless switching <10ms
Integration with smart home systems
Technical Data of the GoodWe GW6.5KN-ET PLUS+ Inverter:
Maximum Input Voltage (VOC): 1000VDC
MPPT Voltage Range: 200 - 850VDC
Nominal Input Voltage: 620VDC
Startup Voltage (VSTART): 180VDC
Maximum DC Input Current: 16 / 16ADC
Maximum Short Circuit Current: 21.2 / 21.2ADC
Maximum PV Module Power: 15kWp
Number of Input Pairs: 2
Number of MPPTs: 2
Nominal Output Power (W): 6500
Maximum Apparent Output Power to the Electrical Grid (VA): 7150
Maximum Apparent Power from the Electrical Grid (VA): 13000
Nominal Output Voltage (V): 400 / 380, 3L / N / PE
Output Voltage Range (V): 0 ~ 300
Nominal AC Grid Frequency (Hz): 50 / 60
AC Grid Frequency Range (Hz): 45 ~ 65
Maximum AC Output Current to the Electrical Grid (A): 10.8
Maximum AC Current from the Electrical Grid (A): 19.7
Power Factor Adjustment Range: ~1 (adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion (THD): <3%
DC Disconnect: Yes
Cooling: Convection
External Ports: RS485, CAN, WiFi
Display: LED indicators + app
Certificates: NC RfG
Enclosure Protection Rating: IP-66
Dimensions: 415 x 516 x 180mm
Weight: 24kg
Operating Temperature: -35 to +60ºC
Allowable Relative Humidity: 0 - 95% non-condensing
Maximum Efficiency: 98.2%
EU Efficiency: 97.5%
The GoodWe GW6.5KN-ET PLUS+ inverter provides a comprehensive solution for photovoltaic installations with energy storage systems, combining energy efficiency, configurational flexibility, and secure emergency power supply.
