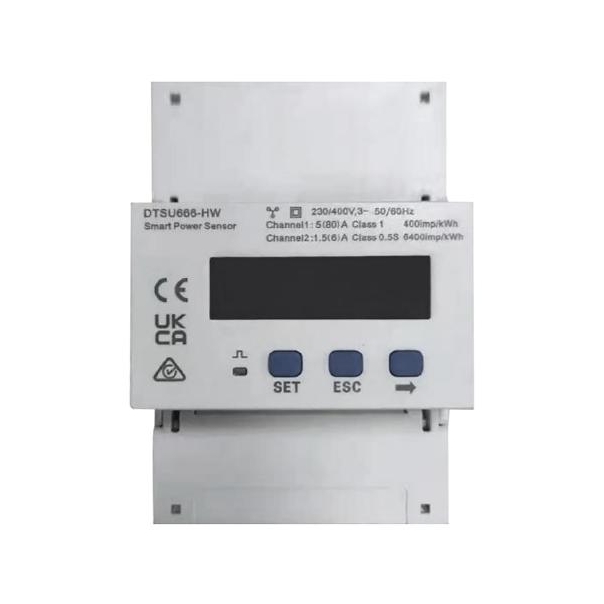

HUAWEI Smart Power Sensor DTSU666-HW 80A
AF.licznik.huawei.05
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
The HUAWEI Smart Power Sensor DTSU666-HW 80A meter is an intelligent power meter equipped with a set of transformers 250A/50mA. It is a simple and easy-to-use meter with an LCD display, facilitating intuitive settings and readings. This meter is of class 1 measurement, indicating its high accuracy.
Downloads
- Other
- Certyfikat-EN61010-EN.pdf
File size: 126 KB
- Certyfikat-EN61010-PL.pdf
File size: 924 KB
- Certyfikat-EN61010-UK-EN.pdf
File size: 130 KB
- Certyfikat-EN61326-EN.pdf
File size: 141 KB
- Certyfikat-EN61326-PL.pdf
File size: 846 KB
- Certyfikat-EN61326-UK-EN.pdf
File size: 146 KB
- Karta-katalogowa-DE.pdf
File size: 169 KB
- Karta-katalogowa-EN.pdf
File size: 111 KB
- Karta-katalogowa-PL.pdf
File size: 210 KB
- Warunki-gwarancji-UE-EN.pdf
File size: 182 KB
- Warunki-gwarancji-UE-PL.pdf
File size: 108 KB
-
Variants
Product description
The HUAWEI Smart Power Sensor DTSU666-HW 80A meter is an intelligent power meter equipped with a set of transformers 250A/50mA. It is a simple and easy-to-use meter with an LCD display, facilitating intuitive settings and readings. This meter is of class 1 measurement, indicating its high accuracy.
Advantages of the HUAWEI Smart Power Sensor DTSU666-HW 80A meter:
Class 1 measurement accuracy
LCD display, easy to set up and read
Total power consumption ≤ 1.5 W
Technical data of the three-phase HUAWEI Smart Power Sensor DTSU666-HW 80A meter:
Dimensions: 100x72x80mm
DIN35 rail mounting
Weight: 0.50 kg
Connection type: 3P4W/3P3W
Input voltage (phase voltage): 90 VAC - 500VAC
Power consumption: <1.5W
Line voltage: 90 V AC ~ 1000 V AC (> 500 with external transformers1)
Phase voltage: 52 ~ 577 V AC
Current: 0 ~ 80 A
Voltage accuracy: +- 0.5%
Current/power/energy accuracy: +- 1%
Frequency: +- 0.01 Hz
RS485 interface
