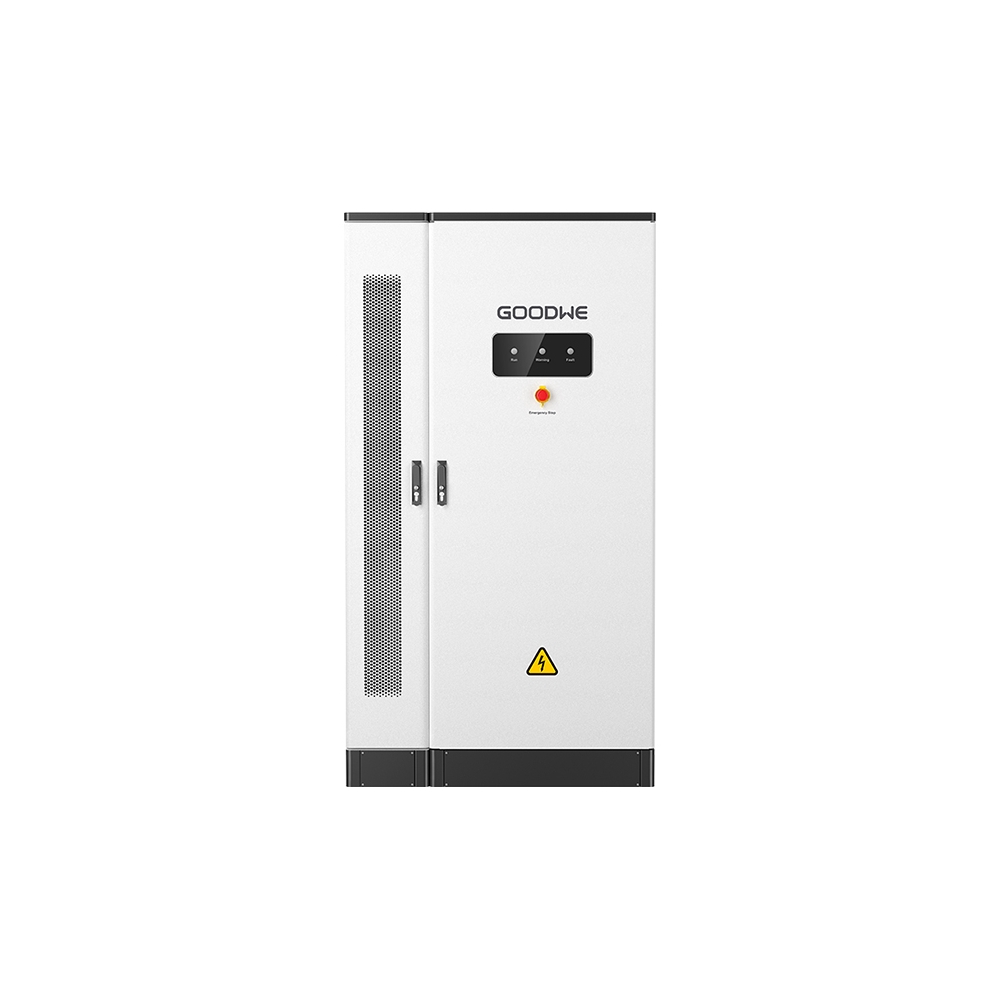

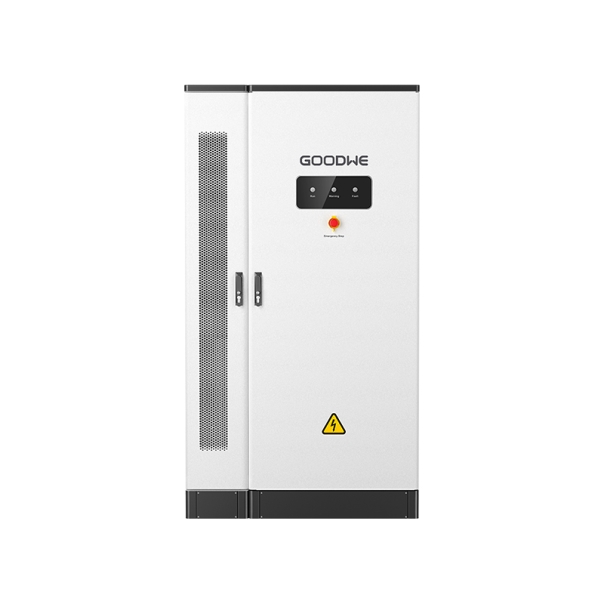

GoodWe HV Battery cabinet Lynx C - GW60KWH-D-10（Extension）
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
GoodWe GW60KWH-D-10 (Battery Section) – 60 kWh Modular Battery System
The GoodWe GW60KWH-D-10 in its battery-only version (without the AC cabinet) is a standalone 60 kWh energy storage unit designed for integration with GoodWe ET series hybrid inverters (15–30 kW). It's ideal for businesses that need flexible expansion of their energy system.
Downloads
- Other
- Betriebsanleitung GW60KWH-D-10 DE.pdf
File size: 35 MB
- Certificate IEC62619, IEC63056, 62477-1 GW60KWH-D-10 EN.pdf
File size: 2 MB
- Connection instructions LXC60kWh z ET15-30kW EN.pdf
File size: 9 MB
- Datasheet GW60KWH-D-10 EN.pdf
File size: 755 KB
- Datenblatt GW60KWH-D-10 DE.pdf
File size: 758 KB
- Datový list GW60KWH-D-10 CZ.pdf
File size: 721 KB
- Instrukcja obsługi GW60KWH-D-10 PL.pdf
File size: 35 MB
- Instrukcja szybkiej instalacji GW60KWH-D-10 PL.pdf
File size: 34 MB
- Karta katalogowa GW60KWH-D-10 PL.pdf
File size: 728 KB
- Návod k obsluze GW60KWH-D-10 CZ.pdf
File size: 35 MB
- Operating instructionsInstructions for the LXC60kWh in combinati
File size: 16 MB
- User manual GW60KWH-D-10 EN.pdf
File size: 36 MB
- Warranty LX C 60kWh EN.pdf
File size: 228 KB
- Warunki gwarancji LX C 60kWh EN.pdf
File size: 230 KB
- Zertifikat IEC62619, IEC63056, 62477-1 GW60KWH-D-10 DE.pdf
File size: 2 MB
-
Variants
Product description
GoodWe GW60KWH-D-10 (Battery Section) – 60 kWh Modular Battery System
The GoodWe GW60KWH-D-10 in its battery-only version (without the AC cabinet) is a standalone 60 kWh energy storage unit designed for integration with GoodWe ET series hybrid inverters (15–30 kW). It's ideal for businesses that need flexible expansion of their energy system.
Advantages of the GoodWe GW60KWH-D-10:
Modular design: Can be expanded up to 180 kWh by connecting three units in parallel.
Compatibility with GoodWe ET inverters: Ensures high system compatibility.
High efficiency and safety: Features LFP technology, thermal control, and a Perfluoro fire suppression system.
Compact size: Saves space while providing significant storage capacity.
Technical Data:
Usable Energy: 60 kWh
Cell Type: LFP (LiFePO₄)
Number of Battery Modules: 11
Nominal Voltage: 633.6 V
Operating Voltage Range: 554.4 – 712.8 V
Max. Charge/Discharge Current: 96 A
Cyclic Efficiency: 95%
Depth of Discharge: 100%
Lifespan: ≥5000 cycles
Operating Temperature: Charging 0–55°C / Discharging -25–55°C
Dimensions: 808 × 2050 × 1111.5 mm
Weight: Approx. 972 kg
Protection Rating: IP55
Communication: CAN
Cooling: Air conditioner
This battery variant of the GW60KWH-D-10 offers an excellent foundation for building larger energy storage systems, all while maintaining the highest standards of performance and safety in industrial and commercial environments.
