GoodWe HV Battery PCU cabinet Lynx C - LX C101-10

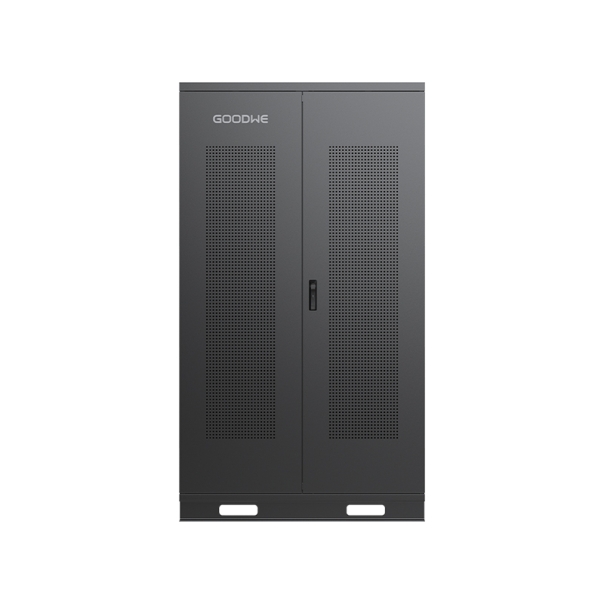

GoodWe HV Battery PCU Cabinet Lynx C – LX C101-10

High-Performance Energy Storage System for Commercial and Industrial Applications

The GoodWe Lynx C LX C101-10 is an advanced high-voltage battery system with a usable capacity of 101 kWh, designed for commercial and industrial (C&I) applications. This system is part of the renowned Lynx C series and is engineered for efficient energy management, reduced operational costs, and ensuring power continuity for businesses with high energy demands.

Thanks to its compatibility with GoodWe ETC/BTC hybrid inverters, the LX C101-10 forms a comprehensive energy storage system, enabling reliable off-grid operation, peak shaving, and increased self-consumption of energy from PV installations.

Key Advantages of the Lynx C LX C101-10:

Reduced Energy Costs: Maximizes self-consumption of PV energy and reduces peak demand charges.

Backup Power: Ensures reliable operation even during power outages.

Scalability up to 468 kWh: Allows for connecting up to three units in parallel.

Safe LFP (LiFePO₄) Technology: Stable and long-lasting cell chemistry.

Remote Monitoring and Updates: Full system control via the inverter.

High Compatibility with GoodWe Inverters: Perfect system matching.

Performance and Safety: IEC and UN38.3 transport certifications.

Technical Specifications – Lynx C LX C101-10:

Usable Capacity: 101.38 kWh

Battery Modules: 11 × LX C9.2-10 (each 9.21 kWh)

Cell Type: LFP (LiFePO₄)

Nominal Voltage: 422.4 V

Operating Voltage Range: 369.6 – 468.6 V

Nominal Charge/Discharge Power: 42.24 kW

Nominal Charge/Discharge Current: 100 A

Operating Temperature: Charging 0°C – 45°C / Discharging -20°C – 50°C

Relative Humidity: 0 – 95%

Maximum Operating Altitude: 2000 m above sea level

Communication: CAN + RS485

Dimensions (W × H × D): 1155 × 1650 × 730 mm

Weight: 1120 kg

Protection Rating: IP21

Certifications: IEC62619, IEC62040, IEC63056, UN38.3

Installation: Freestanding (floor-mounted)

Invest in Reliable and Scalable Energy Storage

The GoodWe Lynx C LX C101-10 is a future-proof solution for businesses looking to gain energy independence, secure operational continuity, and optimize their energy bills. Choose a system that grows with your business and meets the highest standards of efficiency and safety.
