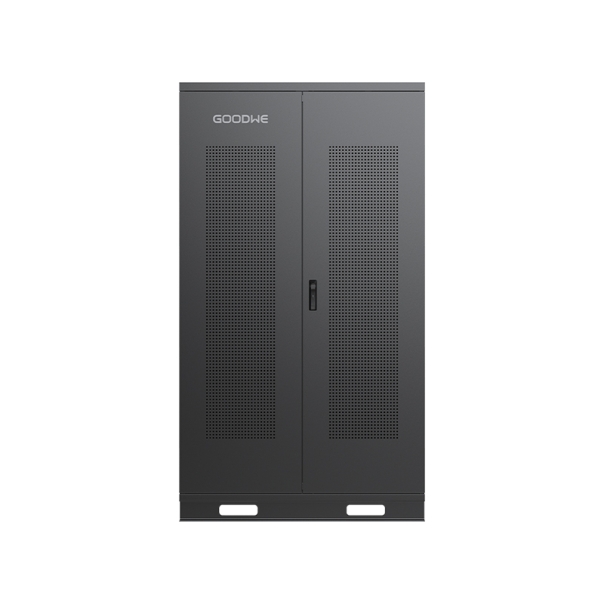

GoodWe HV Battery PCU Cabinet Lynx C – LX C120-10

Commercial Energy Storage System for Businesses and Industry

The GoodWe Lynx C LX C120-10 is a modern high-voltage battery system with a usable capacity of 119.81 kWh, specifically designed for commercial and industrial (C&I) applications. This unit is part of the flexible and scalable Lynx C series, making it ideal for companies looking to protect themselves against rising energy costs and power outages.

The system integrates seamlessly with GoodWe ETC and BTC hybrid inverters, creating a comprehensive, reliable energy management solution. This allows for increased self-consumption of energy from photovoltaic installations, reduction of peak energy charges, and ensuring stable operational conditions.

Advantages of the GoodWe Lynx C LX C120-10 System:

Reduced energy costs by maximizing the utilization of PV energy.

Backup power enabling continuous operation of devices and processes.

Expandable up to 468 kWh by connecting up to three systems in parallel.

LFP (LiFePO₄) technology ensuring high durability and safety.

Compatibility with GoodWe ETC/BTC inverters.

Remote monitoring and system updates via the inverter.

Compliance with international safety and transport standards.

Technical Specification – GoodWe Lynx C LX C120-10:

Usable Capacity: 119.81 kWh

Battery Module: LX C9.2-10 (9.21 kWh, 38.4 V)

Number of Modules: 13

Cell Type: LFP (LiFePO₄)

Nominal Voltage: 499.2 V

Operating Voltage Range: 436.8 – 553.8 V

Nominal Charge/Discharge Current: 100 A

Nominal Power: 49.92 kW

Operating Temperature Range:

Charging: 0°C to +45°C

Discharging: -20°C to +50°C

Relative Humidity: 0 – 95%

Maximum Installation Altitude: 2000 m above sea level

Communication: CAN, RS485

Dimensions (W × H × D): 1155 × 2065 × 730 mm

Weight: 1280 kg

Protection Rating: IP21

Mounting Method: Ground-mounted

Certifications:

Safety: IEC62619, IEC62040, IEC63056

EMC: IEC / EN61000-6-1 / 2 / 3 / 4

Transport: UN38.3

Effective Energy Storage for Your Business

The GoodWe Lynx C LX C120-10 is an efficient, safe, and scalable solution for any enterprise aiming to optimize energy consumption and secure technological processes. It's a system that grows with your business, providing flexibility, savings, and energy security.
