Deye SE-G5.1 Pro-B LV Battery 5.1 kW

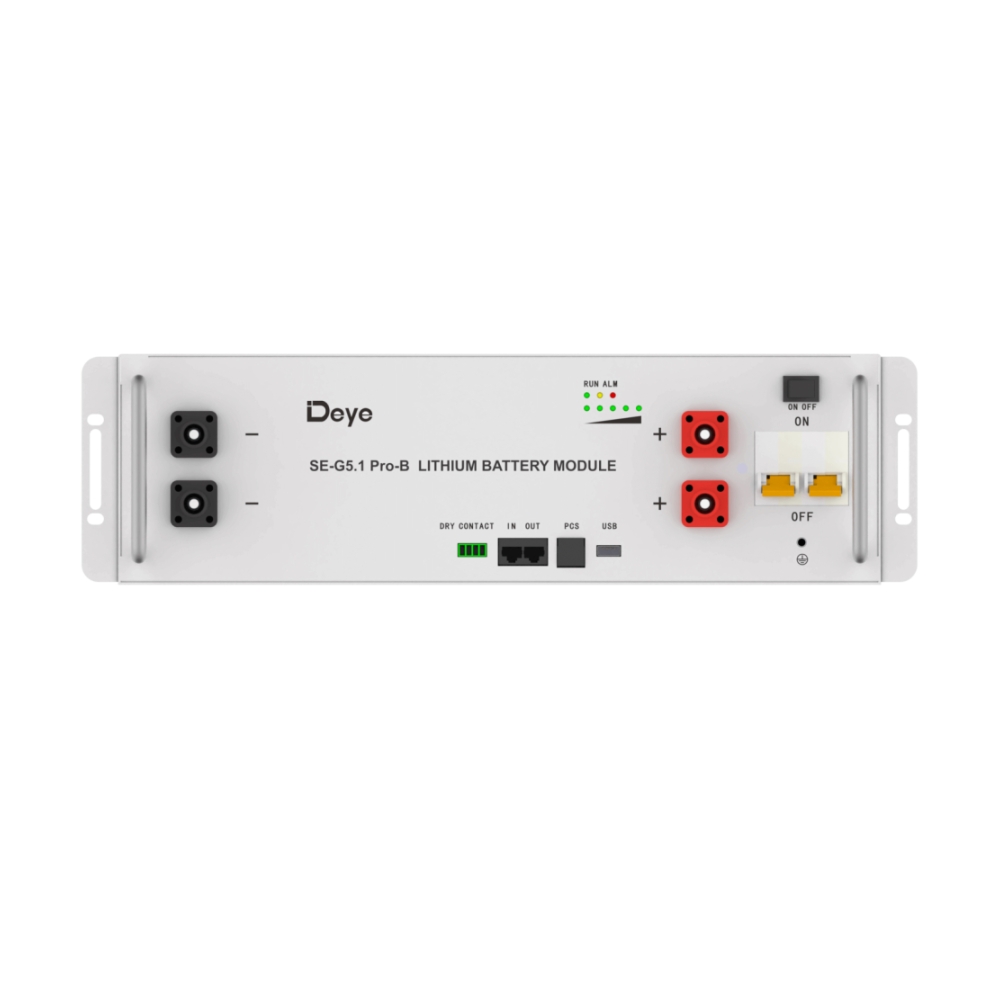

Deye SE-G5.1 Pro-B – 5.12 kWh LV LiFePO4 battery module

Product description

Deye SE-G5.1 Pro-B is a low-voltage energy storage module based on LiFePO4 technology, designed for ESS systems in residential and commercial applications. A single battery offers 5.12 kWh of energy, a capacity of 100 Ah and a nominal voltage of 51.2 V, operating within a range of 43.2–57.6 V. The recommended charging and discharging current is 50 A, the maximum is 100 A, while for 2 minutes at 25°C the device can operate with a peak current of 150 A. The module supports CAN2.0 and RS485 communication and can be installed on a wall, on the floor or in a standard 19" rack cabinet. The design allows up to 64 units to be connected in parallel, enabling the construction of a system with a capacity of up to 327 kWh, while the recommended depth of discharge is 90%.

Application

• residential energy storage systems operating with photovoltaic installations,
• low-voltage hybrid systems requiring a 5.12 kWh battery,
• commercial ESS systems with the possibility of gradual capacity expansion,
• installations requiring wall, floor or standard 19" rack mounting,
• projects using CAN2.0 or RS485 communication.

Key features

• nominal energy: 5.12 kWh,
• cell technology: LiFePO4,
• nominal capacity: 100 Ah,
• nominal voltage: 51.2 V,
• operating voltage range: 43.2–57.6 V,
• maximum charging / discharging current: 100 A,
• peak current: 150 A for 2 min at 25°C,
• scalability up to 64 modules in parallel / 327 kWh,
• recommended depth of discharge: 90%,
• CAN2.0 / RS485 communication and cycle life of ≥6000 cycles.

Technical parameters

Model comparison

The datasheet presents SE-G5.1 Pro-B as the common battery module for several installation variants of the Deye Spring SE Series system. The module itself retains the parameters 5.12 kWh / 51.2 V / 100 Ah, while the manufacturer shows different ways of integrating it, including SE-G5.1-Pro-B-Ultra, SE-G5.1-Pro-B-Cabinet and SE-G5.1-Pro-B-BC. The differences mainly concern the enclosure, mounting method and battery installation options, while SE-G5.1 Pro-B remains the basic energy storage module. Thanks to the possibility of connecting multiple units in parallel, the system capacity can be increased without changing the basic battery type.

B2B offer

Deye SE-G5.1 Pro-B is an LV module designed for building scalable Deye energy storage systems. Contact GVOLT for a B2B quotation and to select the number of batteries, a compatible inverter and the appropriate system mounting configuration.
