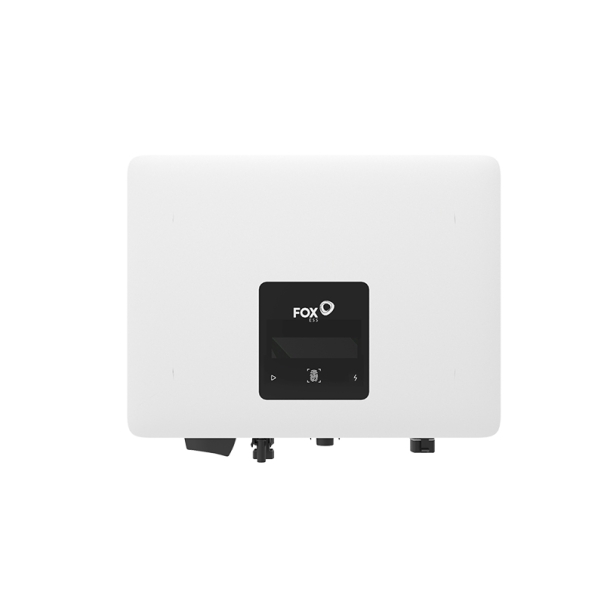

FoxESS S2500

F.FOX.1F.wifi.00025-1MPPT(1)
FoxESS S2500
Manufacturer FOXESS

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer FOXESS
Inverter type On-grid
Inverter phases 1
Max. AC power 2500
Max. DC power 3750
Output power 2500
Circuit breaker value 16
MPPT 1
Amperage 12.5
WIFI Tak
Ethernet Yes
Compatible optimizers Tigo
Warranty 12
CN code number 85044085
Quantity per pallet 50
Country of origin China
Weight 8
Width 34
Height 35
Depth 12
FoxESS S2500 presents a range of small and compact single-phase inverters with a single maximum power point tracking (MPPT) unmatched power and efficiency. The S series stands out with an ultra-low start-up voltage, guaranteeing maximum efficiency in harnessing solar energy. Advantages of the single-phase inverter FoxESS S2500: Low start-up voltage, wide voltage range, maximum efficiency of 97.4%. Fully optimized for expansion with FoxESS energy storage systems. IP65 protection - Designed to work with maximum flexibility. Suitable for outdoor installation. System monitoring via website or smartphone application provides full device control even when away from home.

Downloads

Download as PDF

Variants

Product description

FoxESS S2500 presents a range of small and compact single-phase inverters with a single maximum power point tracking (MPPT) unmatched power and efficiency. The S series stands out with an ultra-low start-up voltage, guaranteeing maximum efficiency in harnessing solar energy.

Advantages of the single-phase inverter FoxESS S2500:

Low start-up voltage, wide voltage range, maximum efficiency of 97.4%.
Fully optimized for expansion with FoxESS energy storage systems.
IP65 protection - Designed to work with maximum flexibility. Suitable for outdoor installation.
System monitoring via website or smartphone application provides full device control even when away from home.
Technical data of FoxESS S2500:
Maximum recommended DC power [W]: 3750
Maximum input current [A]: 12.5
Maximum short-circuit current [A]: 15
MPPT voltage range [Vdc]: 50 – 480
Start-up voltage [V]: 60
Number of MPPT tracking points: 1
MPPT series: 1
Nominal AC power [W]: 2500
Nominal AC current [A]: 10.9
MMPT efficiency: 99.00%
Maximum efficiency: 97.40%
Dimensions (height x width x depth) [mm]: 334350115
Weight [kg]: 7.8
Protection rating: IP65
Topology: Transformerless
Warranty: 12 years

Single-phase FoxESS inverters are characterized by the use of components from renowned global manufacturers, significantly increasing the durability of our products. They provide maximum performance and long life, surpassing the competition by hundreds of watthours.
