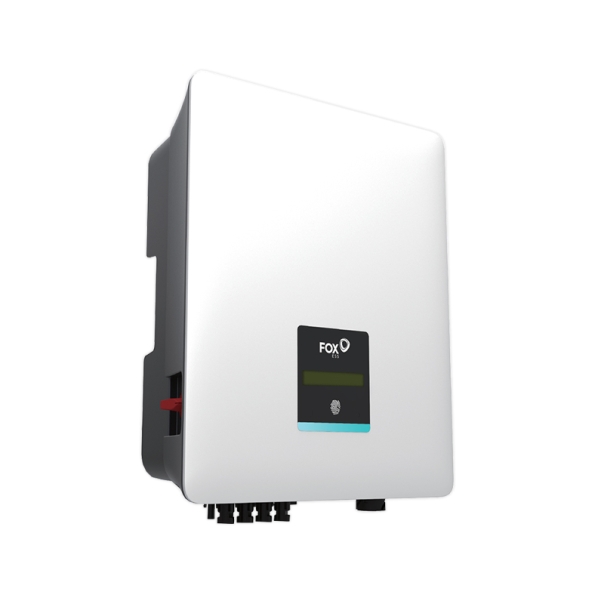

FoxESS T10 G3

The inverters from the T series are specially designed for three-phase residential installations and smaller commercial installations. They are characterized by unparalleled performance and versatility, allowing for extended periods of energy generation. Three-phase versions of the inverters are available in power ranges from 3 kW to 25 kW.

The FoxESS T10-G3 inverter is a three-phase device that guarantees maximum performance, reliability, and long lifespan for the user. Additionally, the FoxESS T10-G3 inverter stands out for its high-quality construction, thanks to the use of components from renowned brands during production. This significantly impacts the quality and durability of the inverter's operation. The FoxESS product features a unique radiator and cooling fins integrated into the housing, ensuring optimal contact with heat-generating components. The cooling fins have a distinctive star shape, increasing the cooling surface area.

Advantages of the FoxESS T10 G3 three-phase inverter / G3 SERIES:

Flexible configuration, ready for installation, easy to expand
High-voltage battery kits from FoxESS create the most efficient connection
IP65 rating Designed for installation in any environment
Monitor device operation remotely using the website or mobile application
Technical data for the FoxESS T10 G3 three-phase inverter:
Maximum recommended DC power [W]: 15000 W
Maximum DC voltage [V]: 1100 V
Nominal DC operating voltage [V]: 600 V
Maximum input current (input A/input B) [A]: 14 / 14 A
Maximum short-circuit current (input A/input B) [A]: 18.2 / 18.2 A
MPPT voltage range [Vdc]: 140 - 1000 V DC
Starting voltage [V]: 140 V
Number of MPPT points: 2
Number of inputs for MPPT: 1+1
Nominal output power [W]: 10000 W
Maximum apparent AC power [VA]: 11000 VA
Nominal AC network frequency [Hz]: 50/60, ±5
Nominal AC current [A]: 14.5 A
Maximum AC current [A]: 15.9 A
MPPT efficiency [%]: 99.8%
Maximum efficiency [%]: 98.6%
Dimensions (WxHxD): 480 x 370 x 183.5 mm
Weight: 17 kg
Protection class: IP65
Topology: Transformerless
Pollution degree: II
Monitoring module: RS485, WIFI (standard) / GPRS (optional) / 4G (optional) / LAN (optional)
Communication: Energy meter, DRM, USB update, E-stop
Display: LCD display, touch button, application, website

FoxESS is a global leader in the production of photovoltaic inverters. During the production process of energy storage solutions, it utilizes the latest standards, resulting in devices with advanced features and characterized by high performance and reliability during operation.
