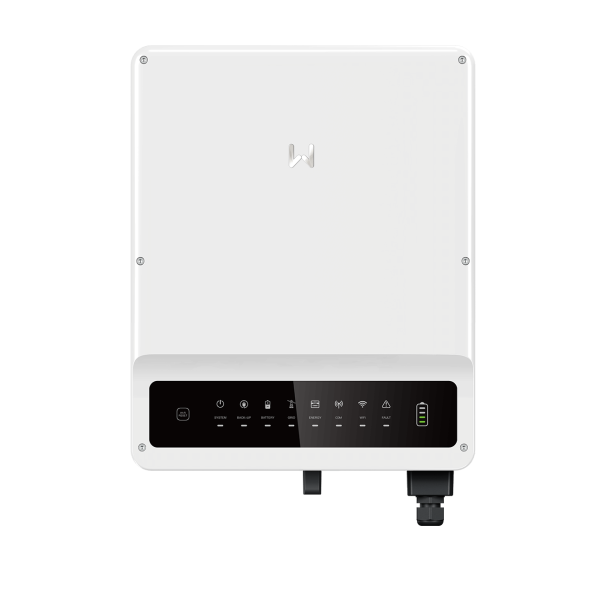

GoodWe GW5K-ET PLUS+ (12.5A) Hybryd Backup

F.Goodwe.3F.H.ETPLUS.wifi.00050
GoodWe GW5K-ET PLUS+ (12.5A) Hybryd Backup
Manufacturer GOODWE

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer GOODWE
Inverter type Hybrid
Inverter phases 3
Max. AC power 5000
Max. DC power 7500
Output power 8000
Circuit breaker value 25
MPPT 2
WIFI Tak
Ethernet No
Compatible energy storage Pylontech, Goodwe, BYD
Compatible optimizers Tigo
Warranty 5
CN code number 85044085
Quantity per pallet 20
Country of origin China
Weight 24
Width 41
Height 52
Depth 18
The hybrid inverter GoodWe GW5K-ET PLUS+ plays a key role as the central point of the photovoltaic installation, harmoniously collaborating with the energy storage system. Its design focuses on three main objectives: maximizing output power, increasing self-consumption, and facilitating emergency power supply. Thanks to intelligent load management and a wide range of battery voltage, the entire system is extremely flexible, allowing for adaptation to individual needs within the household ecosystem. By combining the inverter with the GoodWe Lynx Home F energy storage system, a comprehensive and reliable solution is achieved.

Downloads

Download as PDF

Variants

Product description

The hybrid inverter GoodWe GW5K-ET PLUS+ plays a key role as the central point of the photovoltaic installation, harmoniously collaborating with the energy storage system. Its design focuses on three main objectives: maximizing output power, increasing self-consumption, and facilitating emergency power supply. Thanks to intelligent load management and a wide range of battery voltage, the entire system is extremely flexible, allowing for adaptation to individual needs within the household ecosystem. By combining the inverter with the GoodWe Lynx Home F energy storage system, a comprehensive and reliable solution is achieved.

Advantages of the GoodWe GW5K-ET PLUS+ inverter:

Fanless and quiet operation
Emergency power supply with uninterrupted switching <10ms
Integration with a smart home
Technical data of the GoodWe GW5K-ET PLUS+ inverter:
Maximum recommended DC power [W]: 7500
Maximum input current [A]: 12.5
Maximum short-circuit current [A]: 15.2
MPPT voltage range [Vdc]: 200 – 850
Startup voltage [V]: 180
Number of MPPT tracking points: 2
Series per MPPT: 1
Nominal AC power [W]: 5000
Nominal AC current [A]: 15.2
Maximum efficiency: 98.00%
Maximum battery efficiency under load: 97.50%
Dimensions (length x width x height) [mm]: 415 x 516 x 180
Weight [kg]: 24
Degree of protection: IP66
Topology: transformerless
Warranty: 5 years

The GoodWe GW5K-ET PLUS+ inverter provides a comprehensive solution for photovoltaic installations with an energy storage system, combining energy efficiency, configurational flexibility, and secure emergency power supply.
