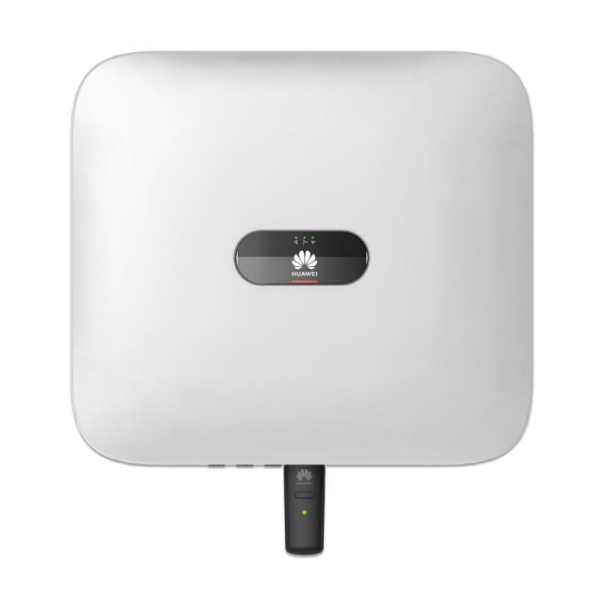

HUAWEI SUN 2000-6KTL-M1 HC
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | HUAWEI |
| Inverter type | Hybrid |
| Inverter phases | 3 |
| Max. AC power | 6000 |
| Max. DC power | 9000 |
| Output power | 6000 |
| Circuit breaker value | 25 |
| MPPT | 2 |
| Amperage | 13.5 |
| WIFI | Tak |
| Ethernet | Yes |
| Compatible energy storage | Huawei |
| Compatible optimizers | Huawei |
| Warranty | 10 |
| CN code number | 85044085 |
| Quantity per pallet | 20 |
| Country of origin | China |
| Weight | 17 |
| Width | 47 |
| Height | 52 |
| Depth | 17 |
Downloads
- Other
- Certyfikat-CE-EMC-EN.pdf
File size: 81 KB
- Certyfikat-CE-EMC-PL.pdf
File size: 872 KB
- Certyfikat-CE-EN.pdf
File size: 118 KB
- Certyfikat-CE-PL.pdf
File size: 552 KB
- Certyfikat-CE-TUV-LVD-PL-EN.pdf
File size: 756 KB
- Certyfikat-IEC-61727-IEC-62116 -EN.pdf
File size: 348 KB
- Certyfikat-IEC-61727-IEC-62116 -PL.pdf
File size: 901 KB
- Certyfikat-NC-RfG-EN.pdf
File size: 339 KB
- Certyfikat-NC-RfG-PL.pdf
File size: 424 KB
- G98-Certificate-of-Compliance-EN.pdf
File size: 870 KB
- G99-Certificate-of-Compliance-EN.pdf
File size: 822 KB
- Informacja-producenta-EN.pdf
File size: 405 KB
- Informacja-producenta-Modbus-RS485-EN.pdf
File size: 610 KB
- Informacja-producenta-Modbus-RS485-PL.pdf
File size: 781 KB
- Informacja-producenta-PL.pdf
File size: 618 KB
- Instrukcja-obsługi-DE.pdf
File size: 7 MB
- Karta-katalogowa-DE.pdf
File size: 290 KB
- Karta-Katalogowa-EN.pdf
File size: 325 KB
- Karta-katalogowa-PL.pdf
File size: 1 MB
- Warunki-gwarancji-UE-EN.pdf
File size: 182 KB
- Warunki-gwarancji-UE-PL.pdf
File size: 108 KB
-
Variants
Product description
The HUAWEI SUN 2000-6KTL-M1 HC inverter is a three-phase photovoltaic string inverter, specially designed to convert the direct current energy generated by photovoltaic panel modules into alternating current and deliver it to the electrical grid.
Its application includes roof-mounted residential installations connected to the grid, as well as small ground-mounted photovoltaic installations, also connected to the grid. In a typical grid-connected installation consisting of photovoltaic string arrays, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and delivering electrical energy.
The high-current version is characterized by an allowable higher input current on the DC side.
Advantages of the HUAWEI SUN 2000-6KTL-M1 HC inverter:
Protection against electric arc supported by AI - Up to 30% higher energy yield thanks to optimizers
"Plug & Play" battery interface
WLAN, Fast Ethernet, 4G communication support
Technical data of the HUAWEI SUN 2000-6KTL-M1 HC:
Number of inverter phases: 3
Maximum efficiency: 98.6%
Recommended maximum PV power: 9000 Wp
Maximum input voltage: 1100 V
Starting voltage: 200 V
Operating voltage range of PV input: 140 V - 980 V
Rated input voltage: 600 V
Maximum working current at MPPT: 13.5 A
Max. short-circuit current at MPPT: 19.5 A
Number of MPPT: 2
Number of inputs: 1
DC operating voltage range: 600 - 980 Vdc
Maximum DC working current: 16.7 A
Maximum charging power: 10000 W
Rated output power: 6000 W
Maximum apparent power: 6600 VA
Rated output voltage: 220 V AC / 380 V AC, 230 V AC / 400 V AC, 3W/ N+PE
Maximum output current: 10.1 A
Weight (with mounting bracket): 17 kg
Dimensions (with mounting bracket): 525 x 470 x 146.5 mm
Protection rating: IP65
The HUAWEI SUN 2000-6KTL-M1 HC inverter is an advanced solution that not only offers functions facilitating operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a solid choice for photovoltaic installations.
