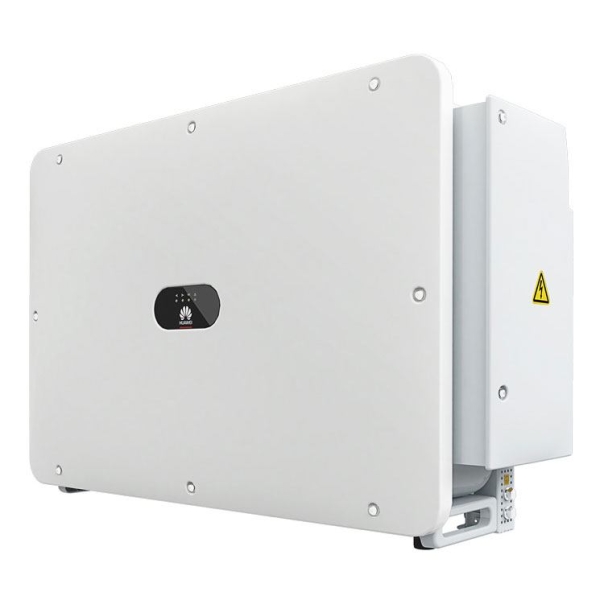

HUAWEI – SUN2000-100KTL-M2

The three-phase inverter SUN2000-100KTL-M2 in a photovoltaic installation connected to the public grid converts the direct current energy generated by the photovoltaic module chains into alternating current and supplies the public grid with energy.
The SUN2000 inverter is used in photovoltaic installations connected to the public grid, intended for commercial solar installations on building roofs and in large solar power plants. A typical grid-connected photovoltaic installation includes a chain of photovoltaic modules, the SUN2000-60KTL-M0 inverter, an AC distribution box (ACDU), and an isolation transformer.

Advantages of the HUAWEI SUN2000-100KTL-M2 inverter:

10 MPP trackers
Maximum efficiency of 98.8% (@480V)
Management at the level of a single chain
Support for intelligent I-V curve diagnostics
MBUS support
Surge protectors for DC and AC
AFCI function and intelligent DC chain disconnector
IP66 protection class
Technical specifications of the HUAWEI SUN2000-100KTL-M2:
Maximum efficiency 98.6% @400 V; 98.8% @480 V
Max. input voltage 1100 V
Maximum current for MPPT 30 A
Max. short-circuit current for MPPT 40 A
Start-up voltage 200 V
MPPT operating voltage range 200 V ~ 1 000 V
Rated input voltage: 600 V @400 Vac, 720 V @480 Vac
Number of MPPTs: 10
Maximum number of inputs per MPPT: 2
Rated active AC power 100,000 W
Maximum apparent AC power 110,000 VA
Maximum active AC power 110,000 W
Dimensions (width x height x depth) 1035 x 700 x 365 mm
Weight (with mounting plate) 93 kg
Operating temperature range -25°C ~ 60°C
IP66 protection rating

The HUAWEI SUN2000-100KTL-M2 inverter is an advanced solution that not only offers features for easier operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a solid choice for photovoltaic installations.
