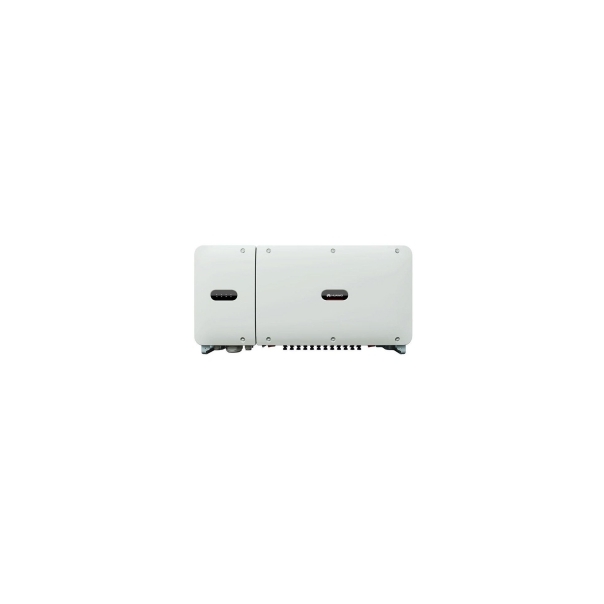

HUAWEI SUN2000-60KTL-M1

The three-phase inverter SUN2000-60KTL-M0 in a photovoltaic installation connected to the public grid converts direct current energy generated by photovoltaic module chains into alternating current and supplies the public grid with energy. The SUN2000 inverter is used in grid-connected photovoltaic installations, intended for commercial solar installations on building roofs and large solar power plants. A typical grid-connected photovoltaic installation includes a chain of photovoltaic modules, the SUN2000-60KTL-M0 inverter, an AC distribution box (ACDU), and an isolation transformer.

Advantages of the HUAWEI SUN 2000-60KTL-M0 inverter:

Intelligent monitoring of 12 chains
Maximum efficiency of 98.7%
Fuseless design
Type II surge protectors for DC and AC
Technical specifications of the HUAWEI SUN 2000-60KTL-M0:
Maximum efficiency 98.9% @480 V; 98.7% @380 V / 400 V
Max. input voltage1 1100 V
Maximum current for MPPT 22 A
Max. short-circuit current MPPT 30 A
Start-up voltage 200 V
MPPT operating voltage range2 200 V ~ 1 000 V
Rated input voltage 600 V @380 V AC / 400 V AC; 720 V @480 V AC
Number of MPPT 6
Maximum number of MPPT inputs 2
Rated active AC power 60,000 W
Maximum apparent AC power 66,000 VA
Maximum active AC power 66,000 W
Rated output current 91.2 A @380 V, 86.7 A @400 V, 72.2 A @480 V
Maximum output current 100 A @380 V, 95.3 A @400 V, 79.4 A @480 V
Dimensions (width x height x depth) 1075 x 555 x 300 mm
Weight (with mounting plate) 74 kg
Operating temperature range -25°C ~ 60°C
IP protection level IP65

The HUAWEI SUN 2000-60KTL-M0 inverter is an advanced solution that not only offers features for easier operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a solid choice for photovoltaic installations.
