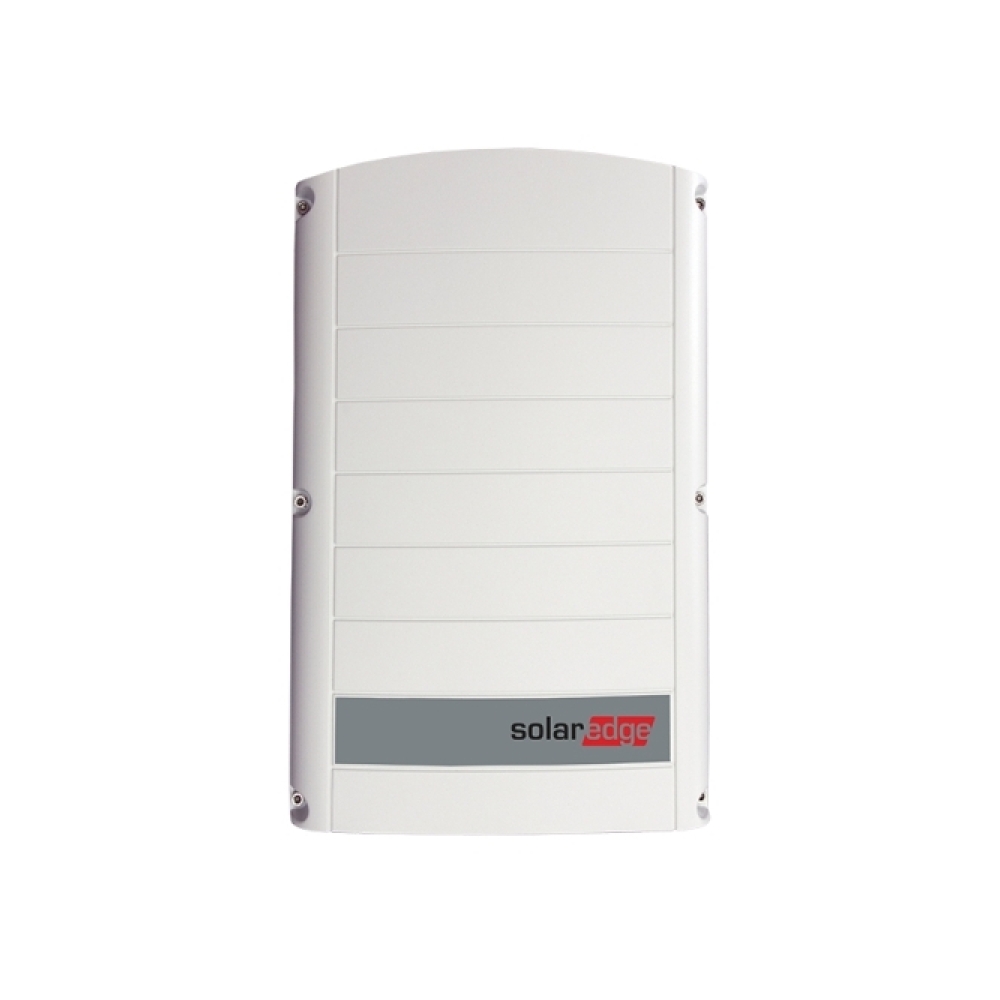

Solaredge SE10K-RW0TEBEN4

Product code: F.Solaredge.3F.wifi.00100.RW0TEBEN4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	3
Max. AC power	10000
Max. DC power	13500
Output power	10000
Circuit breaker value	20
MPPT	1
Amperage	16.5
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Quantity per pallet	12
Country of origin	Israel
Weight	18.9
Width	315
Height	540
Depth	191

SolarEdge SE10K-RW0TEBEN4 is a three-phase inverter with a rated power of 10 kW, designed for PV installations using SolarEdge power optimizers. It achieves a maximum efficiency of 97.6% and operates quietly with passive, fanless cooling. The inverter features integrated RS485 and Ethernet communication, with optional Wi-Fi, ZigBee, and GSM connectivity. Its IP65 protection rating allows flexible indoor and outdoor installation.

Other
- Certyfikat-CE 62109-61000-50581-EN.pdf
  File size: 240 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
  File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 420 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 493 KB
- Deklaracja-zgodności-CE-DE.pdf
  File size: 240 KB
- Deklaracja-zgodności-CE-EN.pdf
  File size: 282 KB
- Deklaracja-zgodności-CE-PL.pdf
  File size: 256 KB
- G98-Certificate-of-Compliance-EN.pdf
  File size: 517 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-EN.pdf
  File size: 195 KB
- SE-SolaeEdge-Home-Wave-Inverter-Home-Short-String-Inverter-StorE
  File size: 376 KB
- se-three-phase-certification-vde-ar-n-germany.pdf
  File size: 2 MB
- se-three-phase-inverter-ammonia-test-report-declaration-de.pdf
  File size: 87 KB
- se-three-phase-inverter-setapp-ds-de.pdf
  File size: 225 KB
- se-three-phase-inverter-setapp-ds-pl.pdf
  File size: 176 KB
- se-three-phase-inverter-u20-0125-certification-de.pdf
  File size: 262 KB

Download as PDF

Product description

SolarEdge SE10K-RW0TEBEN4 – High-Performance 10 kW Three-Phase Inverter for Modern PV Systems

Product Description

The SolarEdge SE10K-RW0TEBEN4 is the most powerful model in the SE3K–SE10K series, designed for medium and large photovoltaic systems. With a rated output of 10 kW, it works seamlessly with SolarEdge power optimizers, offering module-level MPPT tracking and maximizing system energy yield. Delivering an impressive 97.6% efficiency and featuring passive cooling without a fan, it ensures quiet, efficient, and maintenance-free operation. Built-in RS485 and Ethernet interfaces, as well as optional Wi-Fi, ZigBee, or GSM modules, enable reliable communication and easy integration with the SolarEdge monitoring platform. The Smart Energy Management technology allows intelligent power flow control and supports energy storage systems. The robust IP65-rated enclosure ensures safe installation both indoors and outdoors.

Applications

Three-phase PV installations up to 10 kW
Systems with SolarEdge power optimizers
Residential, commercial, and light industrial projects
Integration with battery storage systems
Smart and Home Energy Management applications

Main Advantages

Nominal output power 10 kW
Maximum efficiency 97.6%
Passive, fanless cooling for silent operation
Compatible with SolarEdge power optimizers
Communication via RS485, Ethernet, Wi-Fi / ZigBee / GSM (optional)
Support for Smart Energy Management
IP65 protection – indoor and outdoor installation
Lightweight, compact design – only 18.9 kg

Technical Specifications

Parameter	Value
Rated AC Power	10,000 W
Maximum AC Power	10,000 VA
AC Output Voltage (L–L / L–N)	400 / 230 V
AC Voltage Range	184 – 264.5 V
Nominal Frequency	50 / 60 Hz ±5%
Maximum Output Current	16 A
Maximum DC Input Power	13,500 W
Maximum DC Voltage	900 V
Nominal DC Voltage	750 V
Maximum DC Input Current	16.5 A
Maximum Efficiency	97.6%
European Efficiency	97.6%
Communication	RS485, Ethernet, Wi-Fi / ZigBee / GSM (optional)
Cooling	Passive – fanless
Dimensions (H × W × D)	540 × 315 × 191 mm
Weight	18.9 kg
Noise Level	< 40 dBA
Protection Rating	IP65
Operating Temperature	–20 °C to +60 °C (M40 version up to +60 °C)
Certifications	IEC 62109, EN 50178, VDE 0126-1-1, VDE-AR-N-4105, AS4777, G83 / G59

Model Comparison

Compared to smaller SE models, the SE10K-RW0TEBEN4 offers the highest output power of the series, while maintaining identical efficiency, compact dimensions, and silent operation. It is ideal for PV systems rated between 9–12 kWp, providing outstanding performance, high reliability, and full compatibility with SolarEdge technology.

B2B Offer

Interested in the SolarEdge SE10K-RW0TEBEN4? Contact us for wholesale pricing or technical consultation on system design and SolarEdge configuration.
