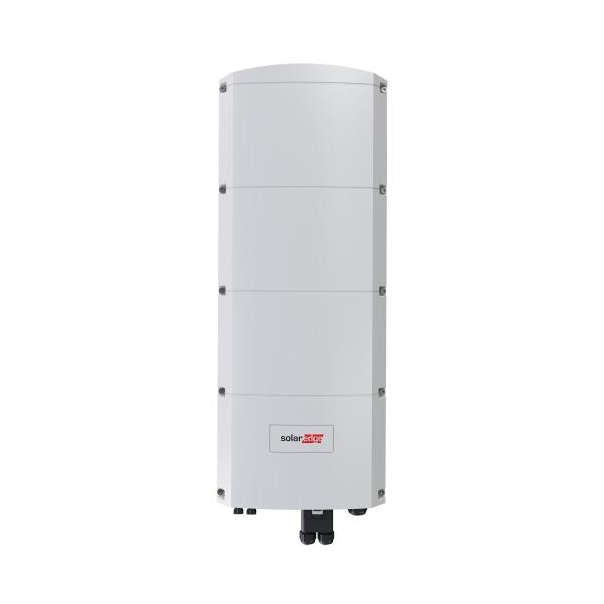

Solaredge SE10K RWB48BFN4 Home Hub inverter hybrid

F.Solaredge.H.3F.withoutwifi.00100.RWB48BFN4
Solaredge SE10K RWB48BFN4 Home Hub inverter hybrid
Manufacturer SOLAREDGE

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer SOLAREDGE
Inverter type Hybrid
Inverter phases 3
Max. AC power 10000
Max. DC power 15000
Output power 10000
Circuit breaker value 20
MPPT 1
Amperage 20
WIFI Nie
Ethernet No
Compatible energy storage Solaredge
Compatible optimizers Solaredge
Warranty 12
CN code number 85044086
Quantity per pallet 12
Country of origin Israel
Weight 20
Width 31
Height 54
Depth 19
The Solaredge SE10K RWB48BFN4 Home Hub inverter is a three-phase hybrid inverter designed for energy storage and backup power supply. Unlike traditional inverters, SolarEdge inverters do not have MPP trackers, but they have two inputs for SolarEdge module optimizers. Thanks to constant voltage technology, the SolarEdge inverter always operates within the optimal input voltage range, regardless of the number of modules and strings. Information about the performance of individual photovoltaic modules is transmitted to the SolarEdge inverter via the power line and can be monitored and visualized over the Internet through the SolarEdge Monitoring Portal.

Downloads

Download as PDF

Variants

Product description

The Solaredge SE10K RWB48BFN4 Home Hub inverter is a three-phase hybrid inverter designed for energy storage and backup power supply. Unlike traditional inverters, SolarEdge inverters do not have MPP trackers, but they have two inputs for SolarEdge module optimizers. Thanks to constant voltage technology, the SolarEdge inverter always operates within the optimal input voltage range, regardless of the number of modules and strings. Information about the performance of individual photovoltaic modules is transmitted to the SolarEdge inverter via the power line and can be monitored and visualized over the Internet through the SolarEdge Monitoring Portal.

Advantages of the Solaredge SE10K RWB48BFN4 Home Hub inverter:

Simple installation involving one inverter to manage both photovoltaic production and energy storage, as well as operation during power outages from the grid to provide backup power for the entire household.
More energy due to the architecture with a battery on the DC side, which allows for direct storage of photovoltaic energy in the battery without losses resulting from conversion to alternating current.
Quick and easy startup of the inverter directly from a smartphone using the SolarEdge SetApp application.
Designed to eliminate high voltage during installation, maintenance, and transportation to improve safety.
Enables module-level monitoring and provides full insight into energy storage status, photovoltaic production, and self-consumption data.
Technical specifications of the Solaredge SE10K RWB48BFN4 Home Hub:
Nominal AC output power (total/per phase): 10000/3333 VA
AC output voltage - phase to phase / phase to neutral (nominal voltage): 380/220; 400/230 Vac
AC output voltage - phase to neutral (range): 184 - 264.5 Vac
Maximum continuous output current (per phase): 16 A
Maximum AC output power (total/per phase): 10000/3333 VA
Maximum continuous output current (per phase): 14.4 A
Dimensions (H x W x D): 907 x 317 x 192 mm
Weight: 37 kg
Cooling type: Internal and external fans
Noise emission: < 50 dBA
Protection class: IP65 - outdoors and indoors
Mounting: Included bracket
Inverter efficiency: 98 %
