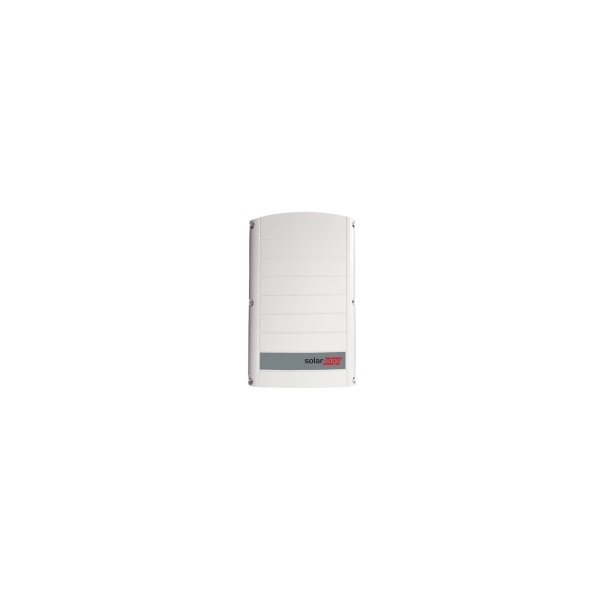

Solaredge SE12.5K-RW0TEBEN4

Name: Solaredge SE12.5K-RW0TEBEN4
Brand: SOLAREDGE
SKU: F.Solaredge.3F.wifi.00125.RW0TEBEN4

Product code: F.Solaredge.3F.wifi.00125.RW0TEBEN4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	3
Max. AC power	12500
Max. DC power	16850
Output power	12500
Circuit breaker value	25
MPPT	1
Amperage	21
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Warranty	12
CN code number	85044086
Quantity per pallet	12
Country of origin	Israel
Weight	35
Width	35
Height	65
Depth	31

The SolarEdge SE12.5K inverter is a three-phase device known for its high efficiency, designed for small to medium photovoltaic installations. Thanks to its constant input voltage system, this SolarEdge inverter operates most efficiently, regardless of the number of solar panels or current weather conditions. The combination of innovative digital technology and premium reliability are distinctive features of the SolarEdge inverter.

Other
- Certyfikat-CE-62109-61000-50581-EN.pdf
  File size: 240 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
  File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 420 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 493 KB
- Deklaracja-zgodności-CE-DE.pdf
  File size: 240 KB
- Deklaracja-zgodności-CE-EN.pdf
  File size: 282 KB
- Deklaracja-zgodności-CE-PL.pdf
  File size: 256 KB
- G99-Certificate-of-Compliance-EN.pdf
  File size: 899 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-EN.pdf
  File size: 284 KB
- Karta-Katalogowa-PL.pdf
  File size: 318 KB

Download as PDF

Product description

The SolarEdge SE12.5K inverter is a three-phase device characterized by high efficiency, designed for small to medium-sized photovoltaic installations. Thanks to its constant input voltage system, this SolarEdge inverter operates most efficiently regardless of the number of solar panels and current weather conditions. The combination of innovative digital technology with premium reliability are the characteristic features of the SolarEdge inverter.

Advantages of the SolarEdge SE12.5K inverter:

Exceptional efficiency (98%)
Prepared for use with energy storage
Small and easy to install
Integrated module-level monitoring
Quick and easy inverter setup directly from a smartphone using the SolarEdge SetApp application
Internet connection via Ethernet or wireless
IP65 - suitable for outdoor or indoor installation
Longer strings due to the inverter's constant voltage
Intelligent energy management
Advanced safety solution - integrated arc fault protection
Technical data of the SolarEdge SE12.5K inverter:
Maximum DC power: 16,850 W
Maximum input voltage: 1000 Vdc
Rated DC input voltage: 750 Vdc
Maximum input current: 21 Adc
Reverse polarity protection: YES
Maximum inverter efficiency: 98%
Rated AC output power: 12,500 VA
Maximum AC power: 12,500 VA
AC output voltage range - phase to neutral: 400 - 230 Vac
Maximum continuous output current (per phase): 20 A
Dimensions (height x width x depth): 549 x 317 x 264 mm
Weight: 30.7 kg
Operating temperature range: -40 - +60 degrees Celsius

SolarEdge is a global leader in intelligent energy technology. With world-class engineering expertise and a constant focus on innovation, the company creates intelligent energy solutions, driving our lives and shaping the future. Their intelligent inverter solution revolutionizes the way energy is harvested and managed in photovoltaic systems, maximizing electricity production and reducing costs. SolarEdge continues to advance intelligent energy, offering innovative solutions for photovoltaic installations, storage, electric vehicle charging, UPSs, and network services.
