Solaredge SE17K-RW0TEBEN4

SolarEdge SE17K-RW0T0BNN4 – three-phase 17 kW grid-tied inverter

Product description

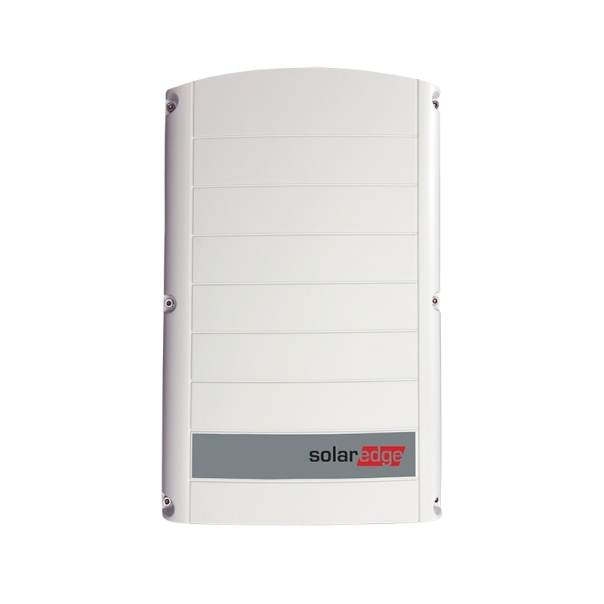

SolarEdge SE17K-RW0T0BNN4 is a three-phase inverter from the SE12.5K–SE20K series, designed for larger PV systems operating within the SolarEdge architecture. The model provides a rated and maximum output power of 17 000 VA, while on the DC side it operates with a photovoltaic generator with a power of up to 22 950 W. The inverter uses a rated input voltage of 750 V DC, allows a maximum of 1000 V DC and supports an input current of up to 24,6 A. The maximum efficiency of the device is 98%, while the European weighted efficiency is 97,7%. Communication via RS485 and Ethernet can be supplemented with optional Wi-Fi and GSM, while commissioning is carried out through the SolarEdge SetApp. An operating temperature range from -40°C to +60°C, a replaceable fan and an IP65 enclosure support the use of the device in indoor and outdoor installations.

Application

• larger three-phase photovoltaic installations in commercial and utility buildings,
• PV systems using SolarEdge power optimizers,
• installations requiring a PV generator with a power of up to 22,95 kW DC,
• projects with an energy export limitation function,
• systems designed for indoor or outdoor installation.

Key features

• rated and maximum AC output power: 17 000 VA,
• maximum PV generator power: 22 950 W DC,
• maximum input voltage: 1000 V DC,
• rated input voltage: 750 V DC,
• maximum input current: 24,6 A,
• maximum continuous output current: 24,6 A per phase,
• maximum inverter efficiency: 98%,
• European weighted efficiency: 97,7%,
• RS485 and Ethernet communication as well as optional Wi-Fi and GSM,
• IP65 protection rating and cooling by a replaceable fan.

Technical parameters

Model comparison

SolarEdge SE17K-RW0T0BNN4 is positioned between the SE16K and SE20K variants. Compared with the 16 kW model, it increases the output power from 16 000 VA to 17 000 VA, the maximum DC power from 21 600 W to 22 950 W and the maximum input current from 23,2 A to 24,6 A. At the same time, the maximum continuous output current increases from 23,2 A to 24,6 A per phase. The higher SE20K already offers 20 001 VA of output power, up to 30 000 W on the DC side and an input current of 29 A. The SE17K is therefore a variant for installations requiring slightly more power than 16 kW, but without the need to move directly to the 20 kW model.

B2B offer

For larger three-phase PV installations, SolarEdge SE17K-RW0T0BNN4 can be a suitable variant for a system with SolarEdge power optimizers. Contact Gvolt IT regarding B2B pricing, availability and the selection of compatible optimizers and other installation components.
