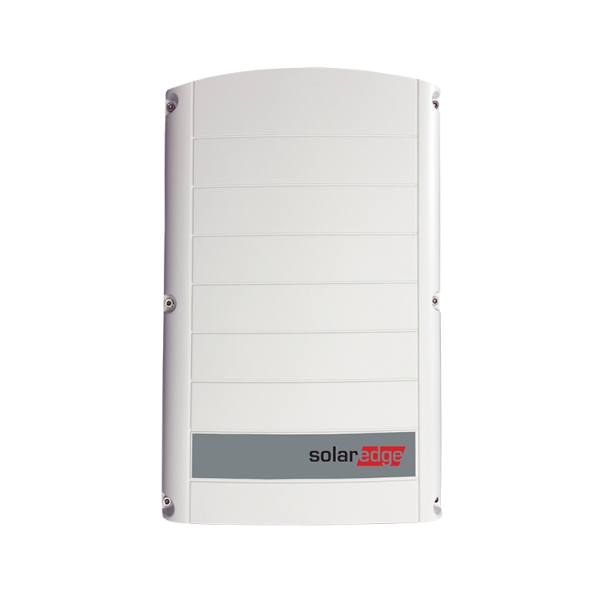

Solaredge SE25K-RW00IBNM4

Product code: F.Solaredge.3F.wifi.00250.RW00IBNM4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	3
Max. AC power	25000
Max. DC power	33750
Output power	25000
Circuit breaker value	50
MPPT	1
Amperage	37
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Quantity per pallet	12
Country of origin	Israel
Weight	32
Width	317
Height	550
Depth	273

SolarEdge SE25K-RW00IBNM4 is a three-phase inverter with a power of 25 kW, designed for commercial and industrial installations. Developed to work with SolarEdge optimizers, it offers an exceptional efficiency of 98.3%, integrated surge protection, and convenient commissioning through the SetApp application. The compact IP65-rated enclosure allows installation both outdoors and indoors.

Other
- Certyfikat-61000-EN.pdf
  File size: 374 KB
- Certyfikat-61000-PL.pdf
  File size: 606 KB
- Certyfikat-62109-EN.pdf
  File size: 387 KB
- Certyfikat-62109-PL.pdf
  File size: 870 KB
- Certyfikat-CE-EN.pdf
  File size: 240 KB
- Certyfikat-CE-PL.pdf
  File size: 282 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 407 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 484 KB
- Certyfikat-VDE4105-DE.pdf
  File size: 485 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-DE.pdf
  File size: 973 KB
- Karta-Katalogowa-EN.pdf
  File size: 368 KB
- Karta-Katalogowa-PL.pdf
  File size: 530 KB

Download as PDF

Product description

SolarEdge SE25K-RW00IBNM4 – Three-phase 25 kW inverter for commercial installations

Product description

The SolarEdge SE25K-RW00IBNM4 inverter is a reliable 25 kW device designed to work with SolarEdge optimizers in large commercial and industrial installations. It offers a high efficiency of 98.3%, fixed DC voltage technology allowing longer module strings, and integrated DC surge protection Type II with the option to add AC Type II. Built-in RS485 and Ethernet communication, with optional Wi-Fi or GSM, enables full system monitoring, while configuration is quick and convenient via the SolarEdge SetApp application. The IP65-rated enclosure ensures weather resistance, making the inverter suitable for both indoor and outdoor installation.

Applications

Commercial and industrial installations up to 25 kW
PV systems with SolarEdge optimizers
Projects with smart energy management
Rooftop and ground-mounted systems in commercial buildings
Systems with export limitation to the grid

Main advantages

Rated power 25 kW
Maximum efficiency 98.3%, European efficiency 98%
Fixed DC voltage – greater design flexibility
Configuration via SolarEdge SetApp
Built-in DC surge protection Type II (optional AC Type II)
Communication RS485, Ethernet, Wi-Fi / GSM (optional)
Module-level PV monitoring
Protection rating IP65 – indoor and outdoor installation
Cooling with replaceable fan – noise level <62 dBA

Technical parameters

Parameter	Value
Rated AC power	25,000 W
Maximum AC power	25,000 VA
AC output voltage (L–L / L–N)	400 / 230 V
AC voltage range	304–437 V (L–L) / 176–253 V (L–N)
Frequency	50 / 60 Hz ±5%
Max. output current	36.25 A
Max. DC input power	37,500 W
Nominal DC voltage	750 V
Max. DC voltage	1,000 V
Max. input current	36.25 A
Maximum efficiency	98.3%
European efficiency	98%
Communication	2×RS485, Ethernet; optional Wi-Fi / GSM
Surge protection	DC Type II (integrated), AC Type II (optional)
Dimensions (H × W × D)	550 × 317 × 273 mm
Weight	32 kg
Noise level	<62 dBA
Protection rating	IP65
Operating temperature range	–40°C to +60°C

Model comparison

Within the SolarEdge SE25K / SE30K / SE33.3K inverter series, the SE25K-RW00IBNM4 model stands out for its excellent balance between power and efficiency. Compared to the SE20K, it offers 25% higher output power and increased AC current while maintaining the same design, noise level, and IP65 protection. For projects in the 20–30 kWp range, it provides the most cost-effective and efficient solution.

B2B offer

Planning to use the SolarEdge SE25K-RW00IBNM4 in your project? Contact us for a wholesale offer or technical assistance in selecting SolarEdge system components.
