Solaredge SE33.3K-RW00IBNM4

Product code: F.Solaredge.3F.wifi.00333.RW00IBNM4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	3
Max. AC power	33000
Max. DC power	50000
Output power	33000
Circuit breaker value	63
MPPT	1
Amperage	48.25
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Quantity per pallet	12
Country of origin	Israel
Weight	32
Width	317
Height	550
Depth	273

SolarEdge SE33.3K-RW00IBNM4 is a three-phase inverter with a power output of 33.3 kW, designed for commercial and industrial PV installations. It works with SolarEdge power optimizers, achieving 98.3% efficiency and maintaining a fixed DC voltage. The unit features integrated DC Type II protection, built-in RS485 and Ethernet communication, and optional Wi-Fi / GSM connectivity, while maintaining an IP65 protection rating and quiet cooling operation.

Other
- Certyfikat-61000-EN.pdf
  File size: 374 KB
- Certyfikat-61000-PL.pdf
  File size: 606 KB
- Certyfikat-62109-EN.pdf
  File size: 387 KB
- Certyfikat-62109-PL.pdf
  File size: 870 KB
- Certyfikat-CE-EN.pdf
  File size: 240 KB
- Certyfikat-CE-PL.pdf
  File size: 282 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 407 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 484 KB
- Certyfikat-VDE4105-DE.pdf
  File size: 485 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-DE.pdf
  File size: 973 KB
- Karta-Katalogowa-EN.pdf
  File size: 368 KB
- Karta-Katalogowa-PL.pdf
  File size: 530 KB

Download as PDF

Product description

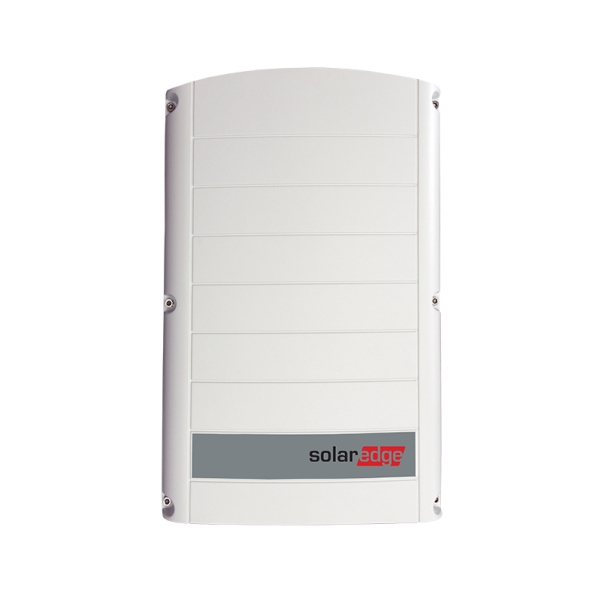

SolarEdge SE33.3K-RW00IBNM4 – Three-phase 33.3 kW inverter for large PV systems

Product description

The SolarEdge SE33.3K-RW00IBNM4 is the top model in SolarEdge’s commercial inverter range, designed to work with power optimizers. It maintains a fixed DC voltage and delivers a maximum efficiency of 98.3%, ensuring excellent performance even in large-scale PV systems. With a rated output of 33.3 kW and an AC output current of 48.25 A, it is ideal for supplying power to large commercial and industrial facilities. The inverter is commissioned via the SolarEdge SetApp mobile application, and includes integrated RS485 and Ethernet interfaces with optional Wi-Fi and GSM modules. Integrated DC Type II protection, optional AC Type II surge protection, and an IP65 enclosure ensure safe and reliable operation in all environments.

Applications

Commercial and industrial photovoltaic installations up to 33.3 kW
Systems with SolarEdge optimizers and module-level monitoring
Rooftop and ground-mounted projects with complex string architecture
Installations with power export limitation or smart energy management
PV systems requiring high efficiency and low operational losses

Main advantages

Rated power 33.3 kW and maximum efficiency 98.3%
Fixed DC voltage technology – design flexibility and improved performance
Digital commissioning via SolarEdge SetApp
Integrated RS485 and Ethernet, optional Wi-Fi / GSM
Built-in DC Type II surge protection
Optional AC Type II protection and external DC disconnect
IP65 protection class – suitable for indoor and outdoor installation
Low noise level <62 dBA with replaceable fan cooling

Technical specifications

Parameter	Value
Rated AC power	33 300 W
Maximum AC power	33 300 VA
AC output voltage (L–L / L–N)	400 / 230 V
AC voltage range	304–460 V (L–L) / 176–264.5 V (L–N)
Frequency	50 / 60 Hz ±5%
Max. output current	48.25 A
Max. DC input power	50 000 W
Max. DC voltage	1 000 V
Nominal DC voltage	750 V
Max. input current	48.25 A
Max. efficiency	98.3 %
European efficiency	98 %
Communication	2 × RS485, Ethernet, optional Wi-Fi / GSM
Protection rating	IP65
Operating temperature range	–40 °C to +60 °C
Dimensions (H × W × D)	550 × 317 × 273 mm
Weight	32 kg
Noise level	<62 dBA

Model comparison

The SE33.3K-RW00IBNM4 is the most powerful inverter in the SE25K–SE33.3K series, designed for large commercial installations. Compared to the SE30K, it offers 3.3 kW more power and higher AC current (48.25 A), while maintaining the same enclosure and IP65 protection. Efficiency and communication features remain identical, making it the ideal solution for PV systems with over 150 modules.
