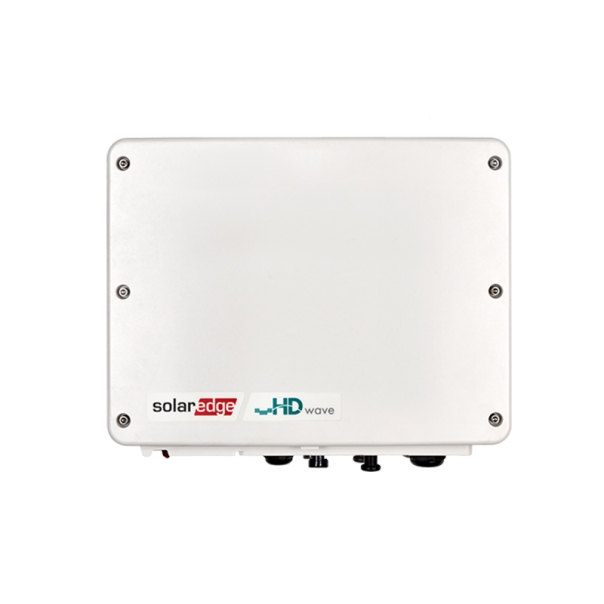

Solaredge SE3500H-RW000BEN4

Product code: F.Solaredge.1F.wifi.00035.RW000BEN4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	1
Max. AC power	3500
Max. DC power	7000
Output power	3500
Circuit breaker value	20
MPPT	1
Amperage	10
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Warranty	12
CN code number	85044085
Quantity per pallet	40
Country of origin	Israel
Weight	8
Width	280
Height	370
Depth	142

SolarEdge SE3500H-RW000BEN4 is a single-phase inverter featuring HD-Wave technology with a power output of 3.5 kW, designed to work with SolarEdge power optimizers. It provides a maximum efficiency of 99.2% and a European efficiency of 98.8%. Thanks to its IP65 protection rating and silent operation, it is an excellent choice for residential and small PV installations.

Other
- Certyfikat-CE-62109-61000-50581-EN.pdf
  File size: 252 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
  File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 405 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 473 KB
- Deklaracja zgodności CE EN.pdf
  File size: 857 KB
- Deklaracja-zgodności-CE-PL.pdf
  File size: 263 KB
- G99 Certificate of Compliance EN.pdf
  File size: 756 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-DE.pdf
  File size: 388 KB
- Karta-Katalogowa-EN.pdf
  File size: 182 KB
- Karta-Katalogowa-PL.pdf
  File size: 175 KB
- se-single-phase-hd-wave-inverter-certificate-vde-0126-de.pdf
  File size: 619 KB
- se-single-phase-hd-wave-inverter-certificate-vde-ar-n-4105-confo
  File size: 693 KB
- se-single-phase-inverter-se2200h-se5000h-vde-na-schutz-certifica
  File size: 517 KB

Download as PDF

Product description

SolarEdge SE3500H-RW000BEN4 – Single-Phase HD-Wave Inverter 3.5 kW

Product Description

The SolarEdge SE3500H-RW000BEN4 is a highly efficient single-phase inverter with a power output of 3.5 kW, designed specifically to work with SolarEdge power optimizers. The HD-Wave technology ensures exceptional energy conversion efficiency with minimal losses and a compact design. The inverter allows DC oversizing up to 200%, increasing energy yield from PV systems. It features natural convection cooling, an IP65 protection rating, and configuration via the SetApp mobile application, making it a convenient and reliable solution for modern photovoltaic systems.

Applications

Single-phase residential PV installations
PV systems using SolarEdge power optimizers
Modernization and expansion of small photovoltaic systems
Projects with limited installation space
Installations requiring high efficiency and reliability

Main Advantages

Output power 3.5 kW
Maximum efficiency 99.2%, European efficiency 98.8%
HD-Wave technology – lower losses and higher efficiency
DC oversizing up to 200%
Natural cooling and silent operation
Communication: RS485, Ethernet, Wi-Fi, Home Network
Protection rating IP65 – suitable for indoor and outdoor installation
Easy commissioning via SetApp mobile app

Technical Specifications

Parameter	Value
Rated AC Power	3 500 W
Maximum AC Power	3 500 VA
Output Voltage	220 / 230 V AC
AC Voltage Range	184 – 264.5 V
Maximum Output Current	16 A
Maximum DC Input Power	7 000 W
Maximum DC Voltage	480 V
Nominal DC Voltage	380 V
Maximum Input Current	10 A
Maximum Efficiency	99.2%
European Efficiency	98.8%
Communication	RS485, Ethernet, Wi-Fi (optional), Home Network
Cooling	Natural convection
Dimensions (H × W × D)	280 × 370 × 142 mm
Weight	10.6 kg
Noise Level	<25 dBA
Protection Rating	IP65
Operating Temperature	-40°C to +60°C
Certifications	IEC62109-1/2, EN50438, VDE-AR-N-4105, CEI-021, G98/G99, CE, RoHS

B2B Offer

Planning to install the SolarEdge SE3500H-RW000BEN4 inverter? Contact us for wholesale offers or technical advice regarding the configuration of the SolarEdge Home Wave system.
