Solaredge SE4000H-RW000BEN4
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | SOLAREDGE |
| Inverter type | On-grid |
| Inverter phases | 1 |
| Max. AC power | 4000 |
| Max. DC power | 8000 |
| Output power | 4000 |
| MPPT | 1 |
| Amperage | 11.5 |
| WIFI | Tak |
| Ethernet | Yes |
| Compatible optimizers | Solaredge |
| Warranty | 12 |
| CN code number | 85044085 |
| Quantity per pallet | 40 |
| Country of origin | Israel |
| Weight | 8 |
| Width | 280 |
| Height | 370 |
| Depth | 142 |

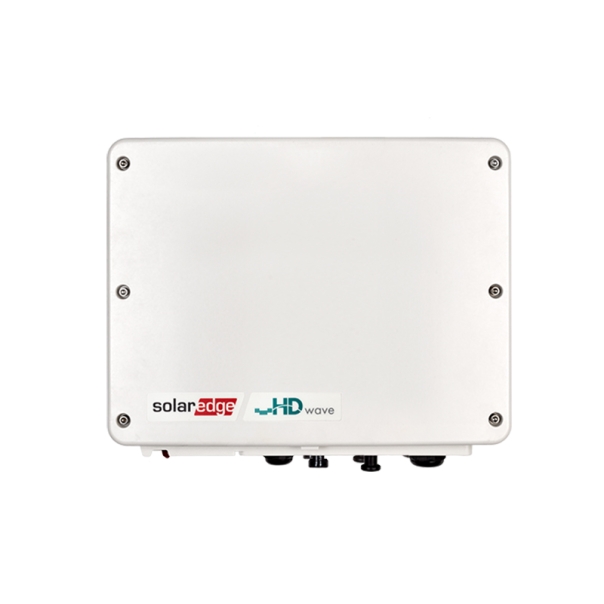

SolarEdge SE4000H-RW000BEN4 is a single-phase inverter with HD-Wave technology and a power output of 4 kW, designed to work with SolarEdge power optimizers. It offers a maximum efficiency of 99.2% and a European efficiency of 98.8%. Thanks to its IP65 protection rating and silent operation, it is ideal for residential and small commercial installations.
Downloads
- Other
- Certyfikat-CE-62109-61000-50581-EN.pdf
File size: 252 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
File size: 405 KB
- Certyfikat-NC-RfG-PL.pdf
File size: 473 KB
- Deklaracja zgodności CE EN.pdf
File size: 857 KB
- Deklaracja-zgodności-CE-PL.pdf
File size: 263 KB
- G99 Certificate of Compliance EN.pdf
File size: 756 KB
- Gwarancja-DE.pdf
File size: 67 KB
- Gwarancja-EN.pdf
File size: 166 KB
- Gwarancja-PL.pdf
File size: 383 KB
- Karta-Katalogowa-EN.pdf
File size: 182 KB
- Karta-Katalogowa-PL.pdf
File size: 175 KB
- se-single-phase-hd-wave-inverter-certificate-vde-0126-de.pdf
File size: 619 KB
- se-single-phase-hd-wave-inverter-certificate-vde-ar-n-4105-confo
File size: 693 KB
- se-single-phase-inverter-se2200h-se5000h-vde-na-schutz-certifica
File size: 517 KB
- se-three-phase-inverter-with-synergy-400v-480v-datasheet-de.pdf
File size: 388 KB
-
Variants
Product description
SolarEdge SE4000H-RW000BEN4 – Single-Phase HD-Wave Inverter 4 kW
Product Description
The SolarEdge SE4000H-RW000BEN4 inverter is a high-efficiency single-phase unit featuring HD-Wave technology, offering 4 kW of power and excellent energy conversion efficiency. Designed to work with SolarEdge power optimizers, it ensures maximum system performance and detailed module-level monitoring. With DC oversizing capability up to 200%, it enables optimal utilization of PV module power. Its compact, lightweight design, natural cooling, and IP65 protection make it an ideal solution for residential PV systems. Configuration and commissioning are conveniently managed via the SolarEdge SetApp.
Applications
- Single-phase photovoltaic installations
- Residential PV systems
- Installations using SolarEdge power optimizers
- Modernization and expansion of existing systems
- Projects requiring quiet and reliable operation
Main Advantages
- Output power 4 kW
- Maximum efficiency 99.2%, European efficiency 98.8%
- HD-Wave technology – high efficiency and reduced energy losses
- DC oversizing capability up to 200%
- Built-in module-level monitoring
- Communication: RS485, Ethernet, Wi-Fi (optional), ZigBee
- Protection rating IP65 – suitable for indoor and outdoor installation
- Configuration and commissioning via SetApp
Technical Specifications
| Parameter | Value |
|---|---|
| Rated AC Power | 4 000 W |
| Maximum AC Power | 4 000 VA |
| Output Voltage | 220 / 230 V AC |
| AC Voltage Range | 184 – 264.5 V |
| Nominal Frequency | 50 / 60 Hz ±5% |
| Maximum Output Current | 18.5 A |
| Maximum DC Input Power | 8 000 W |
| Maximum DC Voltage | 480 V |
| Nominal DC Voltage | 380 V |
| Maximum Input Current | 11.5 A |
| Maximum Efficiency | 99.2% |
| European Efficiency | 98.8% |
| Communication | RS485, Ethernet, Wi-Fi (optional), ZigBee, SolarEdge Home Network |
| Cooling | Natural convection |
| Dimensions (H × W × D) | 280 × 370 × 142 mm |
| Weight | 10.6 kg |
| Noise Level | <25 dBA |
| Protection Rating | IP65 |
| Operating Temperature | -40°C to +60°C |
| Certifications | IEC62109, EN50438, VDE-AR-N-4105, CEI-021, G98/G99, CE, RoHS |
B2B Offer
Planning to install a SolarEdge SE4000H-RW000BEN4? Contact us for wholesale offers or expert technical advice on SolarEdge Home Wave system configuration.
