Solaredge SE4K-RWBTEBEN4

F.Solaredge.3F.wifi.00040.RWBTEBEN4
Solaredge SE4K-RWBTEBEN4
Manufacturer SOLAREDGE

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer SOLAREDGE
Inverter type On-grid
Inverter phases 3
Max. AC power 4000
Max. DC power 5400
Output power 4000
Circuit breaker value 10
MPPT 1
Amperage 7
WIFI Tak
Ethernet Yes
Compatible optimizers Solaredge
Quantity per pallet 12
Country of origin Israel
Weight 26
Width 315
Height 540
Depth 260

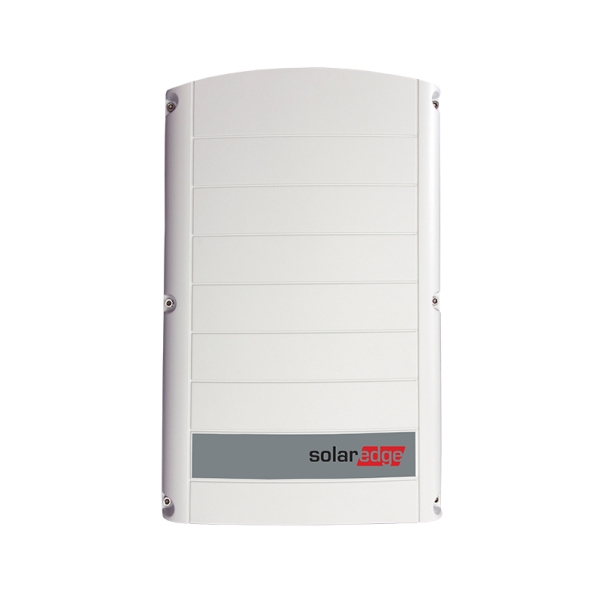

SolarEdge SE4K-RWBTBEN4 is a three-phase inverter with a power output of 4 kW, designed for short PV strings and full compatibility with SolarEdge power optimizers. It offers an efficiency of 97.8% and a European efficiency of 95.7%. With IP65 protection, Ethernet / RS485 communication, and configuration via SetApp, it is ideal for compact residential and small commercial PV installations.

Downloads

Download as PDF

Variants

Product description

SolarEdge SE4K-RWBTBEN4 – Three-Phase 4 kW Inverter for Short PV Strings

Product Description

The SolarEdge SE4K-RWBTBEN4 inverter is a compact and efficient three-phase device with a rated power of 4 kW, specifically designed for photovoltaic systems with shorter module strings. Working in conjunction with SolarEdge power optimizers, it ensures maximum energy yield and complete monitoring of each PV module’s performance. The SetApp technology allows fast configuration and commissioning via a mobile application, while built-in RS485 and Ethernet communication enables easy integration with monitoring systems. The inverter supports energy storage systems and Home Energy Management functionality, providing smart energy control for residential and small commercial installations.

Applications

  • Three-phase PV installations up to 4 kW
  • Systems with short PV module strings
  • Projects integrated with energy storage systems
  • Residential and small commercial PV systems
  • Installations requiring module-level monitoring

Main Advantages

  • Rated power 4 kW and maximum efficiency 97.8%
  • European efficiency 95.7%
  • Ready for integration with energy storage systems
  • Full compatibility with SolarEdge power optimizers
  • Configuration and operation via SetApp mobile application
  • Communication RS485, Ethernet, Wi-Fi / ZigBee (optional)
  • Protection class IP65 – suitable for indoor and outdoor installation
  • Natural cooling and low noise level (<50 dBA)
  • Smart energy management with Home Energy Management

Technical Specifications

ParameterValue
Rated AC Power4 000 W
Maximum AC Power4 000 VA
Output Voltage (L-L / L-N)400 / 230 V
AC Voltage Range184 – 264.5 V
Nominal Frequency50 / 60 Hz ±5%
Maximum Output Current6.5 A
Maximum DC Input Power5 400 W
Maximum DC Voltage450 V
Nominal DC Voltage375 V
Maximum Input Current11.5 A
Maximum Efficiency97.8%
European Efficiency95.7%
CommunicationRS485, Ethernet, Wi-Fi, ZigBee, GSM (optional)
CoolingReplaceable fan
Dimensions (H × W × D)540 × 315 × 260 mm
Weight27 kg
Noise Level<50 dBA
Protection ClassIP65
Operating Temperature-40°C to +60°C
CertificationsIEC62109-1/2, EN50549-1, IEC61000-6-2/-3/-11/-12, CE, RoHS

Model Comparison

Compared to the SE3K model, the SE4K-RWBTBEN4 inverter offers higher output power and an AC current of up to 6.5 A, while maintaining the same efficiency, dimensions, and IP65 protection. It is an optimal choice for residential PV systems up to 4 kW and small commercial installations.

B2B Offer

Looking for the SolarEdge SE4K-RWBTBEN4 inverter? Contact us for a wholesale offer or technical consultation for SolarEdge system design and configuration.
