Stalex Dual-Support Ground Structure – V2-C-U 2v4 ( for 8 modules )

Stalex V2-C-U 2v4 is an innovative mounting system designed with flexibility and durability in mind. This dual-support ground structure is ideal for both private prosumer investments and commercial projects.

Key product features:

• Solid construction: Made from high-quality S355 steel, coated with Magnelis ZM310/430, ensuring long-lasting corrosion protection.

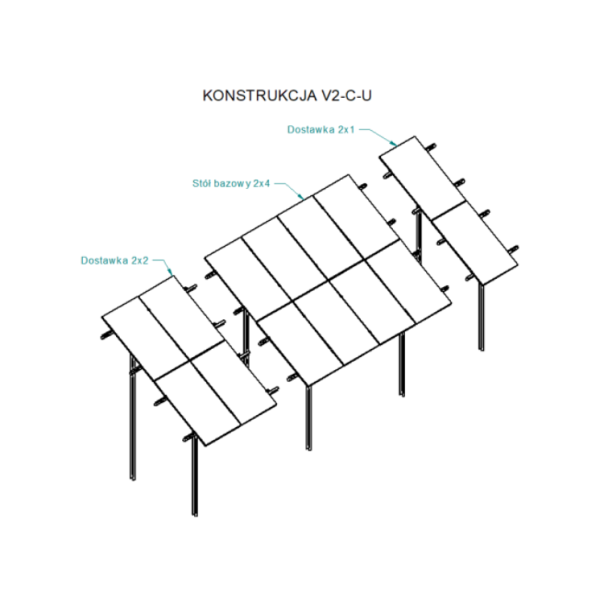

• Configuration versatility: Allows the installation of 8 modules in a 2x4 layout with the possibility of expansion using additional tables or extensions to 10, 12, and more modules.
• Ease of installation: Simple and intuitive design allows for quick and efficient installation, saving time and installation costs.
• Durability and reliability: The structure does not require fixed bracing, increasing its flexibility and efficiency during use.
• Weather resistance: Magnelis ZM430 coating provides long-lasting corrosion resistance, even in harsh environmental conditions.

Technical data:

• Construction: Dual-support, driven into the ground, made of high-quality S355 steel with Magnelis ZM310/430 coating.
• Tilt angle: 30°, optimal for setting photovoltaic panels.
• Module layout: Standard 2x4 with the possibility of expansion to 2x5, 2x6, and more.
• Orientation: Vertical, ensuring efficient use of space.
• Number of modules: 8, expandable to 10, 12, and more with additional extensions.
• Panel size: Customized to client specifications.
• Driving depth: Minimum 1.5 m, ensuring stability even in difficult ground conditions.
• Protective coating: Magnelis ZM430, providing long-lasting corrosion resistance.

Stalex V2-C-U 2v4 is a reliable solution for any type of photovoltaic installation, both commercial and private. With its solid construction, flexible configuration options, and ease of installation, this system is an excellent choice for demanding photovoltaic projects. Stalex offers a 10-year warranty on its structures, which attests to their exceptional durability and reliability.
