Deye SUN-80K-SG02HP3-EU-EM6
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | DEYE |
| Inverter type | Hybrid |
| Inverter phases | 3 |
| Max. AC power | 88000 |
| Max. DC power | 160000 |
| Output power | 80000 |
| MPPT | 6 |
| Amperage | 36+36+36+36+36+36 A |
| WIFI | Tak |
| Ethernet | No |
| Compatible energy storage | Deye |
| Warranty | 5 |
| Country of origin | China |
| Weight | 105 |
| Width | 606 |
| Height | 927 |
| Depth | 314 |

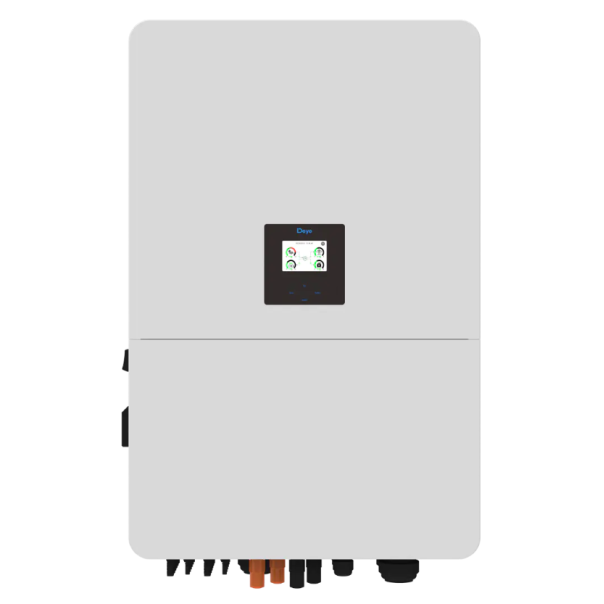

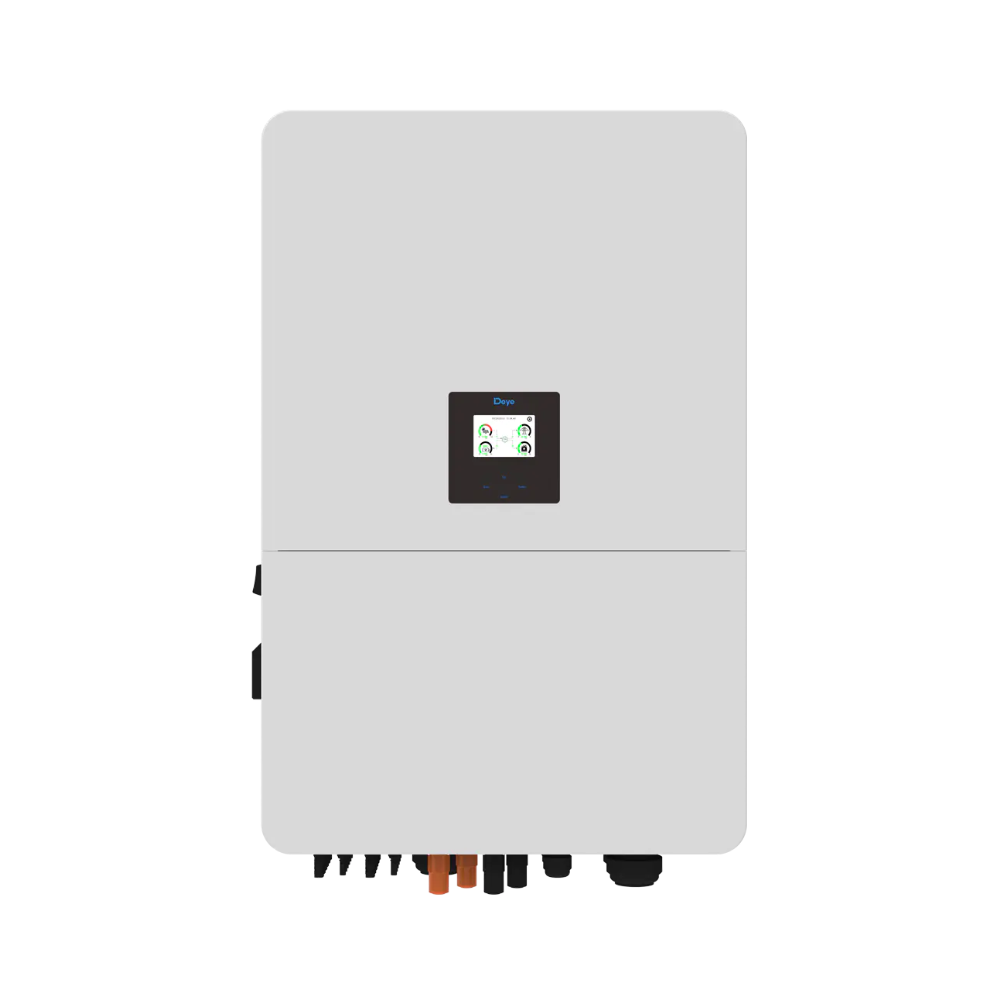

Deye SUN-80K-SG02HP3-EU-EM6 is a three-phase HV hybrid inverter with a rated active power of 80 000 W, designed for large photovoltaic systems with high-voltage energy storage. The device operates with Li-Ion batteries within the range of 160–1000 V and uses two battery inputs with a maximum charging and discharging current of 80 + 80 A. The PV section supports up to 128 000 W of input power, a maximum voltage of 1000 V DC and 6 MPPT trackers with twelve strings in a 2+2+2+2+2+2 configuration. The maximum AC apparent power is 88 000 VA, while in off-grid mode the inverter can reach 150% of the rated power for 10 seconds. The maximum device efficiency is 98,7%, Euro efficiency is 98,1%, and the protection rating is IP65.
Variants
Product description
Deye SUN-80K-SG02HP3-EU-EM6 – three-phase HV 80 kW hybrid inverter
Product description
Deye SUN-80K-SG02HP3-EU-EM6 is the most powerful variant in the SUN-60/70/75/80K-SG02HP3-EU-EM6 series, designed for large three-phase PV installations with high-voltage energy storage. The model provides a rated active power of 80 000 W and a maximum apparent power of 88 000 VA, while on the photovoltaic side it can accept up to 128 000 W of input power. Six independent MPPT trackers support twelve strings in a 2+2+2+2+2+2 configuration and operate within the voltage range of 150–850 V, with a rated voltage of 650 V DC. The inverter operates with Li-Ion batteries of 160–1000 V, uses two battery inputs and enables charging and discharging with a current of up to 80 + 80 A. In off-grid operation, the instantaneous power can reach 150% of the rated value for 10 seconds. The maximum efficiency is 98,7%, while RS485, RS232 and CAN communication, intelligent air cooling and the IP65 enclosure support operation of the device in large commercial and industrial installations.
Application
- large three-phase PV systems with high-voltage energy storage,
- commercial and industrial installations requiring 80 kW inverter power,
- projects with an extensive DC section using multiple independent PV strings,
- systems with two battery inputs and Li-Ion batteries of 160–1000 V,
- systems operating on-grid, off-grid or with a diesel generator.
Key features
- rated AC active power: 80 000 W,
- maximum AC apparent power: 88 000 VA,
- maximum PV input power: 128 000 W,
- maximum PV access power: 160 000 W,
- 6 MPPT with twelve strings in a 2+2+2+2+2+2 configuration,
- maximum PV input current: 36 + 36 + 36 + 36 + 36 + 36 A,
- battery voltage range: 160–1000 V,
- maximum charging and discharging current: 80 + 80 A,
- instantaneous off-grid power: 150% of rated power for 10 s,
- maximum efficiency 98,7%, Euro efficiency 98,1% and IP65 protection rating.
Technical parameters
| Parameter | Value |
|---|---|
| Battery type | Li-Ion |
| Battery voltage range | 160–1000 V |
| Maximum charging current | 80 + 80 A |
| Maximum discharging current | 80 + 80 A |
| Li-Ion battery charging strategy | Self-adaptation to BMS |
| Number of battery inputs | 2 |
| Maximum PV access power | 160 000 W |
| Maximum PV input power | 128 000 W |
| Maximum PV input voltage | 1000 V DC |
| Start-up voltage | 180 V DC |
| MPPT voltage range | 150–850 V DC |
| Rated PV input voltage | 650 V DC |
| Maximum PV input current | 36 + 36 + 36 + 36 + 36 + 36 A |
| Maximum PV short-circuit current | 54 + 54 + 54 + 54 + 54 + 54 A |
| Number of MPPT / number of MPPT strings | 6 / 2+2+2+2+2+2 |
| Rated AC input / output active power | 80 000 W |
| Maximum AC input / output apparent power | 88 000 VA |
| Rated AC input / output current | 121,3 / 115,9 A |
| Maximum AC input / output current | 133,4 / 127,6 A |
| Maximum continuous Grid → Load AC current | 200 A |
| Off-grid peak power | 150% of rated power for 10 s |
| Power factor adjustment range | 0,8 leading to 0,8 lagging |
| Rated AC input / output voltage | 220 / 380 V; 230 / 400 V, 0,85Un–1,1Un |
| Rated grid frequency | 50 / 45–55 Hz; 60 / 55–65 Hz |
| Grid connection method | 3L + N + PE |
| THDi | <3% of rated power |
| DC injected current | <0,5% In |
| Maximum efficiency | 98,7% |
| Euro efficiency | 98,1% |
| MPPT efficiency | >99% |
| Communication interface | RS485, RS232, CAN |
| Monitoring mode | GPRS / Wi-Fi / Bluetooth / 4G / LAN – optional |
| Operating temperature range | -40°C to +60°C; derating above 45°C |
| Permissible ambient humidity | 0–100% |
| Maximum installation altitude | 3000 m |
| Noise level | ≤65 dB |
| Inverter topology | Non-isolated |
| Dimensions | 606 × 927 × 314 mm, excluding connectors and brackets |
| Weight | 105 kg |
| Protection rating | IP65 |
| Cooling type | Intelligent air cooling |
Model comparison
Deye SUN-80K-SG02HP3-EU-EM6 is the most powerful variant in the family comprising the 60, 70, 75 and 80 kW models. Compared with the directly lower SUN-75K-SG02HP3-EU-EM6, it increases the rated active power from 75 000 W to 80 000 W, the maximum apparent power from 82 500 VA to 88 000 VA and the maximum PV input power from 120 000 W to 128 000 W. The maximum PV access power increases from 150 000 W to 160 000 W, while the maximum AC output current increases from 119,6 A to 127,6 A. Both variants retain six MPPT trackers, twelve strings, two battery inputs and a battery voltage range of 160–1000 V. The 80 kW model is therefore designed for the largest installations available in this series, where the highest AC and PV parameters are required.
B2B offer
Deye SUN-80K-SG02HP3-EU-EM6 is a solution for large commercial and industrial installations using high-voltage energy storage and an extensive PV section. Contact Gvolt IT for a B2B quotation and to select compatible HV batteries and other components of the Deye system.
