GoodWe GW12K-ET-20 G2 AFCI
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications

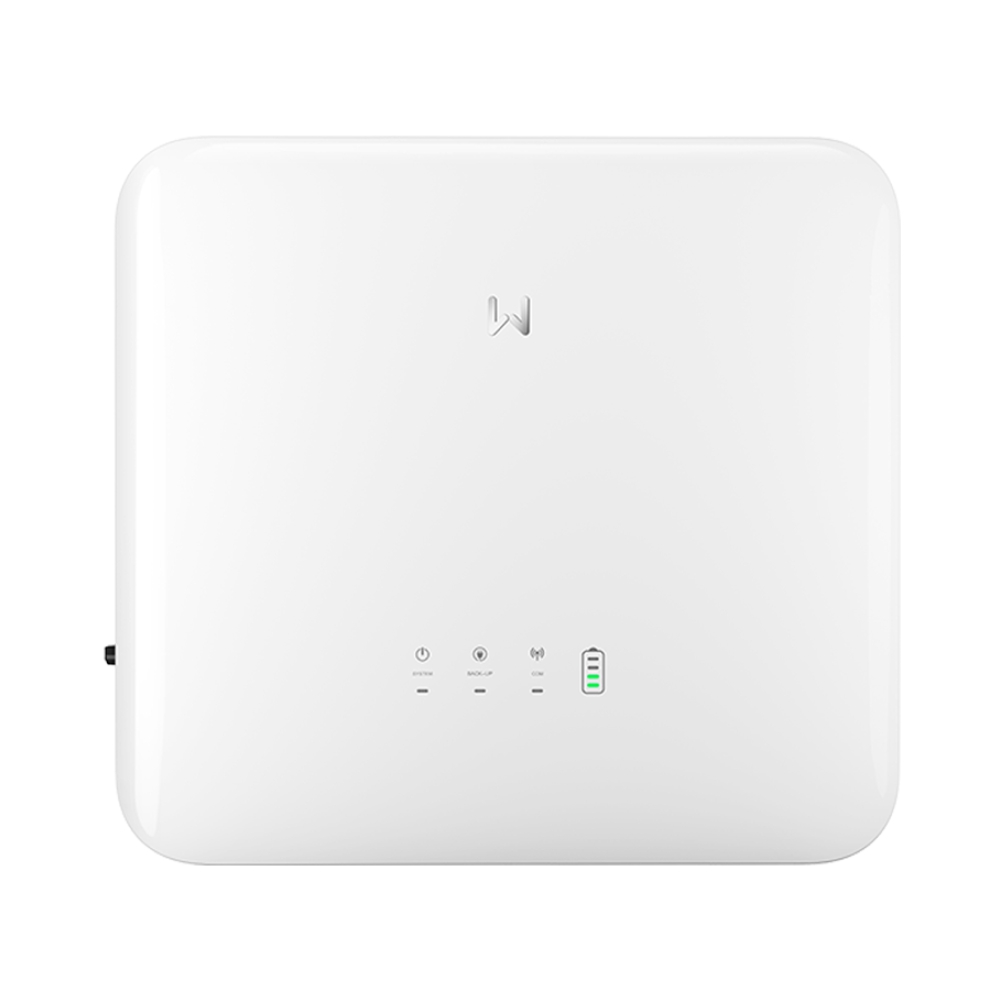

GoodWe GW12K-ET-20 – 12 kW Hybrid Inverter with 3 MPPT and Emergency Power Supply
The GoodWe GW12K-ET-20 is a powerful new-generation three-phase hybrid inverter from the ET G2 series, designed for demanding photovoltaic installations with high energy consumption and a need for reliable emergency power. With its high nominal power and support for 3 independent MPPTs, it enables maximum utilization of solar energy even under complex installation conditions.
The inverter integrates seamlessly with high-voltage energy storage systems (HV) and smart home solutions. It ensures a smooth transition to emergency power mode in case of grid failure (UPS function), which is especially important for users relying on heat pumps, air conditioning systems, or IT infrastructure. Its advanced communication options and remote monitoring capabilities make day-to-day management of the system simple and efficient.
Downloads
- Other
- Certificate IEC 63027 GW(6-15)K-ET-20 EN.pdf
File size: 1 MB
- Certificate IEC62109 EN62109 CE LVD GW(6-15)K-ET-20 EN.pdf
File size: 2 MB
- Certyfikat NC-RfG GW(6-15)K-ET-20 PL_1.pdf
File size: 13 MB
- Communications Module Compatibility Sheet GW(6-15)K-ET-20 EN.pdf
File size: 1 MB
- Datasheet GW(6-15)K-ET-20 EN.pdf
File size: 385 KB
- Description of the communication port GW(6-15)K-ET-20 EN.pdf
File size: 6 MB
- Inverter compatible energy storage units GW(6-15)K-ET-20 EN.pdf
File size: 338 KB
- Shortened installation manual GW(6-15)K-ET-20 EN.pdf
File size: 14 MB
-
Variants
Product description
GoodWe GW12K-ET-20 – 12 kW Hybrid Inverter with 3 MPPT and Emergency Power Supply
The GoodWe GW12K-ET-20 is a powerful new-generation three-phase hybrid inverter from the ET G2 series, designed for demanding photovoltaic installations with high energy consumption and a need for reliable emergency power. With its high nominal power and support for 3 independent MPPTs, it enables maximum utilization of solar energy even under complex installation conditions.
The inverter integrates seamlessly with high-voltage energy storage systems (HV) and smart home solutions. It ensures a smooth transition to emergency power mode in case of grid failure (UPS function), which is especially important for users relying on heat pumps, air conditioning systems, or IT infrastructure. Its advanced communication options and remote monitoring capabilities make day-to-day management of the system simple and efficient.
???? Key Features and Advantages:
UPS emergency power function – instant switch to backup mode in the event of a failure
Compatible with HV Li-Ion batteries (150–720 V)
3 MPPTs – maximum design flexibility for PV installations
Built-in Smart Meter – no external component required
Supports EV chargers and SG Ready smart devices
Advanced communication: RS485, CAN, WiFi, LAN, Bluetooth
High efficiency and low energy losses
Passive cooling, quiet operation, IP66 protection rating
⚙️ Technical Specifications (Key Parameters):
Inverter type: Hybrid, three-phase
AC output power: 12,000 W
Number of MPPTs: 3
Maximum efficiency: 98.2%
European efficiency: 97.5%
Battery voltage range: 150 – 720 V
Max. charging/discharging power: 18,000 W / 13,200 W
Max. PV input power: 19,200 W
MPPT voltage range: 120 – 850 V
Nominal input voltage: 620 V
Nominal AC output voltage: 400 / 380 V
Max. AC output current: 17.4 A
Emergency power (UPS): 12,000 VA (up to 18,000 VA for 60 seconds)
Nighttime consumption: <15 W
Dimensions: 496 × 460 × 221 mm
Weight: 25 kg
Noise level: <45 dB
Protection rating: IP66
Topology: Non-isolated
With its high performance, extensive integration capabilities, and resistance to harsh weather conditions, the GoodWe GW12K-ET-20 is an ideal choice for large households and small to medium-sized businesses seeking maximum energy independence and reliable power supply.
