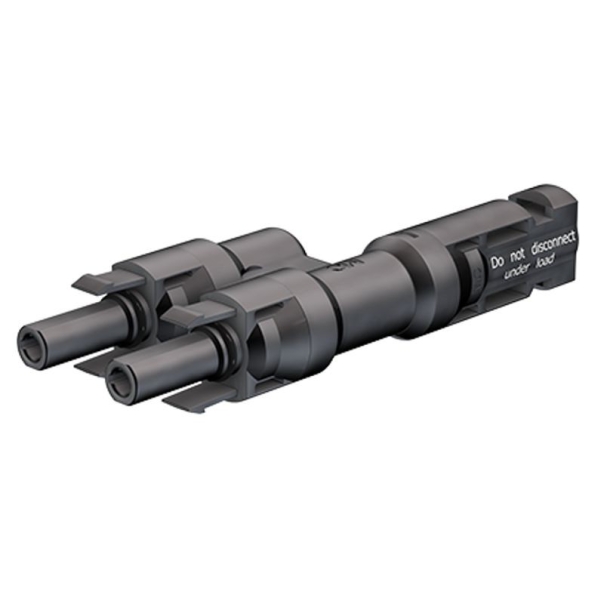

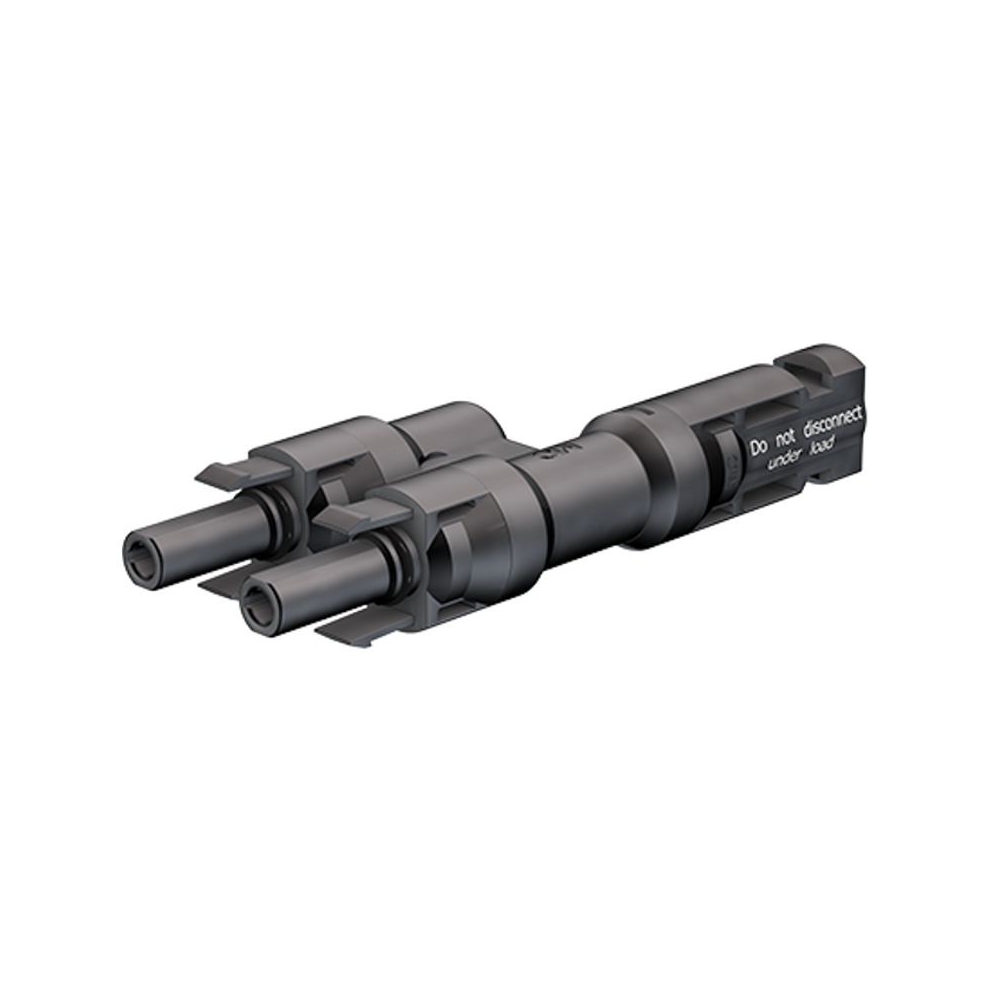

TRIPLE MC4 (PLUG) MC-PV-AZB4 FOR PARALLEL CONNECTIONS

Inne.MC4.Staubli.trojnikmc4.wtyk
TRIPLE MC4 (PLUG) MC-PV-AZB4 FOR PARALLEL CONNECTIONS
Manufacturer Staubli

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

TRIPLE MC4 (PLUG) MC-PV-AZB4 FOR PARALLEL CONNECTIONS Original MC4 AZB4 triple from Staubli (Multi-Contact) FFM - 2x socket (-) KST4... → plug (+) KBT4

Downloads

Download as PDF

Variants

Product description

TRIPLE MC4 (PLUG) MC-PV-AZB4 FOR PARALLEL CONNECTIONS Original MC4 AZB4 triple from Staubli (Multi-Contact) FFM - 2x socket (-) KST4... → plug (+) KBT4 Technical specifications of the MC4 triple: Type of contact: 4mm diameter banana connector, made of tin-plated copper, resilient elements are placed inside the sockets to improve electrical contact - Multi-lams® Rated voltage: 1500 V DC (UL) Rated current: 50 A Test voltage: 12 kV Ambient temperature: -40°C… +75°C (UL) Max operating temperature: 105°C (STAUBLI) Degree of protection: IP67 in connection state IP2X in disconnection state Measurement category / pollution degree: CAT III / 2 Contact resistance: ≤ 0.5mΩ Protection class: II Insulation: PC Certificate: UL according to UL 6703 standard - E343181
