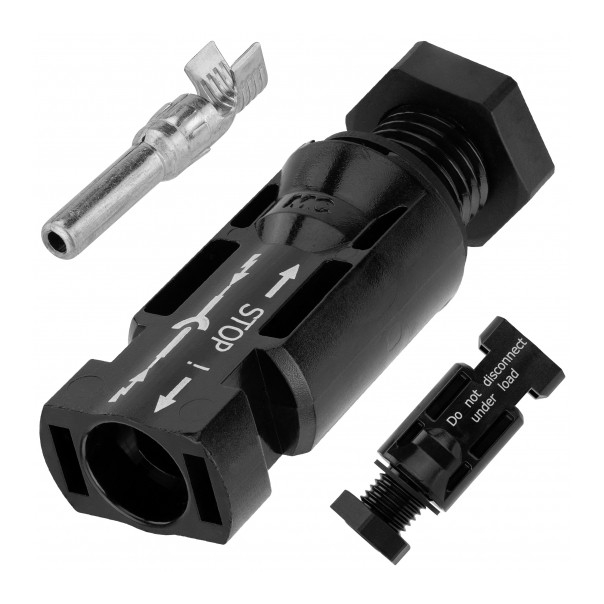

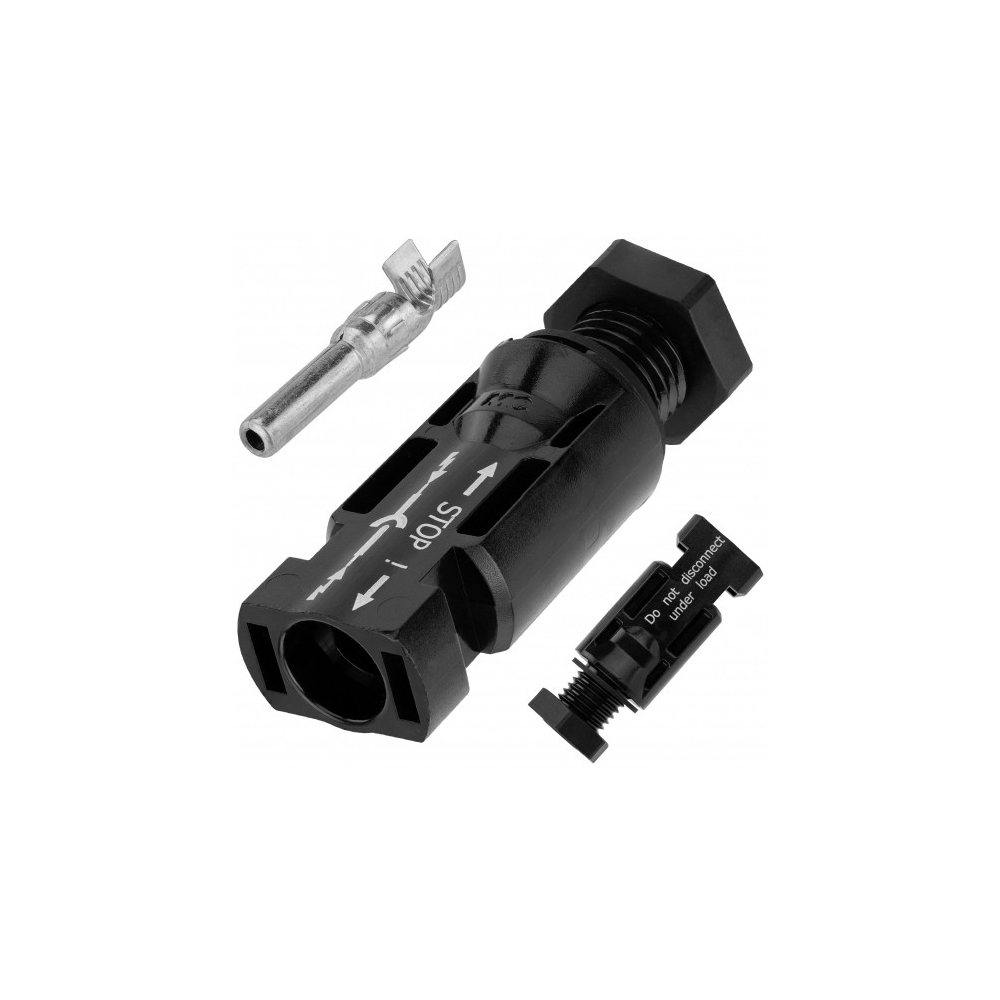

MC4 serial connector for switchboard plug

Inne.MC4.Staubli.wtyczka.rozdzielni
Manufacturer Staubli

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

CONNECTOR MC4 FOR DISTRIBUTION BOXES 1000V DC + - MC4 connectors are used in photovoltaic installations to connect cables on the DC side.

Downloads

Variants

Product description

CONNECTOR MC4 FOR DISTRIBUTION BOXES 1000V DC + - MC4 connectors are used in photovoltaic installations to connect cables on the DC side. SPECIFICATION: Set of MC4 connectors (male + female) for mounting on distribution boxes / enclosures. Rated current: 30A Rated voltage: 1000 V DC Conductor cross-section: 2.5-6 mm2 Temperature range: -40 ~+ 90 C Surge voltage category: III Protection class: IP67 Housing material: PPO Connector material: Silver-plated copper Wire connection method: Crimping Kit for mounting on distribution boxes / enclosures.
