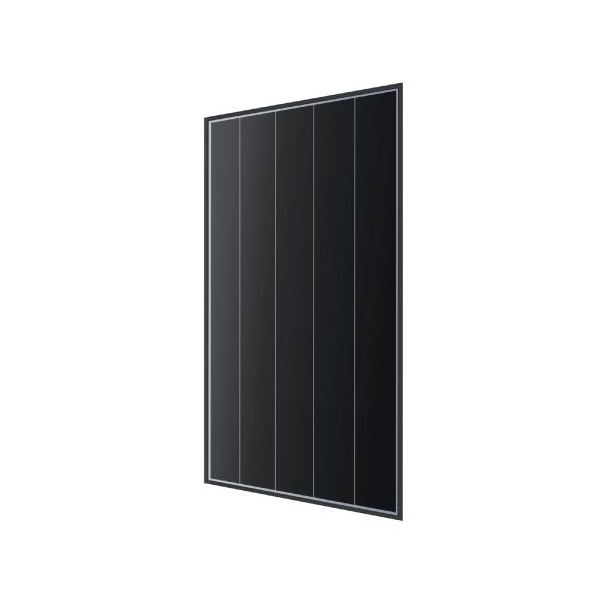

Hyundai HiE-S440HG-440 Wp (BFR)

The presented Hyundai HiE-S440HG-440 Wp (BFR) panel is a phenomenon in the market of photovoltaic panels. The innovative G12 PERC Shingled tile technology represents an advanced generation of solar panels that combines PERC technology with a shingled arrangement, ensuring higher efficiency and better power density on the panel.

Key features of the Hyundai HiE-S440HG-440 Wp (BFR) photovoltaic module:

G12 PERC Shingled technology provides ultra-high efficiency with better performance in low sunlight conditions. Maximizes installation capacity in limited space.
Anti LID/PID – LID – light-induced degradation. PID – potential induced degradation.
Mechanical durability – tempered glass and reinforced frame withstand challenging weather conditions.
Corrosion resistance.
Laboratory tests UL/VDE.
25-year warranty on products – for material and workmanship.
25-year performance warranty – first year 98.0%, linear warranty after the second year: 0.55% annual degradation.
Technical data for the Hyundai HiE-S440HG-440 Wp (BFR) photovoltaic panel:
Maximum power (Pmpp): 440 Wp
Open-circuit voltage (Voc): 43.70V
Short-circuit current (Isc): 12.90V
Voltage at Pmax (Vmpp): 36.30V
Current at Pmax (Impp): 12.13A
Module efficiency: 21.1%
Cell type: PERC – Mono-Crystalline Silicon Shingled
Maximum system voltages: 1,500 V
Dimensions: 1899 x 1096 x 30 mm (L x W x H)
Weight: 21.8 kg
Cells: 320 cells (210x 210 mm)
Output cables: 4mm2, length +500mm/-1100mm vertically, +220mm/-180mm horizontally
Maximum overload protection current: 25A

Hyundai Energy Solutions, founded in 1972, is a global leader in the field of renewable energy, offering excellent quality photovoltaic modules thanks to its long-standing experience in the market. Hyundai distinguishes itself with significant financial support, resulting in high durability and excellent electrical parameters of solar panels, enabling the use of the latest technologies.
