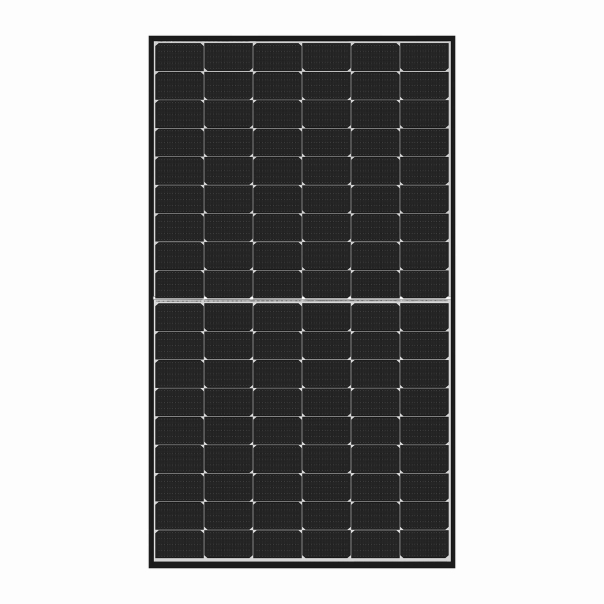

Jinko Solar JKM435N-54HL4-V 435Wp (BFR)

Jinko Solar presents the photovoltaic panel JKM435N-54HL4-V, which marks a breakthrough in energy efficiency. With an impressive power of 435Wp, this module is ready to generate a significant amount of electrical energy while maintaining environmental friendliness.

Product Features:

The Jinko JKM435N-54HL4-V photovoltaic module offers an impressive power of 435 watts, translating to efficient utilization of solar energy and the generation of a larger amount of current.
By using innovative BFR technology, this module efficiently harnesses sunlight, increasing overall efficiency and extending the panel's lifespan.
The JKM435N-54HL4-V panel is designed with technological evolution in mind. Jinko Solar engineers paid attention to every detail to create a product compliant with the latest industry standards.
Jinko Solar modules are known for their strength and durability. The construction of this model guarantees a long lifespan, resistance to weather conditions, and reliable operation over time.
In consideration of the environment, Jinko Solar has applied BFR technology, signifying a more sustainable production process that reduces environmental impact.
It is designed for easy installation, facilitating the setup for both professionals and enthusiasts.

Technical Specifications:

Dimensions: 1762×1134×30mm
Weight: 22kg
Cells: 120 (6x20)
Maximum Power: (Pmax) 435Wp
Maximum Power Voltage: (Vmp) 32.59V
Maximum Power Current: (Imp) 13.35A
Open Circuit Voltage: (Voc) 39.16V
Short Circuit Current: (Isc) 13.50A
Maximum System Voltage: 1000/1500V, DC (IEC)
Maximum Series Fuse Rating: 25A
Cable Length (-): 200 mm
Cable Length (+): 400 mm
Cell Type: N-type
Product Warranty (years): 15
Performance Warranty (years): 30
Front Glass: 3.2 mm, anti-reflective coating, high transmission rate, low iron content, tempered glass
Frame: Anodized aluminum alloy

Key Features of the Jinko JKM430N-54HL4-V Photovoltaic Module:

SMBB Technology - Improved light capture and electrical energy storage ensure enhanced output power and module reliability.
PID Resistance - Excellent protection against power loss due to photovoltaic module-induced voltage degradation (PID) through an optimized mass production process and material control.
Resistance to Extreme Climate Conditions - High resistance to salt mist and ammonia.
N-type module equipped with Hot 2.0 technology demonstrates higher reliability and lower LID/LETID degradation.
Greater resistance to mechanical loads - Confirmed resistance to wind load (4000 Pa) and snow load (6000 Pa).
Jinko Solar JKM435N-54HL4-V 435Wp (BFR) EVO2 is not just a photovoltaic panel; it is modern technology translating into energy efficiency. Thanks to advanced solutions, this panel is an excellent choice for those looking to maximize solar energy potential while caring for the natural environment.
