DC+AC SH 117 Connection combiner box

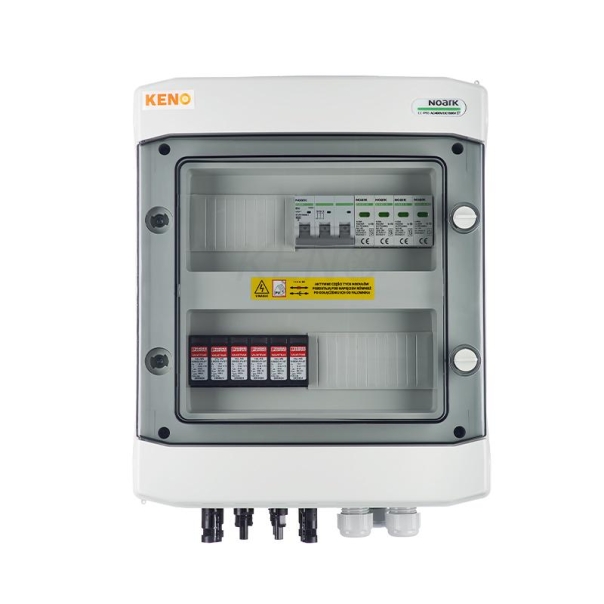

KENO - SH-117 DCAC - DC+AC CONNECTION COMBINER BOX WITH 1000V TYPE 2 SURGE ARRESTER, 2X PV STRINGS, 2X MPPT // AC TYPE 2 SURGE ARRESTER, 16A 3-PHASE CIRCUIT BREAKER

The KENO - SH-117 DCAC connection combiner box is an excellent choice for small and medium-sized residential and industrial installations. Its versatile application is due, among other things, to its IP65 protection class, allowing for installation not only in enclosed spaces but also in open areas. The KENO connection combiner box is a set of devices from various manufacturers designed for use in isolated and grounded photovoltaic installations. It is intended for powering photovoltaic inverters, protecting against short circuits and overloads, as well as protecting against the effects of intermediate discharges on both AC and DC sides.

Advantages of the KENO - SH-117 DCAC combiner box:

Each connector is tested for correctness of assembly
Unique, ultra-flexible tinned copper wire, tested at 6000V, with a predicted service life of at least 25 years
5-year product warranty
Rated enclosure insulation voltage - AC 400V
Rated enclosure insulation voltage - DC 1500V
Fewer cables thanks to component mounting on a special Noark rail
Door with option to change opening direction - Error-resistant and easier installation due to mounting AC components on so-called busbars
Each combiner box is manufactured under strict supervision with a two-stage verification process and has an individual serial number
Characteristics of the KENO - SH-117 DCAC connection combiner box:
Number of PV strings: 2
Number of surge arresters: 2
DC surge arrester: Phoenix T2
AC surge arrester: Noark T2
Circuit breaker: Noark B 16A 3-phase
IP protection class: IP65
Rated insulation voltage: 400V AC, 1500V DC
UV resistance: Yes
Standard warranty: 5 years
