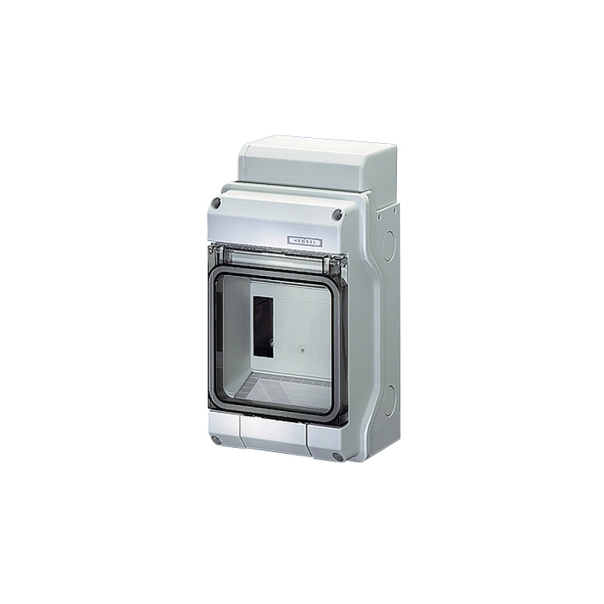

Modular distribution board HENSEL KV PC 8104

Small distribution boards for outdoor unshielded installations, such as surface-mounted modular PV 1x4.5 distribution board, model KV PC 8104, are ideal for applications requiring compact size and resistance to atmospheric conditions. This specific distribution board is characterized by the absence of PE and N terminals, which is essential for the application's specificity and installation configuration. Advantages of the HENSEL KV PC 8104 distribution board: 1 row Side walls without embossing For outdoor unshielded installations For mounting devices up to 63 A, 35 mm busbar With transparent doors Lock for doors and sealing kit - Additional equipment With cable outlets protection Hole for devices to be broken out Protection degree: IP 65 Color: Grey, RAL 7035 Technical data of HENSEL KV PC 8104: Rated insulation voltage Ui = 400 V a.c. Ui = 1000 V d.c. Heat dissipation capability Pde = 12 W according to PN 60670-24 Protection class: II Material PC (polycarbonate) Width 126 mm Height 228 mm Depth 111 mm Weight 0.627 kg
