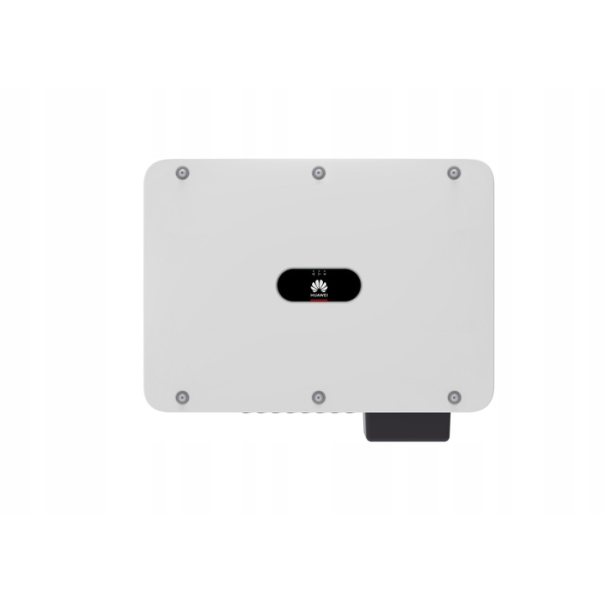

HUAWEI SUN 2000-36KTL-M3

F.Huawei.3F.withoutwifi.00360.M3
Manufacturer HUAWEI

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer HUAWEI
Inverter type On-grid
Inverter phases 3
Max. AC power 36000
Output power 36000
Circuit breaker value 80
MPPT 4
Amperage 26
WIFI Nie
Ethernet No
Compatible optimizers Huawei
Warranty 5
CN code number 85044086
Quantity per pallet 4
Country of origin China
Weight 25
Width 53
Height 64
Depth 27
The HUAWEI SUN 2000-36KTL-M3 inverter is a three-phase grid-connected PV inverter that converts direct current generated by photovoltaic chains into alternating current and supplies energy to the power grid. The HUAWEI SUN 2000-36KTL-M3 is used in grid-connected photovoltaic installations located on the roofs of industrial and commercial buildings, as well as in small ground-mounted installations. The grid-connected installation consists of photovoltaic chains, grid-connected inverters, AC switches, and power distribution units.

Downloads

Variants

Product description

The HUAWEI SUN 2000-36KTL-M3 inverter is a three-phase grid-connected PV inverter that converts direct current generated by photovoltaic chains into alternating current and supplies energy to the power grid. The HUAWEI SUN 2000-36KTL-M3 is used in grid-connected photovoltaic installations located on the roofs of industrial and commercial buildings, as well as in small ground-mounted installations. The grid-connected installation consists of photovoltaic chains, grid-connected inverters, AC switches, and power distribution units.

Advantages of the HUAWEI SUN 2000-36KTL-M3 inverter:

Intelligent monitoring of 8 chains
Maximum efficiency 98.6%
Construction without additional fuses
Type II surge protectors for DC and AC
Technical data of the HUAWEI SUN 2000-36KTL-M3:

Maximum efficiency: 98.7%
Maximum input voltage: 1,100 V
Maximum current for MPPT: 26 A
Maximum short-circuit current for MPPT: 40 A
Start voltage: 200 V
MPPT working voltage range: 200 V ~ 1000 V
Nominal input voltage: 600 V
Number of MPPTs: 4
Maximum number of MPPT inputs: 2
Nominal active power AC: 36,000 W
Maximum apparent power AC: 40,000 VA
Nominal output current: 52.0 A
Maximum output current: 58.0 A
Dimensions (width x height x depth): 640 x 530 x 270 mm
Weight (with mounting plate): 43 kg
Protection class: IP66
The HUAWEI SUN 2000-36KTL-M3 inverter is an advanced solution that not only offers features to facilitate operation and monitoring but also ensures quiet operation and a long-term 5-year warranty, making it a reliable choice for photovoltaic installations.
