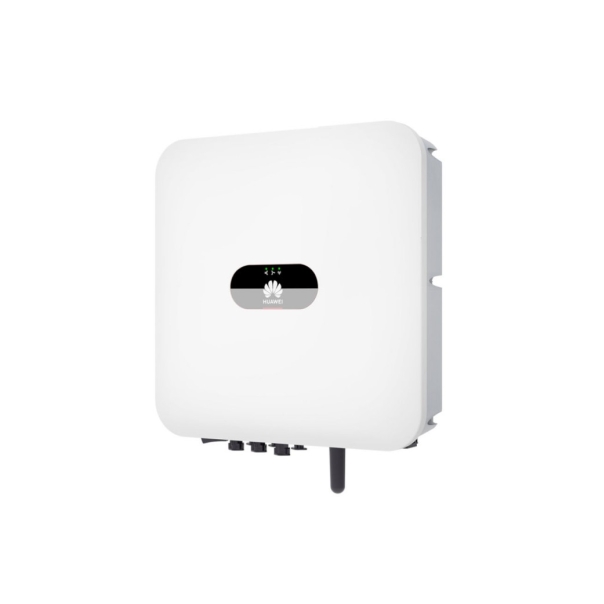

HUAWEI – SUN2000-6KTL-L1

HUAWEI - SUN2000-6KTL-L1 is a single-phase grid-connected string inverter that converts the direct current generated by photovoltaic chains into alternating current and supplies electrical energy to the power grid.

The HUAWEI SUN2000 inverter is used for grid-connected rooftop photovoltaic installations in residential areas. The installation consists of photovoltaic chains, inverters connected to the grid, AC switches, and power distribution units (PDUs). It has an IP65 protection rating and can be installed indoors or outdoors.

Advantages of the HUAWEI - SUN2000-6KTL-L1 inverter:

Single-phase inverter offering integration options with energy storage systems and optimization
Standard type II surge protection on both AC and DC sides
High efficiency reaching up to 98.2%
Cooling through natural convection ensures quiet and reliable operation
Wireless communication
Technical specifications of the HUAWEI SUN 2000-6KTL-L1:
Number of inverter phases: 1
Maximum efficiency: 98.4%
Recommended maximum PV power: 9000 Wp
Maximum input voltage: 600 V
Startup voltage: 100 V
Working voltage range on MPPT: 90 V - 560 V
Rated input voltage: 360 V
Maximum working current on MPPT: 12.5 A
Maximum short-circuit current on MPPT: 18 A
Number of MPPTs: 2
Number of inputs: 2
Working voltage range: 350 - 560 V DC
Maximum working current: 15 A
Maximum charging / discharging power: 5000 W4
Rated output power: 5000 W
Maximum apparent power: 6000 VA
Rated output voltage: 220 V / 230 V / 240 V
Maximum output current: 27 A
Weight (with mounting bracket): 12.3 kg
Dimensions (with mounting bracket): 365 x 365 x 140 mm
IP65 protection rating

The HUAWEI SUN 2000-6KTL-L1 inverter is an advanced solution that not only offers features to facilitate operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a reliable choice for photovoltaic installations.
