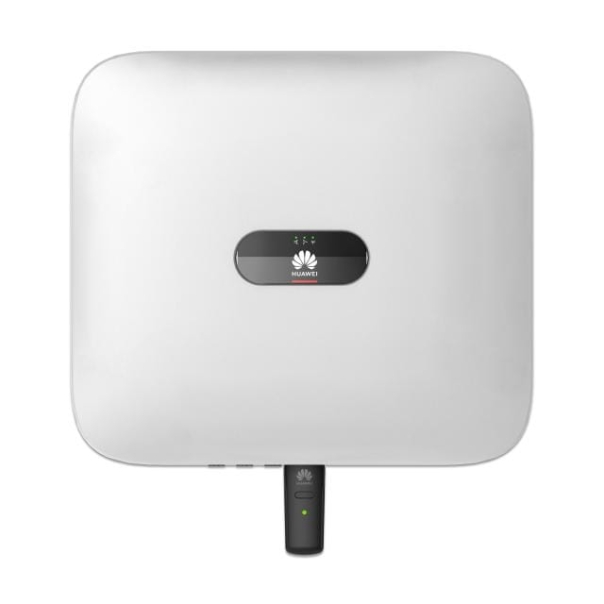

HUAWEI SUN2000-8KTL-M1 HC

F.Huawei.3F.H.wifi.00080.M1.HC
HUAWEI SUN2000-8KTL-M1 HC
Manufacturer HUAWEI

Product prices only visible after login. If you do not have an account, please register.

Technical specifications

Manufacturer HUAWEI
Inverter type Hybrid
Inverter phases 3
Max. AC power 8000
Max. DC power 12000
Output power 8000
Circuit breaker value 25
MPPT 2
Amperage 13.5
WIFI Tak
Ethernet Yes
Compatible energy storage Huawei
Compatible optimizers Huawei
Warranty 10
CN code number 85044086
Quantity per pallet 20
Country of origin China
Weight 17
Width 47
Height 52
Depth 17
The HUAWEI SUN 2000-8KTL-M1 HC inverter is a three-phase photovoltaic chain inverter, specially designed to convert direct current energy generated by photovoltaic panel modules into alternating current and deliver it to the electrical grid. Its application includes rooftop residential installations connected to the grid and small ground-mounted photovoltaic installations, also connected to the grid. In a typical grid-connected installation consisting of photovoltaic chains, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and delivering electrical energy. The high-current version is characterized by an allowable higher input current on the DC side.

Downloads

Download as PDF

Variants

Product description

The HUAWEI SUN 2000-8KTL-M1 HC inverter is a three-phase photovoltaic chain inverter, specially designed to convert direct current energy generated by photovoltaic panel modules into alternating current and deliver it to the electrical grid.

Its application includes rooftop residential installations connected to the grid and small ground-mounted photovoltaic installations, also connected to the grid. In a typical grid-connected installation consisting of photovoltaic chains, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and delivering electrical energy.

The high-current version is characterized by an allowable higher input current on the DC side.

Advantages of the HUAWEI SUN 2000-8KTL-M1 HC inverter:

Arc fault protection supported by AI - Up to 30% higher energy yield thanks to optimizers
"Plug & Play" battery interface
WLAN, Fast Ethernet, 4G communication support
Technical data of the HUAWEI SUN 2000-8KTL-M1 HC:
Number of inverter phases: 3
Maximum efficiency: 98.6%
Recommended maximum PV power: 12,000 Wp
Maximum input voltage: 1100 V
Starting voltage: 200 V
Operating voltage range of PV input: 140 V - 980 V
Rated input voltage: 600 V
Maximum current at MPPT: 13.5 A
Maximum short-circuit current at MPPT: 19.5 A
Number of MPPTs: 2
Number of inputs: 1
Operating voltage range of DC: 600 - 980 Vdc
Maximum DC operating current: 16.7 A
Maximum charging power: 10,000 W
Rated output power: 8000 W
Maximum apparent power: 8800 VA
Rated output voltage: 220 V AC / 380 V AC, 230 V AC / 400 V AC, 3W/ N+PE
Maximum output current: 13.5 A
Weight (with mounting bracket): 17 kg
Dimensions (with mounting bracket): 525 x 470 x 146.5 mm
Degree of protection: IP65

The HUAWEI SUN 2000-8KTL-M1 HC inverter is an advanced solution that not only offers functions to facilitate operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a solid choice for photovoltaic installations.
