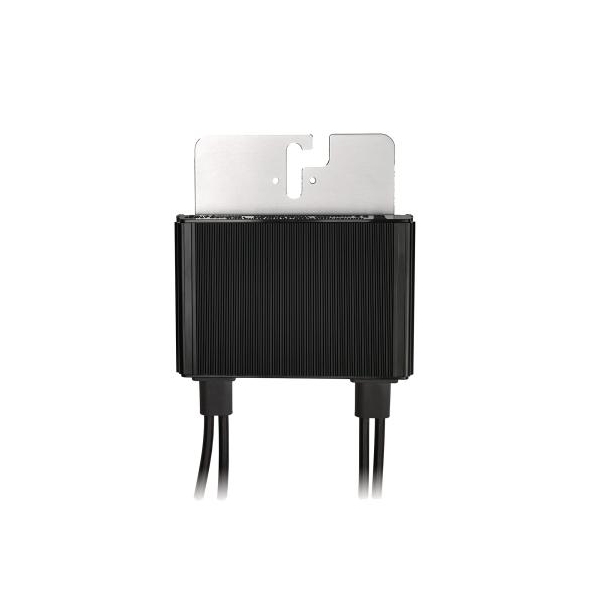

SolarEdge S500B-1G M4MRM (cabels +2,3m, -0,10m)

Product code: OP.Solaredge.S500B-1G.M4M.RM

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
CN code number	85044095
Country of origin	Israel
Width	129
Height	155
Depth	45
Quantity per pallet	840
MPPT	1
Weight	790
Warranty	25
Power	500

SolarEdge S500B-1G M4MRM is a power optimizer dedicated to PV modules up to 500 W. It offers a wide MPPT operating range of 12.5–105 V, providing flexibility in system design. High efficiency up to 99.5% ensures minimal energy loss, while the maximum input current of 15 A supports modern high-power modules. A robust IP68-rated enclosure guarantees reliability even in harsh outdoor conditions.

Other
- Certyfikat-IEC62109-1-EN.pdf
  File size: 384 KB
- Deklaracja-zgodności-CE-DE.pdf
  File size: 261 KB
- Deklaracja-zgodności-CE-EN.pdf
  File size: 262 KB
- Deklaracja-zgodności-CE-HU.pdf
  File size: 252 KB
- Deklaracja-zgodności-CE-PL.pdf
  File size: 251 KB
- Gwarancja-DE.pdf
  File size: 239 KB
- Gwarancja-EN.pdf
  File size: 198 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Instrukcja-montażu-EN.pdf
  File size: 3 MB
- Instrukcja-montażu-PL.pdf
  File size: 10 MB
- Karta-Katalogowa-DE.pdf
  File size: 433 KB
- Karta-Katalogowa-EN.pdf
  File size: 193 KB
- Karta-Katalogowa-HU.pdf
  File size: 193 KB
- Karta-Katalogowa-PL.pdf
  File size: 276 KB
- Karta-Katalogowa-PL1.pdf
  File size: 295 KB
- Kompatybilność-DE.pdf
  File size: 315 KB
- Kompatybilność-EN.pdf
  File size: 305 KB
- Kompatybilność-HU.pdf
  File size: 328 KB
- Kompatybilność-PL.pdf
  File size: 335 KB
- Skrócona-Instrukcja-obsługa-Multi.pdf
  File size: 3 MB
- Specyfikacja-podłączenia-PL.pdf
  File size: 331 KB
- Zasady-zgłaszania-reklamacji-PL.pdf
  File size: 61 KB

Download as PDF

Product description

SolarEdge S500B-1G M4MRM – Power optimizer 500 W

SolarEdge S500B-1G is an advanced optimizer designed specifically to work with SolarEdge inverters. It allows each PV module to operate at maximum efficiency, eliminating losses caused by mismatch, shading, or soiling. Thanks to its compact design and factory cables +2.3 m / -0.10 m, installation is quick and convenient, making it suitable for both residential and commercial systems.

Applications

PV systems for residential buildings and small commercial installations
Rooftop installations exposed to partial shading
Systems requiring maximum flexibility of PV string length
Projects with bifacial modules

Main advantages

Input power: 500 W
MPPT voltage range: 12.5 – 105 Vdc
Maximum efficiency: 99.5%
Weighted efficiency: 98.6%
Input current up to 15 A
Safe standby voltage: 1 ± 0.1 V
Protection rating: IP68 – full weather resistance
Cable length: (+) 2.3 m, (−) 0.10 m
Compliance with IEC, UL, VDE, RoHS standards
Warranty: 25 years

Technical parameters

Parameter	Value
Nominal DC power	500 W
Absolute input voltage (Voc)	125 Vdc
MPPT voltage range	12.5 – 105 Vdc
Max. short-circuit current (Isc)	15 A
Max. output current	15 A
Max. output voltage	80 Vdc
Max. efficiency	99.5%
Weighted efficiency	98.6%
Overvoltage category	II
Protection rating	IP68
Operating temperature	-40°C to +85°C
Connectors	MC4
Cable length	(+) 2.3 m, (−) 0.10 m
Weight	655 g
