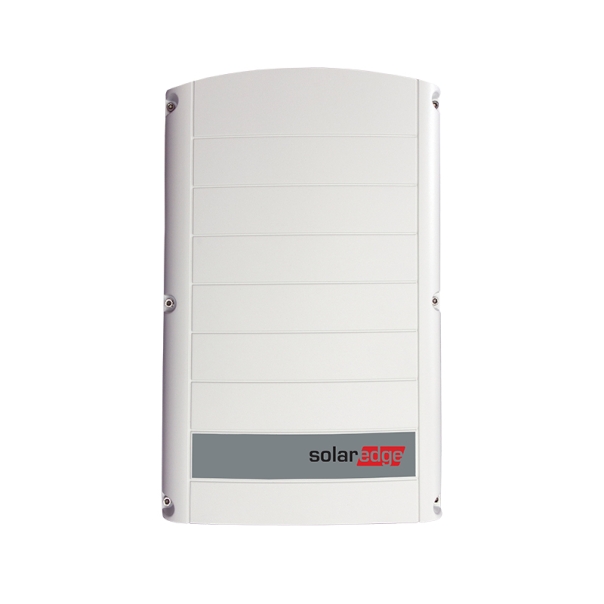

Solaredge SE16K-RW0TEBEN4
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | SOLAREDGE |
| Inverter type | On-grid |
| Inverter phases | 3 |
| Max. AC power | 16000 |
| Max. DC power | 21600 |
| Output power | 16000 |
| Circuit breaker value | 32 |
| MPPT | 1 |
| Amperage | 23 |
| WIFI | Tak |
| Ethernet | Yes |
| Compatible optimizers | Solaredge |
| Quantity per pallet | 12 |
| Country of origin | Israel |
| Weight | 35 |
| Width | 317 |
| Height | 549 |
| Depth | 264 |
SolarEdge SE16K-RW0TEBEN4 is a three-phase inverter with a power of 16 kW, designed to work with SolarEdge optimizers. It offers an impressive efficiency of 98%, configurable arc fault protection, and communication via RS485, Ethernet, and optionally Wi-Fi / GSM. Thanks to the SolarEdge SetApp application, commissioning takes just a few minutes, and the IP65 protection rating allows installation both indoors and outdoors.
Downloads
- Other
- Certyfikat-CE-62109-61000-50581-EN.pdf
File size: 240 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
File size: 420 KB
- Certyfikat-NC-RfG-PL.pdf
File size: 493 KB
- Deklaracja-zgodności-CE-DE.pdf
File size: 240 KB
- Deklaracja-zgodności-CE-EN.pdf
File size: 282 KB
- Deklaracja-zgodności-CE-PL.pdf
File size: 256 KB
- G99-Certificate-of-Compliance-EN.pdf
File size: 899 KB
- Gwarancja-DE.pdf
File size: 67 KB
- Gwarancja-EN.pdf
File size: 166 KB
- Gwarancja-PL.pdf
File size: 383 KB
- Karta-Katalogowa-EN.pdf
File size: 284 KB
- Karta-Katalogowa-PL.pdf
File size: 318 KB
-
Variants
Product description
SolarEdge SE16K-RW0TEBEN4 – Efficient 16 kW inverter for commercial installations
Product description
The SolarEdge SE16K-RW0TEBEN4 inverter is an advanced three-phase device with a power of 16 kW, dedicated to working with SolarEdge power optimizers. Thanks to fixed DC voltage technology, it allows the design of longer PV module strings and increases the overall system efficiency. It offers a maximum efficiency of 98% and a European efficiency of 97.7%, ensuring high energy performance even under variable sunlight conditions. Commissioning is conveniently carried out via the mobile SolarEdge SetApp application, while the built-in RS485 and Ethernet communication interfaces enable remote monitoring and integration with Smart Energy Management systems. The unit features integrated arc fault protection, optional RS485 surge protection, and a replaceable fan ensuring long service life.
Applications
- Three-phase commercial and industrial installations
- PV systems with SolarEdge optimizers
- Projects with power up to 16 kW
- Installations with smart energy management
- Systems requiring high efficiency and safety
Main advantages
- Nominal power 16 kW
- Maximum efficiency 98%
- Fixed DC voltage – longer strings and flexible system design
- Commissioning via SetApp mobile application
- Communication via RS485, Ethernet, Wi-Fi / GSM (optional)
- Integrated arc fault protection
- Protection rating IP65 – indoor and outdoor installation
- Replaceable fan, quiet operation (<50 dBA)
- Support for Smart Energy Management
Technical parameters
| Parameter | Value |
|---|---|
| Rated AC power | 16,000 W |
| Maximum AC power | 16,000 VA |
| Output voltage (L–L / L–N) | 400 / 230 V |
| AC voltage range | 184 – 264.5 V |
| Nominal frequency | 50 / 60 Hz ± 5% |
| Max. output current | 25.5 A |
| Max. DC input power | 21,600 W |
| Max. DC voltage | 1,000 V |
| Nominal DC voltage | 750 V |
| Max. input current | 23 A |
| Maximum efficiency | 98% |
| European efficiency | 97.7% |
| Communication | RS485, Ethernet, Wi-Fi / GSM (optional) |
| Cooling | Replaceable fan |
| Dimensions (H × W × D) | 549 × 317 × 264 mm |
| Weight | 30.7 kg |
| Noise level | < 50 dBA |
| Protection rating | IP65 |
| Operating temperature | –40 °C to +60 °C |
| Certificates | EN50549-1/-2, VDE-AR-N4105, CEI0-21, CEI0-16, AS3100, IEC-62109, G99, VFR2019 |
Model comparison
Within the SE12.5K–SE17K series, the SE16K-RW0TEBEN4 model stands out with an optimal balance between power and performance, offering 25.5 A of maximum AC current and 98% efficiency. Compared to the SE12.5K model, it provides 28% more output power while maintaining the same compact design and IP65 protection class. It is an ideal choice for installations with a power range of 15–17 kWp.
B2B offer
Contact us to obtain a wholesale offer for the SolarEdge SE16K-RW0TEBEN4 or to select a complete set of SolarEdge components – including optimizers, meters, and communication systems.
