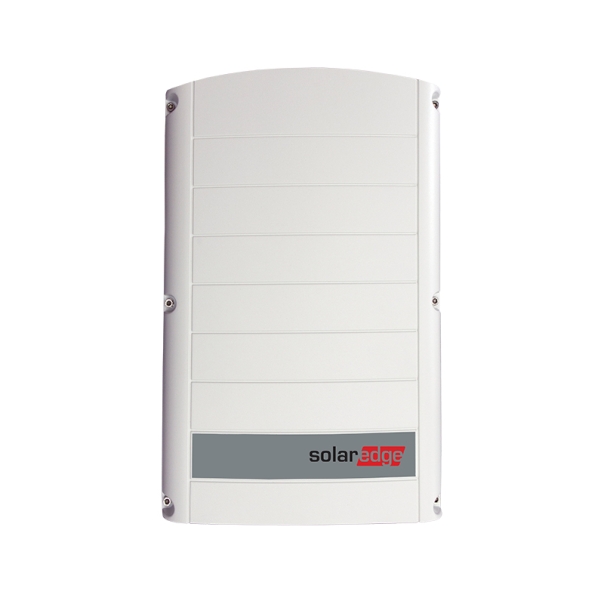

Solaredge SE30K-RW00IBNM4

Product code: F.Solaredge.3F.wifi.00300.RW00IBNM4

Manufacturer

Product prices only visible after login. If you do not have an account, please register.

Manufacturer	SOLAREDGE
Inverter type	On-grid
Inverter phases	3
Max. AC power	30000
Max. DC power	45000
Output power	30000
Circuit breaker value	63
MPPT	1
Amperage	43.5
WIFI	Tak
Ethernet	Yes
Compatible optimizers	Solaredge
Quantity per pallet	12
Country of origin	Israel
Weight	32
Width	317
Height	550
Depth	273

SolarEdge SE30K-RW00IBNM4 is a three-phase inverter with a power of 30 kW, designed to work with SolarEdge power optimizers in commercial installations. It offers high efficiency of 98.3%, built-in communication interfaces RS485 and Ethernet with optional Wi-Fi or GSM connectivity, as well as integrated DC Type II surge protection. The IP65-rated enclosure and quiet cooling system ensure reliable operation under all conditions.

Other
- Certyfikat-61000-EN.pdf
  File size: 374 KB
- Certyfikat-61000-PL.pdf
  File size: 606 KB
- Certyfikat-62109-EN.pdf
  File size: 387 KB
- Certyfikat-62109-PL.pdf
  File size: 870 KB
- Certyfikat-CE-EN.pdf
  File size: 240 KB
- Certyfikat-CE-PL.pdf
  File size: 282 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
  File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
  File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
  File size: 407 KB
- Certyfikat-NC-RfG-PL.pdf
  File size: 484 KB
- Certyfikat-VDE4105-DE.pdf
  File size: 485 KB
- Gwarancja-DE.pdf
  File size: 67 KB
- Gwarancja-EN.pdf
  File size: 166 KB
- Gwarancja-PL.pdf
  File size: 383 KB
- Karta-Katalogowa-DE.pdf
  File size: 973 KB
- Karta-Katalogowa-EN.pdf
  File size: 368 KB
- Karta-Katalogowa-PL.pdf
  File size: 530 KB

Download as PDF

Product description

SolarEdge SE30K-RW00IBNM4 – Three-phase 30 kW inverter for commercial installations

Product description

The SolarEdge SE30K-RW00IBNM4 inverter is a modern three-phase device designed for medium and large-scale PV systems. Developed to operate with SolarEdge optimizers, it maintains a fixed DC voltage and ensures a high conversion efficiency of 98.3%. The 29.99 kW model offers easy commissioning via the SolarEdge SetApp mobile application, built-in RS485 and Ethernet communication, and optional Wi-Fi or GSM connectivity. Integrated DC Type II surge protection and optional AC Type II protection enhance system safety. The IP65-rated enclosure and quiet cooling system (< 62 dBA) make this inverter ideal for both indoor and outdoor installations.

Applications

Commercial and industrial PV installations up to 30 kW
PV systems with SolarEdge optimizers and module-level monitoring
Rooftop and ground-mounted systems with multiple strings
Systems with export limitation and smart energy management
Facilities requiring high reliability and conversion efficiency

Main advantages

Rated power 29,990 W and maximum efficiency 98.3%
Fixed DC voltage – longer strings and simplified system design
Configuration via SolarEdge SetApp mobile application
Communication interfaces RS485, Ethernet, optional Wi-Fi / GSM
Integrated DC surge protection Type II (AC Type II optional)
Cooling with replaceable fan – noise level < 62 dBA
Protection class IP65 – suitable for indoor and outdoor installation
Compliance with IEC 62109, AS3100, EN 50549, VDE-AR-N 4105

Technical parameters

Parameter	Value
Rated AC power	29,990 W
Maximum AC power	29,990 VA
AC output voltage (L–L / L–N)	400 / 230 V (380 / 220 V)
AC voltage range	304 – 437 V (L–L) / 176 – 253 V (L–N)
Frequency	50 / 60 Hz ± 5%
Max. output current	43.5 A
Max. DC input power (STC)	45,000 W
Max. DC voltage	1,000 V
Nominal DC voltage	750 V
Max. DC input current	43.5 A
Maximum efficiency	98.3%
European efficiency	98%
Surge protection	DC Type II (integrated), AC Type II (optional)
Communication	2 × RS485, Ethernet, Wi-Fi / GSM (optional)
Operating temperature range	–40 °C … +60 °C
Protection class	IP65
Dimensions (H × W × D)	550 × 317 × 273 mm
Weight	32 kg
Noise level	< 62 dBA

Model comparison

The SE30K-RW00IBNM4 model sits between SE25K and SE33.3K, making it the best choice for 30 kW installations. Compared to the SE25K, it offers 20% more output power and higher AC current (43.5 A vs. 36.25 A) while maintaining the same efficiency and IP65-rated enclosure. In comparison to the SE33.3K, it features slightly lower weight and a better power-to-efficiency ratio, making it ideal for systems with approximately 120–150 PV modules.

B2B offer

Order the SolarEdge SE30K-RW00IBNM4 from G-VOLT and benefit from technical support for selecting optimizers, cabling, and system commissioning. Contact us to receive a wholesale offer and professional assistance in configuring your PV installation.
