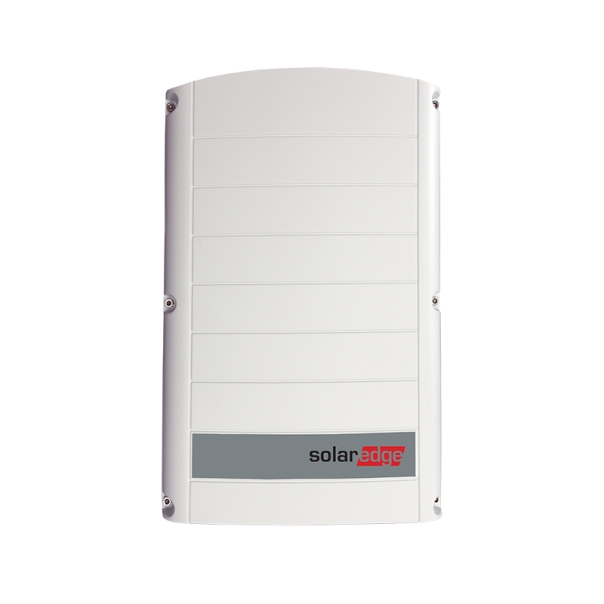

Solaredge SE4K-RW0TEBEN4
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | SOLAREDGE |
| Inverter type | On-grid |
| Inverter phases | 3 |
| Max. AC power | 4000 |
| Max. DC power | 5400 |
| Output power | 4000 |
| Circuit breaker value | 10 |
| MPPT | 1 |
| Amperage | 7 |
| WIFI | Tak |
| Ethernet | Yes |
| Compatible optimizers | Solaredge |
| Warranty | 12 |
| CN code number | 85044085 |
| Quantity per pallet | 12 |
| Country of origin | Israel |
| Weight | 20 |
| Width | 31 |
| Height | 54 |
| Depth | 19 |
Downloads
- Other
- Certyfikat-CE 62109-61000-50581-EN.pdf
File size: 240 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
File size: 420 KB
- Certyfikat-NC-RfG-PL.pdf
File size: 493 KB
- Deklaracja-zgodności-CE-DE.pdf
File size: 240 KB
- Deklaracja-zgodności-CE-EN.pdf
File size: 282 KB
- Deklaracja-zgodności-CE-PL.pdf
File size: 256 KB
- G98-Certificate-of-Compliance-EN.pdf
File size: 517 KB
- Gwarancja-DE.pdf
File size: 67 KB
- Gwarancja-EN.pdf
File size: 166 KB
- Gwarancja-PL.pdf
File size: 383 KB
- Karta-Katalogowa-EN.pdf
File size: 195 KB
- SE-SolaeEdge-Home-Wave-Inverter-Home-Short-String-Inverter-StorE
File size: 376 KB
- se-three-phase-certification-vde-ar-n-germany.pdf
File size: 2 MB
- se-three-phase-inverter-ammonia-test-report-declaration-de.pdf
File size: 87 KB
- se-three-phase-inverter-setapp-ds-de.pdf
File size: 225 KB
- se-three-phase-inverter-setapp-ds-pl.pdf
File size: 176 KB
- se-three-phase-inverter-u20-0125-certification-de.pdf
File size: 262 KB
-
Variants
Product description
The SolarEdge SE4K inverter is a three-phase device known for its high efficiency, designed for small to medium photovoltaic installations. Thanks to its constant input voltage system, this SolarEdge inverter operates most efficiently, regardless of the number of solar panels or current weather conditions. The combination of innovative digital technology and premium reliability are distinctive features of the SolarEdge inverter.
Advantages of the SolarEdge SE4K inverter:
Low noise level suitable for home use - no external fan - Exceptional efficiency (98%)
Prepared for use with energy storage
Compact and easy to install
Integrated module-level monitoring
Quick and easy inverter activation directly from a smartphone using the SolarEdge SetApp application
Internet connectivity via Ethernet or wirelessly
IP65 - suitable for outdoor or indoor installation
Longer chains possible due to the inverter's constant voltage
Intelligent energy management
Advanced safety solution - integrated arc fault protection
Technical data of the SolarEdge SE4K inverter
Maximum DC power: 5400 W
Maximum input voltage: 900 Vdc
Rated input voltage DC: 750 Vdc
Maximum input current: 7 Adc
Reverse polarity protection: YES
Maximum inverter efficiency: 98%
Nominal AC current power: 4000 VA
Maximum AC power: 4000 VA
AC - output voltage range - phase to neutral: 184 - 264.5 Vac
Maximum continuous output current (per phase): 6,5 A
Dimensions (height x width x depth): 540 x 315 x 191 mm
Weight: 18.9 kg
Operating temperature range: - 40 - +60
SolarEdge is a global leader in intelligent energy technology. With world-class engineering expertise and a constant focus on innovation, the company creates smart energy solutions that power our lives and shape the future. Their intelligent inverter solution revolutionizes the way energy is harvested and managed in photovoltaic systems, maximizing electricity production and reducing costs. SolarEdge continues to advance intelligent energy, offering innovative solutions for photovoltaic installations, energy storage, electric vehicle charging, UPS systems, and network services.
