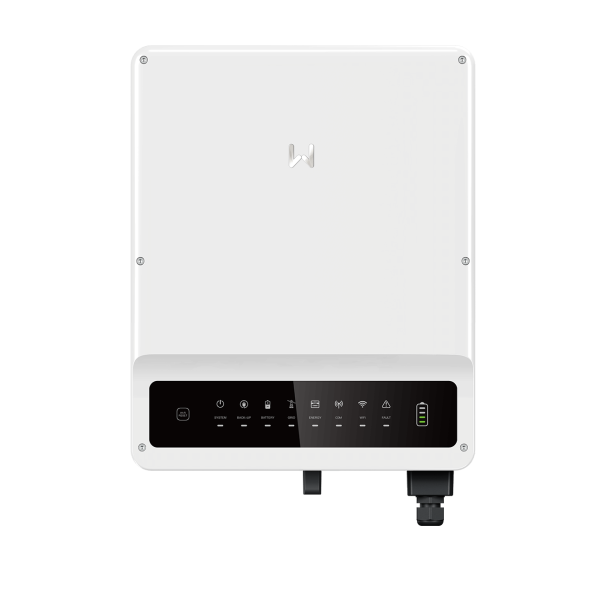

GoodWe GW8KN-ET PLUS+ ( 16A ) Hybrid Backup

The hybrid inverter GoodWe GW8KN-ET PLUS+ plays a key role as the central point of a photovoltaic installation, harmoniously integrating with an energy storage system. Its design focuses on three main objectives: maximizing output power, increasing self-consumption, and facilitating backup power supply. Thanks to intelligent load management and a wide battery voltage range, the entire system is highly flexible, allowing for customization to individual needs within the home ecosystem. Combining the inverter with the GoodWe Lynx Home F energy storage achieves a comprehensive and reliable solution.

Advantages of the GoodWe GW8KN-ET PLUS+ inverter:
Fanless design for quiet operation
Backup power supply with uninterrupted switching <10ms
Integration with smart home systems
Technical specifications of the GoodWe GW8KN-ET PLUS+ inverter:
Maximum input voltage (VOC): 1000VDC
MPPT voltage range: 200 - 850VDC
Nominal input voltage: 620VDC
Start-up voltage (VSTART): 180VDC
Maximum DC input current: 16 / 16ADC
Maximum short-circuit current: 21.2 / 21.2ADC
Maximum PV module power: 15 kWp
Number of input terminal pairs: 2
Number of MPPTs: 2
Nominal output power (W): 8000
Maximum apparent output power to utility grid (VA): 8800
Maximum apparent power from utility grid (VA): 15000
Nominal output voltage (V): 400 / 380, 3L / N / PE
Output voltage range (V): 0 ~ 300
Nominal AC grid frequency (Hz): 50 / 60
AC grid frequency range (Hz): 45 ~ 65
Maximum AC output current to utility grid (A): 13.5
Maximum AC current from utility grid (A): 22.7
Power factor regulation range: ~1 (adjustable from leading 0.8 to lagging 0.8)
Total harmonic distortion THD: <3%
DC disconnect: yes
Cooling: convection
External ports: RS485, CAN, WiFi
Display: LED indicators + application
Certifications: NC RfG
Enclosure protection rating: IP-66
Dimensions: 415 x 516 x 180 mm
Weight: 24 kg
Operating temperature: -35 to +60°C
Allowed relative humidity: 0 - 95% non-condensing
Maximum efficiency: 98.2%
EU efficiency: 97.5%
The GoodWe GW8KN-ET PLUS+ inverter represents a comprehensive solution for photovoltaic installations with energy storage systems, combining energy efficiency, configuration flexibility, and safe backup power supply.
