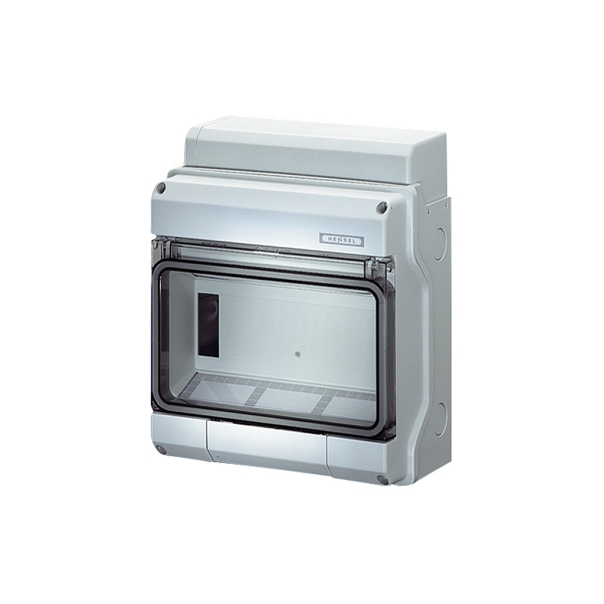

Modular distribution board HENSEL KV 8109

Small distribution boards for outdoor unprotected installations, such as the modular distribution board accommodating from 3 to 54 modules Model KV 8109, are ideal for applications requiring compact size and weather resistance. This particular distribution board is characterized by the absence of PE and N terminals, which is essential for the specific application and configuration of the installation. Advantages of the HENSEL KV 8109 distribution board: 1 row For mounting devices up to 63 A, 35 mm busbar With transparent doors Door lock and sealing set - additional equipment With cable glands Opening for circuit breakers With membrane glands for cable entry Degree of protection: IP 65 Color: grey, RAL 7035 Technical data of HENSEL KV 8109: Rated insulation voltage Ui = 400 V AC Heat dissipation capability Pde = 16 W according to PN 60670-24 Protection class: II Material: PS-polystyrene Width: 200 mm Height: 238 mm Depth: 111 mm Weight: 0.903 kg
