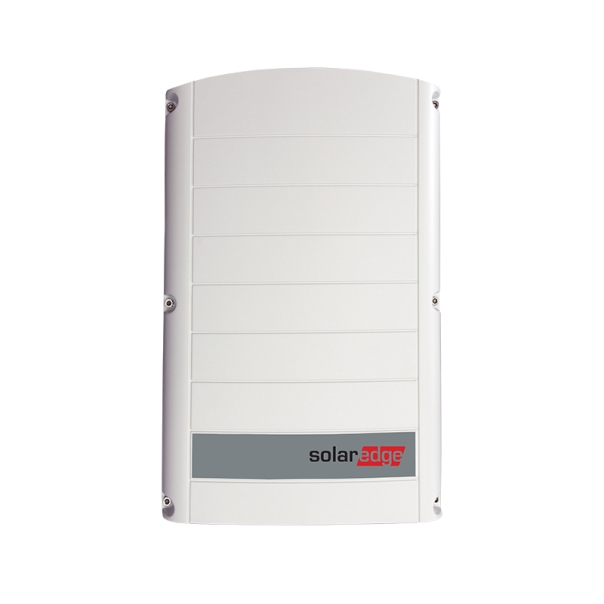

Solaredge SE5K-RWBTEBEN4
| Manufacturer |  |
Product prices only visible after login. If you do not have an account, please register.
Technical specifications
| Manufacturer | SOLAREDGE |
| Inverter type | On-grid |
| Inverter phases | 3 |
| Max. AC power | 5000 |
| Max. DC power | 6750 |
| Output power | 5000 |
| Circuit breaker value | 10 |
| MPPT | 1 |
| Amperage | 8.5 |
| WIFI | Tak |
| Ethernet | Yes |
| Compatible optimizers | Solaredge |
| Warranty | 12 |
| CN code number | 85044085 |
| Quantity per pallet | 12 |
| Country of origin | Israel |
| Weight | 26 |
| Width | 31 |
| Height | 54 |
| Depth | 26 |
Downloads
- Other
- Certyfikat-CE-62109-61000-50581-EN.pdf
File size: 240 KB
- Certyfikat-CE-62109-61000-50581-PL.pdf
File size: 250 KB
- Certyfikat-CE-safe-DC-60947-EN.pdf
File size: 247 KB
- Certyfikat-CE-safe-DC-60947-PL.pdf
File size: 327 KB
- Certyfikat-NC-RfG-EN.pdf
File size: 420 KB
- Certyfikat-NC-RfG-PL.pdf
File size: 493 KB
- Certyfikat-VDE4105-DE.pdf
File size: 376 KB
- Deklaracja-zgodności-CE-DE.pdf
File size: 240 KB
- Deklaracja-zgodności-CE-EN.pdf
File size: 282 KB
- Deklaracja-zgodności-CE-PL.pdf
File size: 256 KB
- G98-Certificate-of-Compliance-EN.pdf
File size: 517 KB
- Gwarancja-DE.pdf
File size: 67 KB
- Gwarancja-EN.pdf
File size: 166 KB
- Gwarancja-PL.pdf
File size: 383 KB
- Karta Katalogowa DE.pdf
File size: 295 KB
- Karta-Katalogowa-EN.pdf
File size: 292 KB
- Karta-Katalogowa-HU.pdf
File size: 200 KB
- Karta-Katalogowa-PL.pdf
File size: 172 KB
-
Variants
Product description
The SolarEdge SE5K-RWBTEBEN4 short-string inverter is a three-phase device characterized by high efficiency, designed for small and medium-sized photovoltaic installations. Thanks to its constant input voltage system, this SolarEdge inverter operates in the most efficient manner, regardless of the number of solar panels and current weather conditions. The combination of innovative digital technology with premium reliability are the distinctive features of the SolarEdge inverter.
Advantages of the SolarEdge SE5K-RWBTEBEN4 short-string inverter:
Greater design flexibility by providing significantly shorter strings for low-power three-phase photovoltaic systems
Preparedness for use with energy storage
Solution optimized for installations with complicated roofing
Built-in module-level monitoring enabling greater visibility of system performance
Excellent reliability with a standard 12-year warranty (extendable to 20 or 25 years)
Small size and mass, along with easy installation
Technical data of the SolarEdge SE5K-RWBTEBEN4 short-string inverter:
Maximum DC power: 6750 W
Maximum input voltage: 450 Vdc
Nominal input voltage DC: 375 Vdc
Maximum input current: 14 Adc
Reverse polarity protection: YES
Maximum inverter efficiency: 98%
Nominal AC current: 5000 VA
Maximum AC power: 5000 VA
AC - output voltage range - phase to neutral: 264.5 Vac
Maximum continuous output current (per phase): 8 A
Dimensions (height x width x depth): 540 x 315 x 260 mm
Weight: 27 kg
Operating temperature range: -40 to +60 degrees Celsius
SolarEdge is a global leader in intelligent energy technology. With world-class engineering expertise and a constant focus on innovation, the company creates intelligent energy solutions, driving our lives and shaping the future. Their intelligent inverter solution revolutionizes the way energy is harvested and managed in photovoltaic systems, maximizing electricity production and reducing costs. SolarEdge continues to develop intelligent energy, offering innovative solutions for photovoltaic installations, storage, electric vehicle charging, UPSs, and network services.
