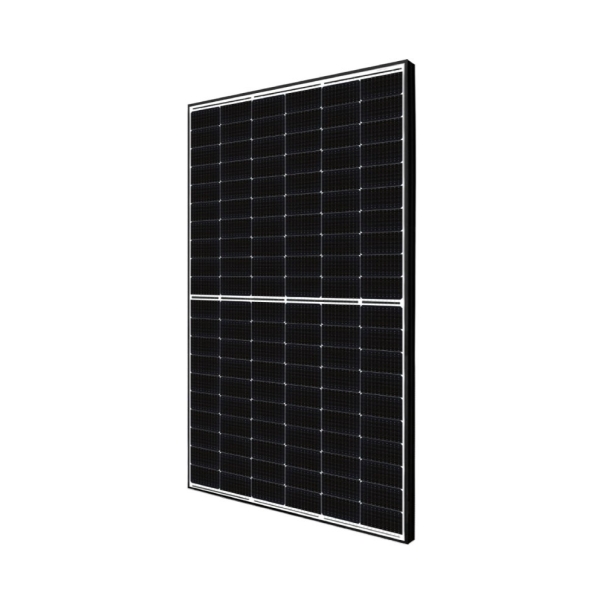

Canadian Solar TOPHiKu6 54TD 460W BF N-Type

The Canadian Solar TOPHiKu6 54TD 460W BF N-Type photovoltaic module is an advanced solution that provides high performance and reliability.

Advantages of the Canadian Solar CS6.1-54TD-460 photovoltaic module:
- Module efficiency: up to 23.0%
- Excellent anti-LeTID and anti-PID performance: The module is resistant to degradation caused by LeTID and PID, increasing its durability and reliability.
- Low power degradation: Features low power degradation, translating into high energy efficiency throughout the module's lifespan.
- Lower temperature coefficient (Pmax): -0.29%/°C, allows for increased energy yield in hot climates, crucial for high-temperature regions.
- High efficiency and low power degradation contribute to reducing the total cost of electricity and the photovoltaic system.
- The module's design minimizes the impact of micro-cracks, enhancing its durability and reliability.

Technical specifications of the Canadian Solar TOPHiKu6 54TD 460W BF N-Type:
Nominal maximum power (Pmax): 460 W
Optimal operating voltage (Vmp): 33.4 V
Optimal operating current (Imp): 13.78 A
Open circuit voltage (Voc): 39.3 V
Short circuit current (Isc): 14.69 A
Operating temperature range: -40°C to +85°C
Maximum system voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
Maximum series fuse rating: 25 A
Application class: Class A
Cell type: TOPCon cells
Cell layout: 108 [2 x (9 x 6)]
Dimensions: 1800 × 1134 × 30 mm (70.9 × 44.6 × 1.18 in)
Weight: 22.7 kg (50.0 lbs)
Front glass: 1.6 mm tempered glass with anti-reflective coating
Back glass: 1.6 mm tempered glass
Frame: Anodized aluminum alloy
Junction box (J-Box): IP68, 3 bypass diodes
Cable: 4 mm² (IEC), 12 AWG (UL)
Connector: T6, MC4, MC4-EVO2 or MC4-EVO2A
Cable length (including connector): Vertical: 350 mm (13.8 in) (+) / 250 mm (9.8 in), Horizontal: 1150 mm (45.3 in)*
